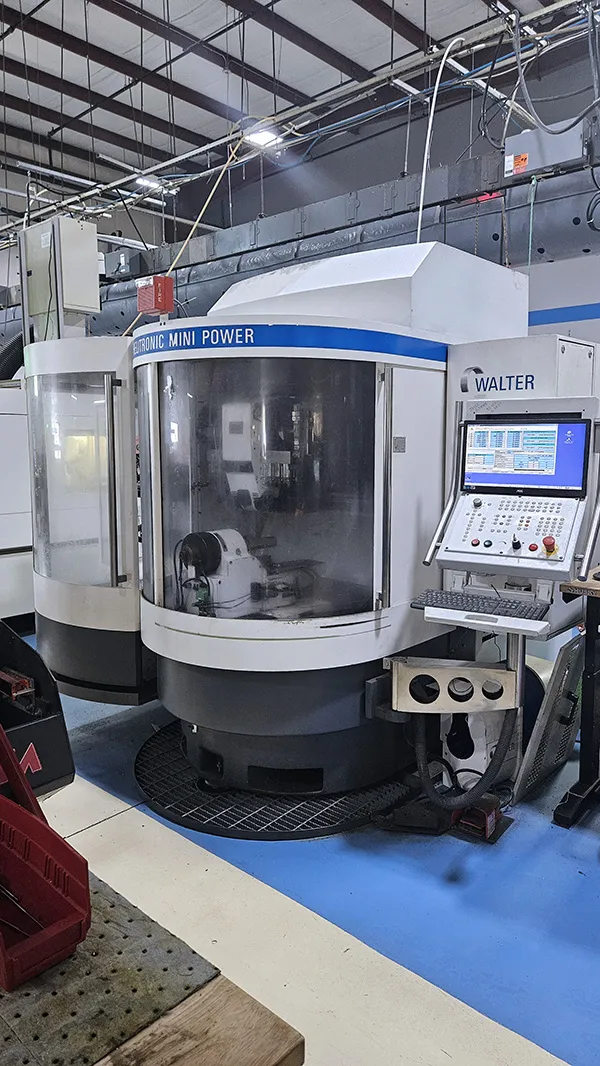

Walter Helitronic Mini 2007

Walter Helitronic Mini 2007 Play Icon
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
REQUEST QUOTE

Open price not currently available. Please Contact Us

  • MAKE: Walter

  • MODEL: Helitronic Mini

  • YEAR: 2007

  • TYPE: CNC Grinder

  • CONTROL: HMC 600

  • REF #: 3692031

RELATED TAGS: Walter Helitronic Mini 2007, Walter, Helitronic Mini, 2007 Walter, CNC Grinder, Grinders, CNC Grinders, CNC Cutters, Cutters, Walter Helitronic Mini Power, High pressure coolant, ATC, Pallet conveyer, New Y axis motor, New spindle motor and belt,

MACHINE SPECIFICATIONS

  • X-Axis Travel:

    320 mm

  • Y-Axis Travel:

    200 mm

  • Z-Axis Travel:

    470 mm

  • Rapid traverse speed X, Y, Z max:

    15 m/min

  • C axis:

    ± 200°

  • Linear resolution :

    0.0001 mm

  • Radial resolution:

    0.0001°

  • Max. grinding wheel diameter :

    150 mm

  • Grinding Spindle Speed:

    0 – 10,500 rpm

  • Maximum Tool Diameter:

    100 MM

  • Max. Workpiece Length:

    255 mm

  • Max. workpiece length, end face grinding:

    185 mm

  • Max. Workpiece Weight:

    30 kg

  • Min. tool diameter:

    1 mm

MACHINE EQUIPPED WITH

  • High pressure coolant
  • ATC
  • Pallet conveyer
  • New Y axis motor
  • New spindle motor and belt
  • Hydraulic steady rest
  • Fire suppression
  • Has upgraded software with tool studio
  • W25 collet chuck
  • W20 collect chuck
  • 4 wheel pack holders
  • Alignment bar and disc included
