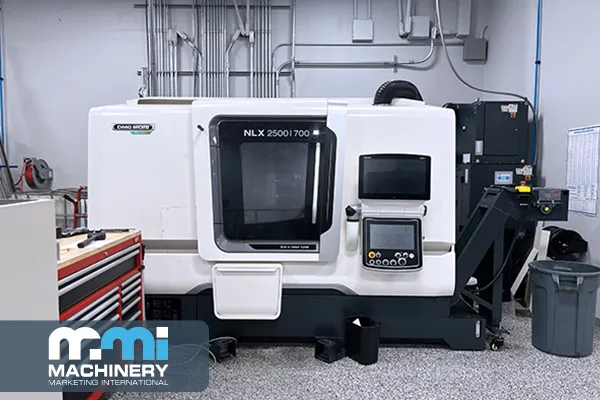

DMG Mori NLX2500SY/700 2022

MACHINE SPECIFICATIONS

• X - Axis Travel (inches):

  mm (in.) 260 (10.2)

• Y - Axis Travel (inches):

  mm (in.) 795 (31.3)

• Z - Axis Travel (inches):

  mm (in.) [±50 (±2.0)]

• RIGHT SPINDLE:

  mm (in.) [734 (28.9)]

• Swing over Bed:

  mm (in.) 920 (36.2)

• Swing over cross slide:

  mm (in.) 742 (29.2)

• X-Axis Travel:

  10.2"

• Y-Axis Travel:

  31.3"

• Z-Axis Travel:

  ±2.0"

• Bar Capacity:

  3.1"

• Through Spindle Hole Diameter:

  4.3 in.

• Rapid Traverse Rates X, Z:

  mm/min 30,000 (1,181.1)ipm

• Rapid Traverse Rate Y:

  m/min [10,000 (393.7)]ipm

• Rapid traverse B-axis:

  mm/min [30,000 (1,181.1)]ipm
