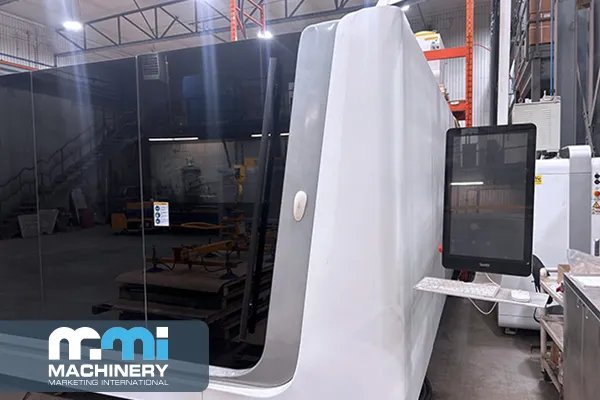

Bodor P4020 12kw Fiber 2022

Bodor P4020 12kw Fiber 2022
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
REQUEST QUOTE

Open price not currently available. Please Contact Us

  • MAKE: Bodor

  • MODEL: P4020 12kw Fiber

  • YEAR: 2022

  • TYPE: Fiber laser cutting system

  • CONTROL: Bodor Thinker 3.0

  • REF #: 3688211

RELATED TAGS: bodor laser, fiber laser, 12kw laser,

MACHINE SPECIFICATIONS

  • Working Area:

    157.48" x 78.74" (4000mm X 2000mm)

  • Positioning Accuracy:

    0.002" (0.05mm)

  • Max Moving Speed:

    6653.54 inch/min (169m/min)

  • Max Acceleration:

    2.5G

  • Cutting Head:

    7.874" (200mm)

  • Repeated Positioning Accuracy:

    0.0012" (0.03mm)

  • Laser Cutting Head Focal Length:

    7.874" (200mm)

  • Time of Shuttle Tables:

    16s

  • Table Loading Weight:

    5511.56 lbs (2500KG)

MACHINE EQUIPPED WITH

  • Bodor Thinker 3.0 Control
  • Maxphotonics MFSC 12000 Watt Fiber Resonator
  • Precitec Cutting Head
  • Chiller
  • Dust Collector
  • Transformer
  • Bodor Nesting Software (Installation/Training $87.00 per hour minus travel costs)
  • Dual Pallet Shuttle Table
  • Cooling Way: Water Cooling
