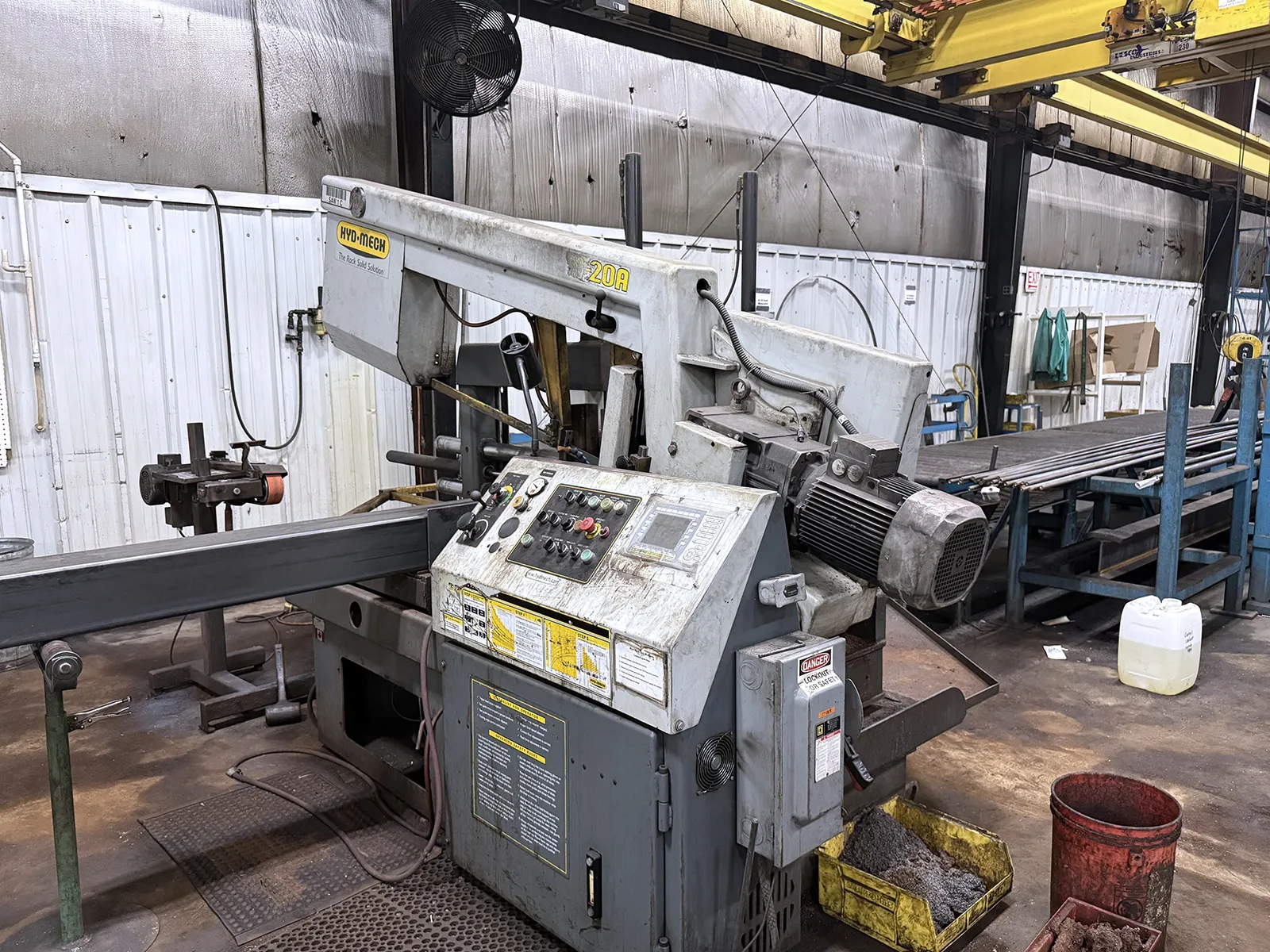

Hydmech M-20A

machine specifications

• Rectangular Capacity - 90°:

  20″ H × 30″ W

• Round Capacity- 90°:

  20″ diameter

• Rectangular at 45deg::

  20″ H × 19″ W

• Rectangular at 30deg:

  20″ H × 12″ W

• Round at 30deg:

  14″ diameter

• Blade Size:

  1½″ × 20′-6″ (≈ 41 mm × 6248 mm)

• Blade Drive:

  10 HP VFD (~7.5 kW)

• Blade Speed:

  50-350 SFM (≈ 15-106 m/min)

• Coolant Tank Capacity:

  9 US gallons (~34 L)

• Machine Weight:

  ~7,700 lbs (~3,500 kg) for a particular spec sheet variant.

• Table Height:

  ~32″ (~812 mm)

• Dimensions:

  (W × L × H): 129″ × 90″ × 66″ [from one spec sheet]

• Work load (for one spec sheet):

  ~3,628 kg (~8,000 lbs)

• Voltage:

  480 V
