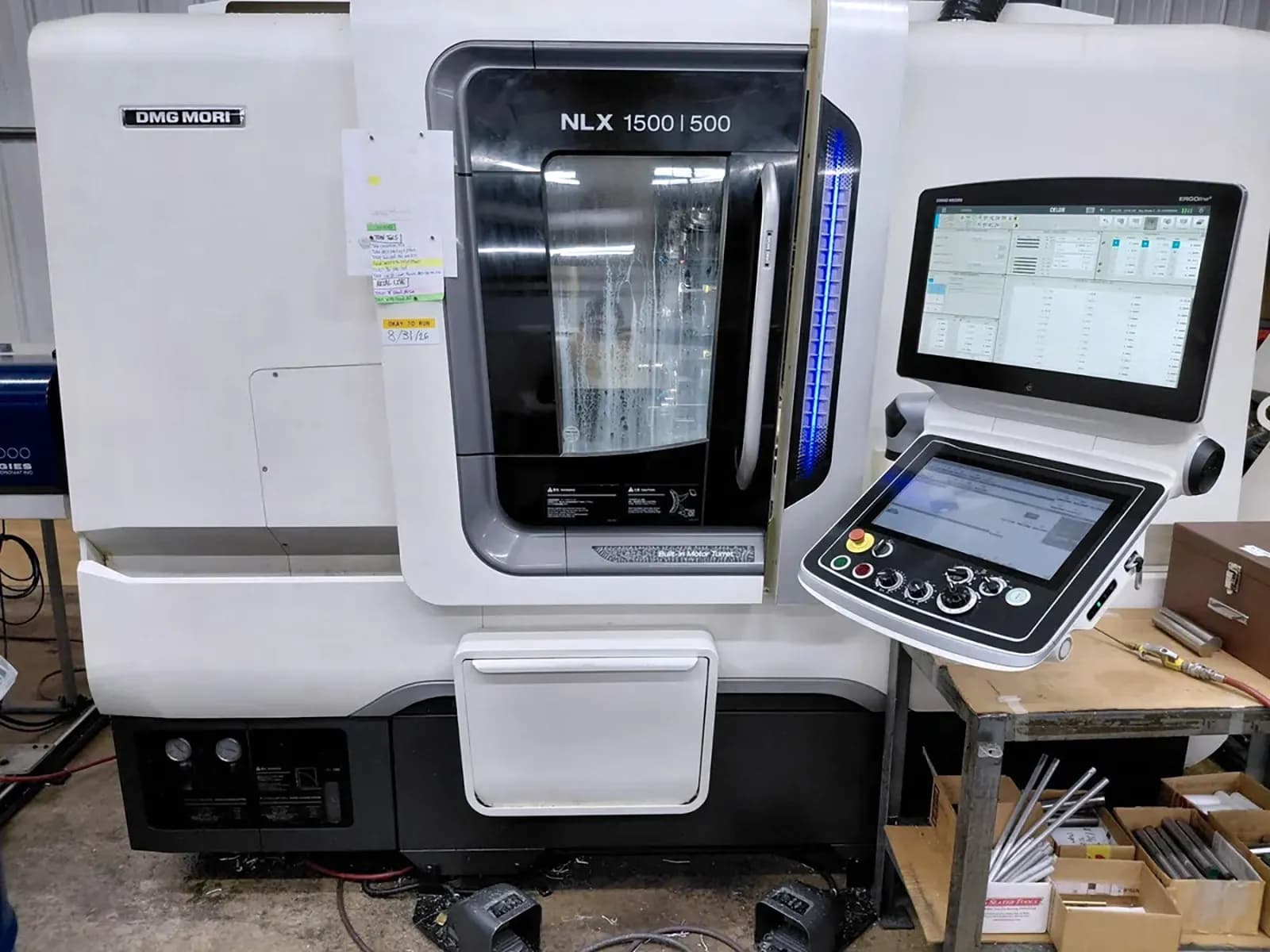

DMG Mori NLX-1500SY/500 2014
Equipped With

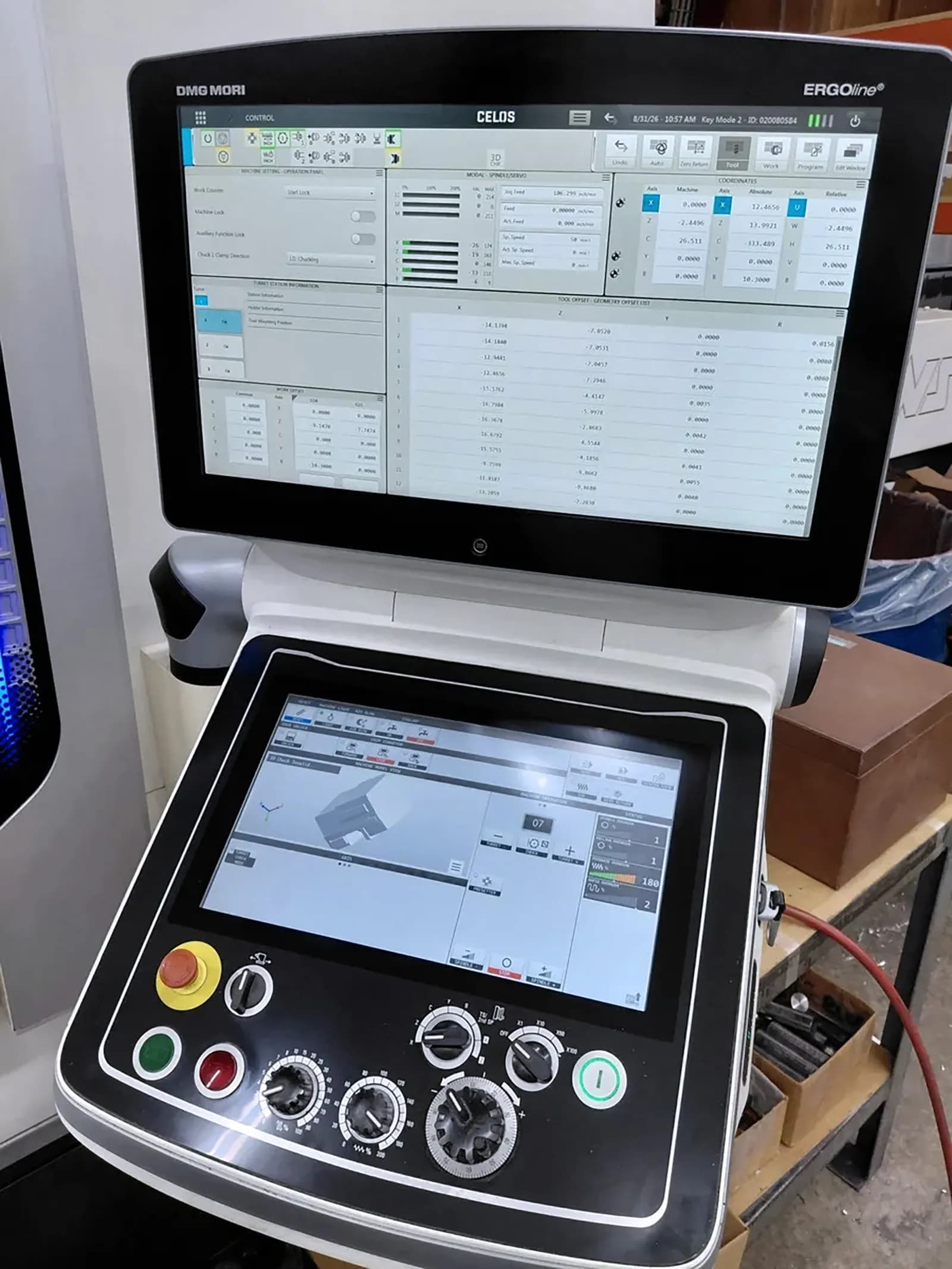

- CELOS CNC COLOR CONTROL WITH FNUC BACKGROUND

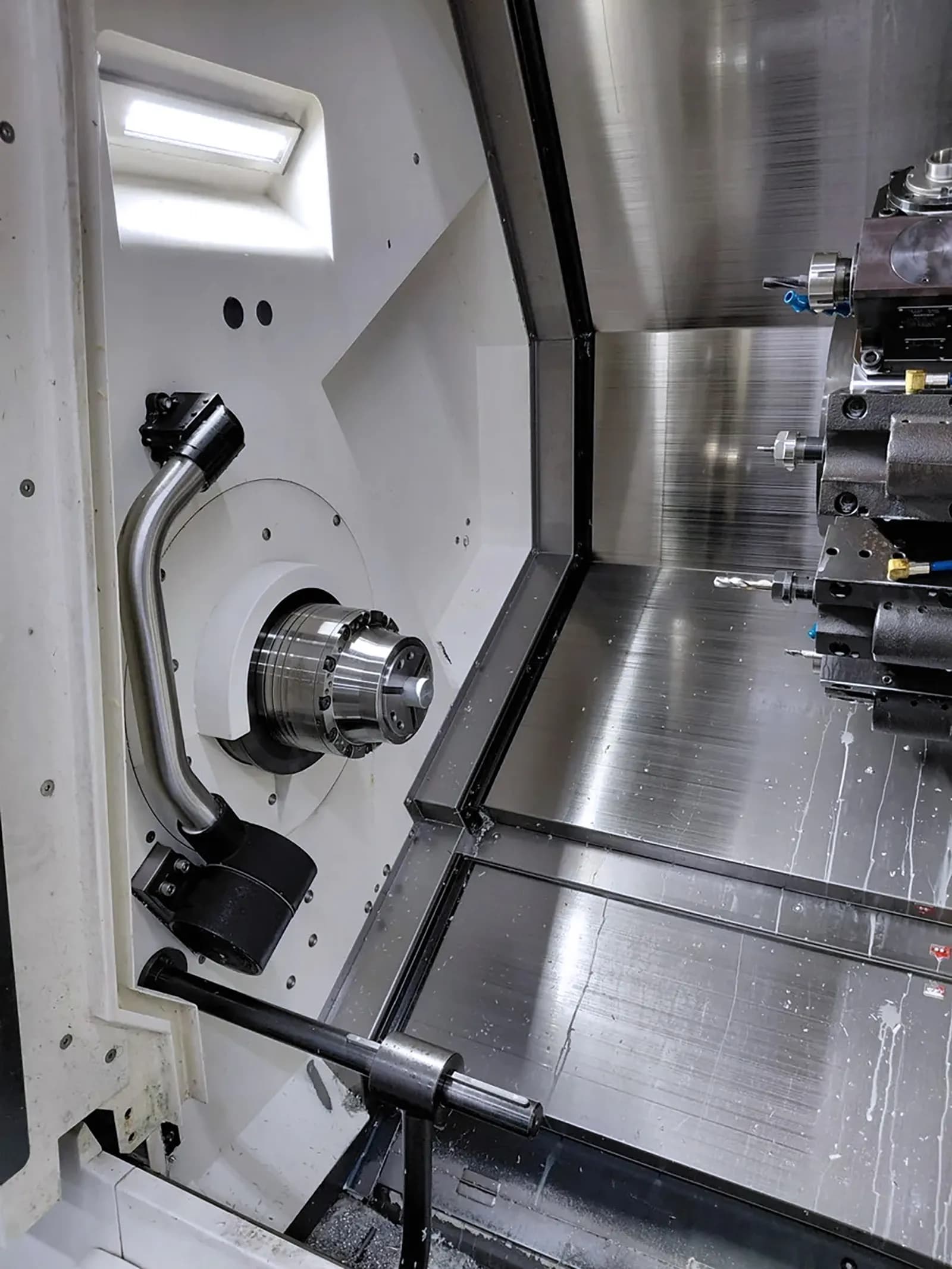

- 6" 3 JAW THRU HOLE HYDRAULIC CHUCK ON MAIN

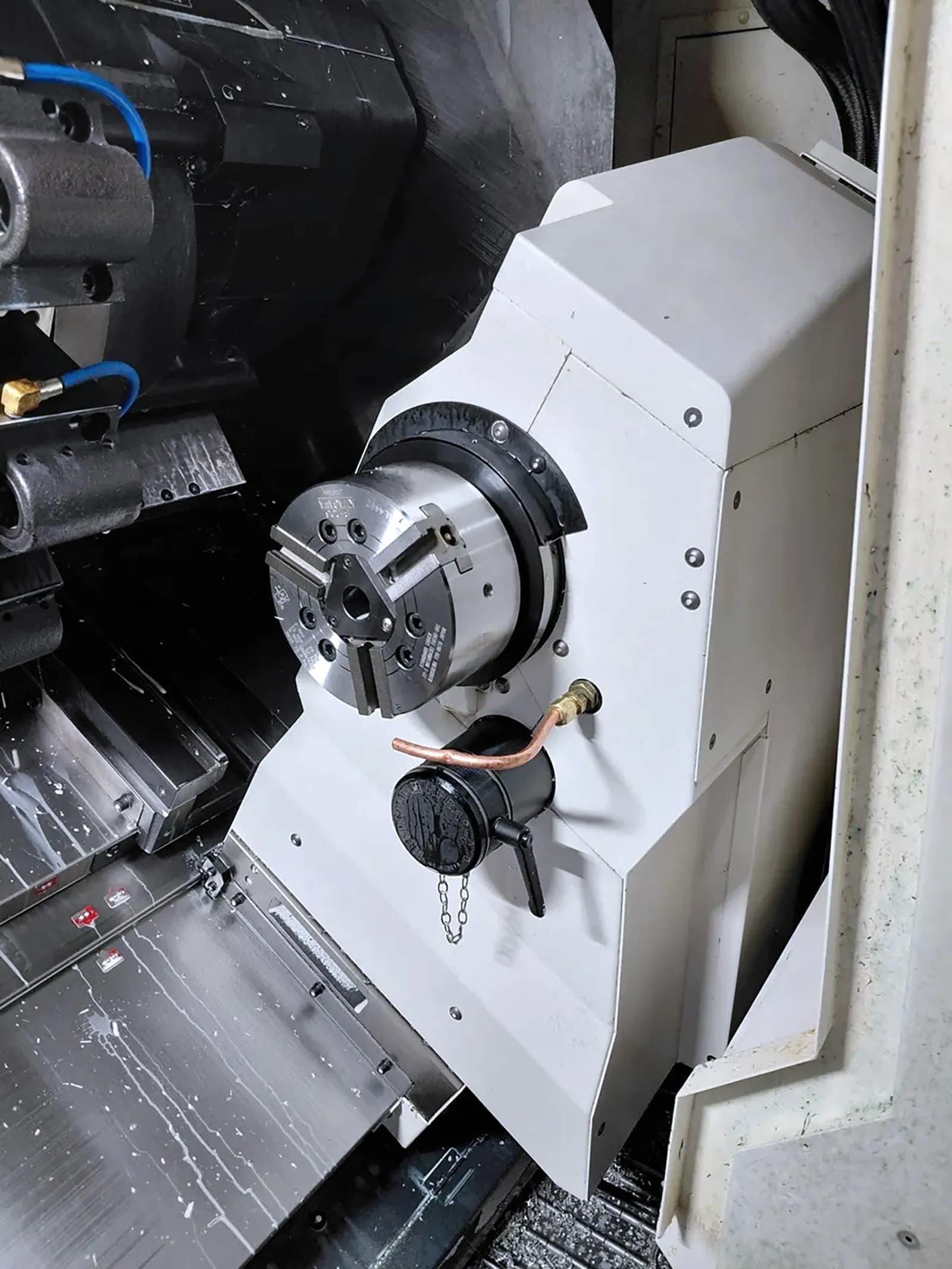

- 5" 3 JAW HYDRAUILC CHUCK ON SUB
- AUTO PARTS CATCHER
- CHIP CONVEYOR
- AUTO TOOL PRESETTER MAIN SPINDLE REMOVABLE TOOL SETTER SUB SPINDLE

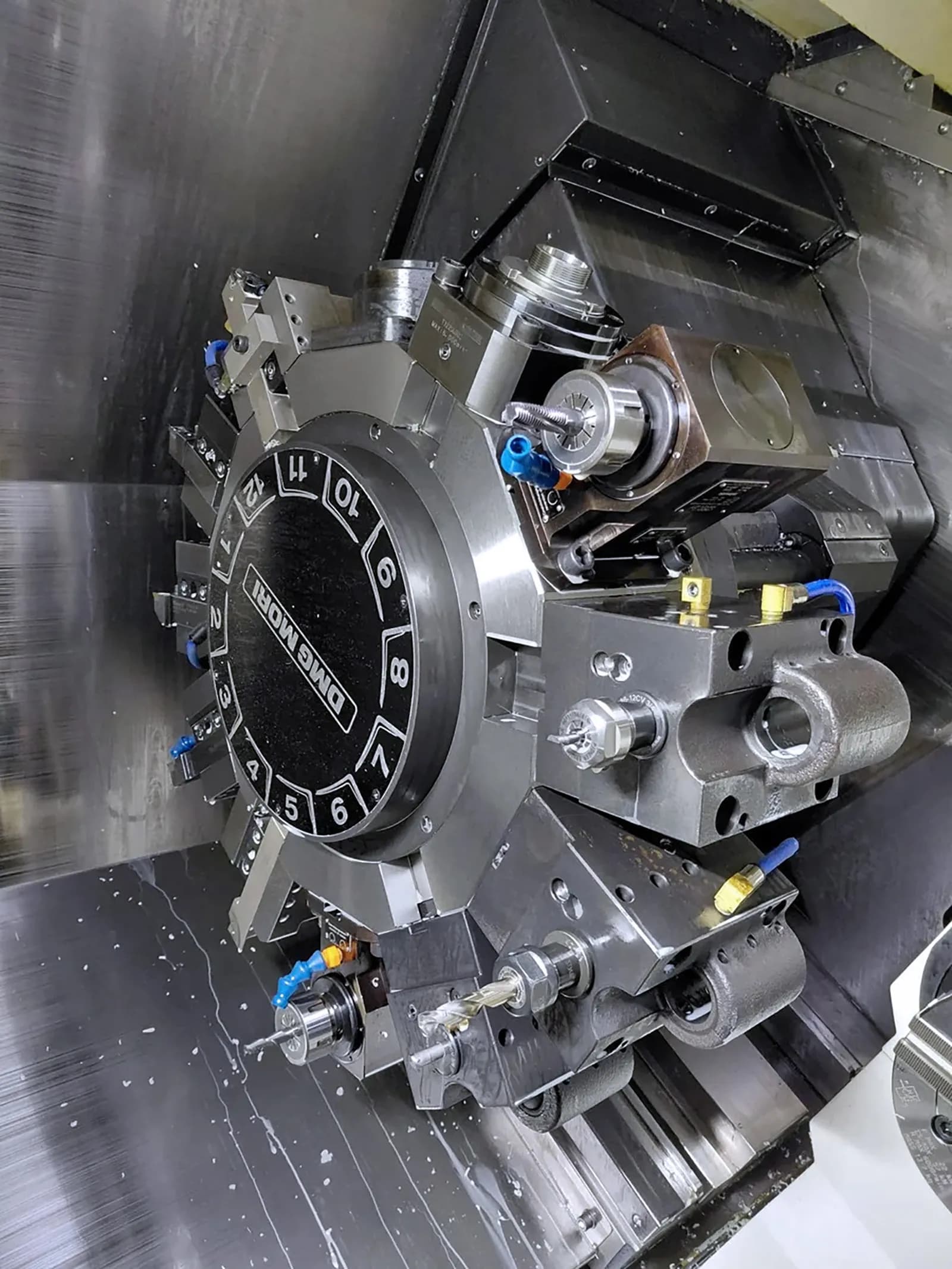

- BMT STYLE TURRET FOR ROTARY TOOLS
- (2) LIVE HOLDERS
- 1 AXIAL 1 RADIAL
- FULL COMPLIMENT OF STATIC TOOL HOLDERS
- ALL AVAILABLE MANUALS
- VERY LOW HOURS

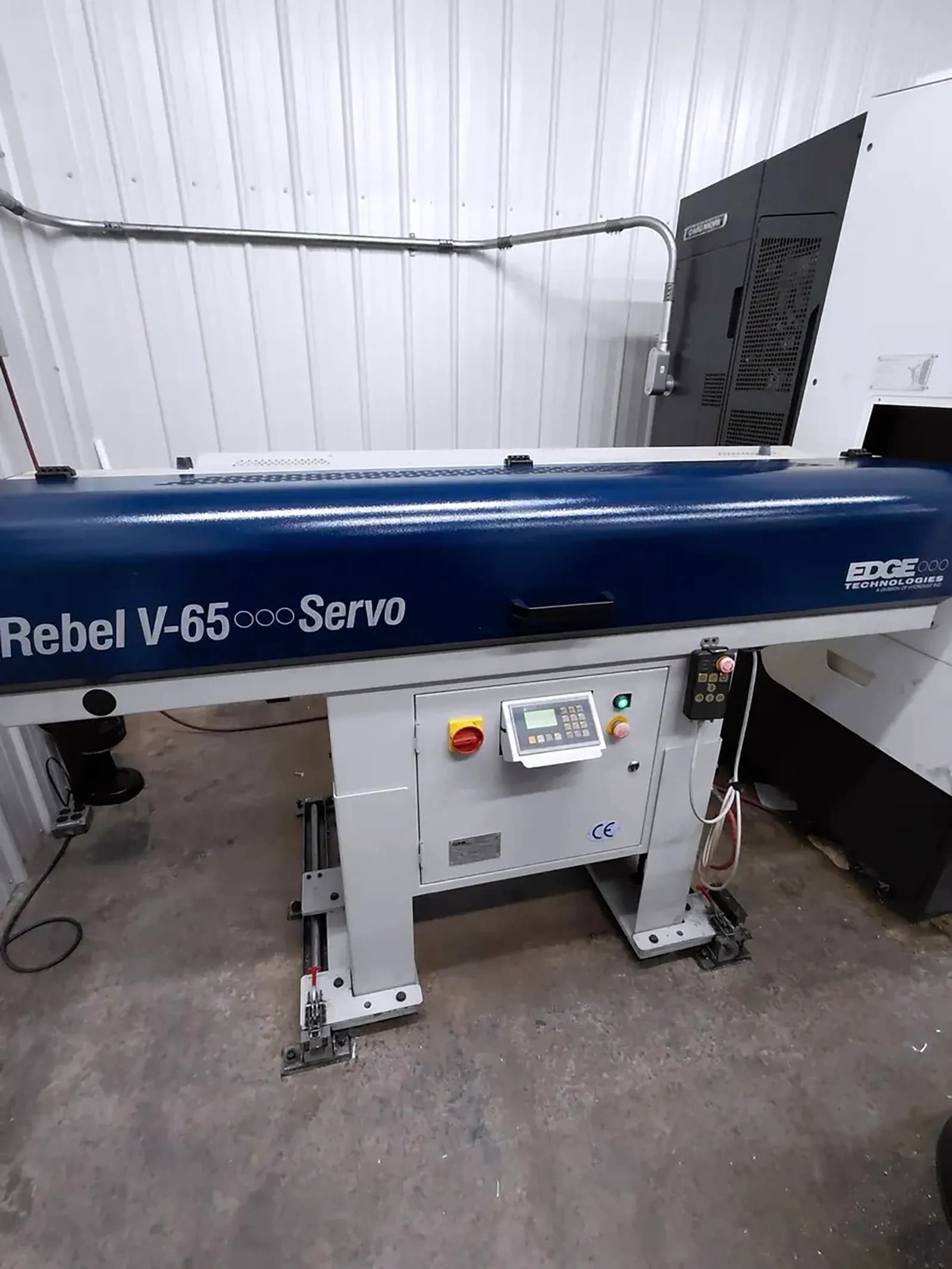

- EDGE TECH. REBEL V-65 SERVO SHORT MAGAZINE BAR FEED SYSTEM
Specifications
- Swing over Bed 25"
- Turning Diameter 14.4"
- Turning Length 20.2"
- Distance Between Spindles 24.6"
- Chuck Size 1 6"
- Spindle Nose 1 A2 - 5
- Spindle Bore Diameter 1 2.4"
- Bar Capacity 1 2"
- Spindle Speeds 1 6,000 RPM
- Spindle Horsepower 1 20 hp
- Chuck Size 2 5"
- Spindle Nose 2 A2 - 5
- Spindle Bore Diameter 2 1.7"
- Spindle Speeds 2 6,000 RPM
- Spindle Horsepower 2 15 hp
- X1 - Axis Travel 10.2"
- Z1 - Axis Travel 23.2"
- Y1 - Axis Travel 3.9"
- C - Axis Indexing 1 0.001
- C - Axis Indexing 2 0.001
- W - Axis Travel Sub Spindle 24.6"
- Rapid Traverse Rate - X1 1181 ipm
- Rapid Traverse Rate - Z1 1181 ipm
- Rapid Traverse Rate - Y1 393 ipm
- Turret Tool Positions 1 12 station
- Turret Rotary Tool Speeds 1 10,000 RPM
- Turret Rotary Tool Horse Power 1 7.5 hp
- Machine Weight 11,880 lb
- Control CNC
- Weight 11000.00
Machine Description
Boost your shop's productivity and scale fast with this used 2014 DMG MORI NLX 1500SY/500 CNC Lathe. This high-precision turning center delivers immediate multi-axis capability for aerospace, medical, and automotive manufacturing. Skip long factory lead times and upgrade your shop floor today. Fully operational and ready to ship—request a quote now!
