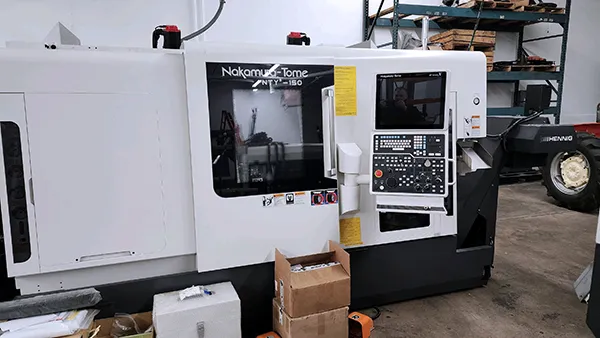

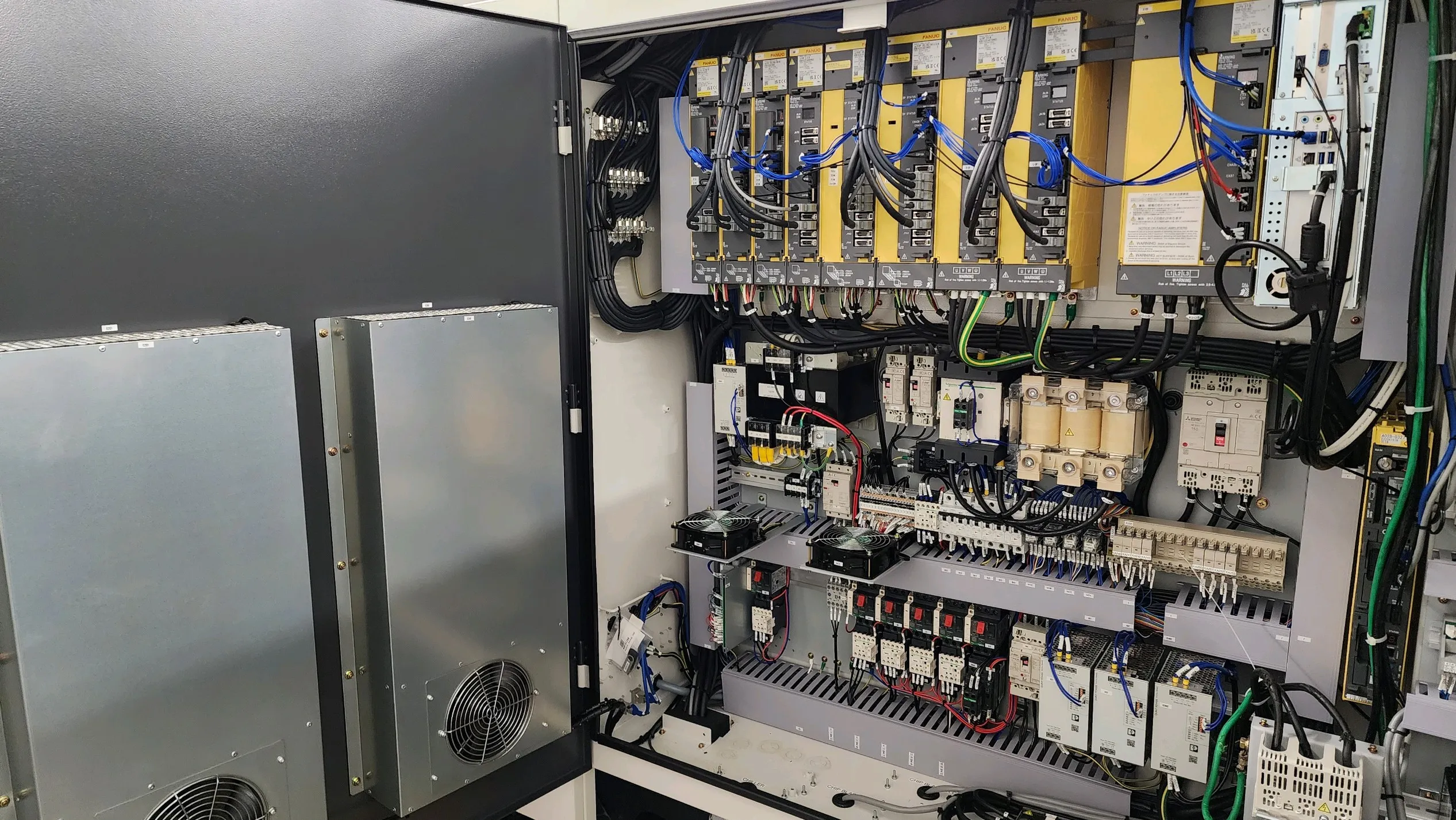

Nakamura Tome Super NTY3-150 2023

Nakamura Tome Super NTY3-150 2023 1
Nakamura Tome Super NTY3-150 2023 2
Nakamura Tome Super NTY3-150 2023 3
Nakamura Tome Super NTY3-150 2023 3
Nakamura Tome Super NTY3-150 2023 4
Nakamura Tome Super NTY3-150 2023 4
Nakamura Tome Super NTY3-150 2023 5
Nakamura Tome Super NTY3-150 2023 5
Nakamura Tome Super NTY3-150 2023 6
Nakamura Tome Super NTY3-150 2023 6
Nakamura Tome Super NTY3-150 2023 7
Nakamura Tome Super NTY3-150 2023 7
Nakamura Tome Super NTY3-150 2023 8
Nakamura Tome Super NTY3-150 2023 8
Nakamura Tome Super NTY3-150 2023 9
Nakamura Tome Super NTY3-150 2023 9
Nakamura Tome Super NTY3-150 2023 10
Nakamura Tome Super NTY3-150 2023 10
Nakamura Tome Super NTY3-150 2023 11
Nakamura Tome Super NTY3-150 2023 11
Nakamura Tome Super NTY3-150 2023 12
Nakamura Tome Super NTY3-150 2023 12
Nakamura Tome Super NTY3-150 2023 13
Nakamura Tome Super NTY3-150 2023 13
Nakamura Tome Super NTY3-150 2023 14
Nakamura Tome Super NTY3-150 2023 14
Nakamura Tome Super NTY3-150 2023 15
Nakamura Tome Super NTY3-150 2023 15
Nakamura Tome Super NTY3-150 2023 16
Nakamura Tome Super NTY3-150 2023 16
Nakamura Tome Super NTY3-150 2023 17
Nakamura Tome Super NTY3-150 2023 17
Nakamura Tome Super NTY3-150 2023 18
Nakamura Tome Super NTY3-150 2023 18
Nakamura Tome Super NTY3-150 2023 19
Nakamura Tome Super NTY3-150 2023 19
Nakamura Tome Super NTY3-150 2023 19
Nakamura Tome Super NTY3-150 2023 20
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Original Image
Logistics

LNS Sprint 565 S2 Bar Feeder, 5 Sets of soft jaws included, Chip Conveyor, Y-Axis on all 3 Turrets

  • Make: Nakamura Tome

  • Model: Super NTY3-150

  • Year: 2023

  • Control: - NT Smart X

  • Type: CNC Lathe

  • Reference: 3668441

Get Quote Make Offer Contact Us Sell Your Nakamura Tome
  • Hydrauic Tank Capacity (L+ R) 23 gal (87 L)
  • Capacity ----
  • Lubrication tank capacity 1.7 gal (6.8 L)
  • DISTANCE BETWEEN CENTERS (MAX / MIN) 38.1" / 7.87"
  • Coolant Tank Capacity 100 gal (380 L)
  • Max. turning dia 8.86"
  • Machine height 86.6 in
  • Std. turning dia 5.91"
  • Max Height 88.4 in
  • Max. turning length - Lower Turret 26.97"
  • Floor Space 150.1 x 87.3 in.
  • Bar Capacity Left Spindle 2.5"
  • Machine Weight 24,250 lb
  • Chuck Size 8"
  • Part Sizes 2.6" D x 5.9" L
  • X-axis thrust force (X1 / X2 / X3) 5300 / 5300 / 2000 N
  • Y-axis thrust force (Y1 / Y2 / Y3) 4600 / 4600 / 4500 N
  • Z-axis thrust force (Z1 / Z2 / Z3) 6000 / 6000 / 6000 N
  • X-axis (X1 / X2 / X3) 6.31 / 6.31 / 6.31"
  • Y-Axis (3.54 - Y1 / Y2) (2.75 - Y3) +/-45 / +/-45 / +/-35
  • Z-axis (Z1 / Z2 / Z3) 9.25 / 9.25 / 26.9"
  • B-Axis 30.31"
  • L-SPINDLE ----
  • Spindle Speed 4500 (min-1)
  • SPINDLE SPEED RANGE Stepless
  • Spindle Nose A2-6
  • Hole Through Spindle 3.15"
  • I.D. of front bearing 4.33"
  • HOLE THROUGH DRAW TUBE 2.59"
  • Spindle Center Height 50"
  • R-SPINDLE ----
  • Spindle Speed 5000 (min-1)
  • SPINDLE SPEED RANGE Stepless
  • Spindle Nose A2-5
  • Hole Through Spindle 2.55"
  • I.D. of front bearing 3.54"
  • HOLE THROUGH DRAW TUBE 2.047"
  • Max. programmable index angle +/- 9999.999 degree
  • Least input increment 0.001 degree
  • LEAST COMMAND INCREMENT 0.001 degree
  • Rapid Index Speed 600 min-1
  • Cutting Feed Rate 1 – 4800 degree/min
  • Index accuracy 40 sec.
  • Repeatability less than +/- 25 sec
  • SIMULTANEOUSLY CONTROLLED AXIS 3 (X+Z+C) axis
  • UPPER TURRET (L/R) ----
  • Turret head type Dodecagonal drum
  • Number of tool stations (Each turret) 12 Stations
  • Number of index position(Each turret) 24 Positions
  • TOOL SIZE - SQUARE 1.00 in
  • TOOL SIZE - ROUND 1.250 in
  • Index time - half round 0.7 sec
  • INDEX TIME - 1 STATION 0.3 sec
  • Turret head outside diameter 13.39 in
  • Thickness 3.15 in
  • Clamping Force 21 kN
  • Index Mechanism Servo motor
  • Clamping mechanism (1.77") Curvic
  • TOOLING CLEARANCE 21.46 in.
  • LOWER TURRET (L) ----
  • Turret head type Dodecagonal drum
  • Number of tool stations (Each turret) 12 Station
  • Number of index position (Each turret) 24 Position
  • TOOL SIZE - SQUARE 1 in
  • TOOL SIZE - ROUND 1.25 in
  • Index time - half round 0.7 sec
  • INDEX TIME - 1 STATION 0.3 sec
  • Turret head outside diameter 13.39 in
  • Thickness 3.15 in
  • Clamping Force 21 kN
  • Index Mechanism Servo Motor
  • Clamping mechanism 5.70" diameter Curvic
  • TOOLING CLEARANCE 21.46 in
  • Rotating tool (Upper L/R and Lower L)
  • Number of rotating tool stations (Each turret) 12
  • Rotating Tool Speed 8,000 min-1
  • Rotating tool speed range Stepless
  • Max. rotating tool shank - straight drill 0.75 in
  • Max. rotating tool shank - cross drill 0.75 in
  • Saddle Construction 60 degree
  • Ball screw pitch – X Axis 10 / 10 / 10 mm
  • Ball screw pitch – Y Axis 6 / 6 / 6 mm
  • Ball screw pitch – Z Axis 16 / 16 / 16 mm
  • Distance between Slides Width of base support
  • X1 / X2 / X3 284 / 284 / 284 mm
  • Y1 / Y2 / Y3 235 / 235 / 235 mm
  • Z1 / Z2 / Z3 355 / 355 / 355 mm
  • B2 225 mm
  • Rapid Traverse ----
  • X1 / X2 / X3 787 ipm (20,000 mm/min)
  • Y1 / Y2 / Y3 314 ipm (80,000 mm/min)
  • Z1 / Z2 / Z3 1574 ipm (40,000 mm/min)
  • B2 1574 ipm (40,000 mm/min)
  • Cutting Feed Rate ----
  • X1 / X2 / X3 189 ipm (1 - 4,800 mm/min)
  • Y1 / Y2 / Y3 189 ipm (1 - 4,800 mm/min)
  • Z1 / Z2 / Z3 189 ipm (1 - 4,800 mm/min)
  • B2 189 ipm (1 - 4,800 mm/min)
  • JOG FEED ----
  • X1 / X2 / X3 50 ipm (0 - 1,260 mm/min)
  • Y1 / Y2 / Y3 50 ipm (0 - 1,260 mm/min)
  • Z1 / Z2 / Z3 50 ipm (0 - 1,260 mm/min)
  • B2 50 ipm (0 - 1,260 mm/min)
  • DRIVE MOTOR -----
  • Left spindle (S3 : 25% / S1 : CONT) 20 / 15 HP (15 / 11 kW)
  • Right spindle (S3 : 25% / S1 : CONT) 20 / 15 HP (15 / 11 kW)
  • Rotating tool spindle (S3 : 15% / S1 : CONT) 7.5 / 5 HP (5.5 / 3.7 kW)
  • X1 / X2 / X3 3.3 / 3.3 / 3.3 HP (2.5 / 2.5 / 2.5 kW)
  • Y1 / Y2 / Y3 Y1 / Y2 / Y3
  • Z1 / Z2 / Z3 4.0 / 4.0 / 4.0 HP (3 / 3 / 3 kW)
  • B2 2.4 HP (1.8 kW)
  • Index 1.6 HP (1.2 kW)
  • Hydraulic Pump 2.9 + 2.0 HP (2.2 + 1.5 kW)
  • Lubrication Pump 0.02 HP (0.017 kW)
  • Coolant Pump 1 HP (815w x 3 kW)
  • Power Requirement Power supply 52.4 KVA
  • Tank Capacity ----
  • PUMP DELIVERY ----
  • Hydraulic pump delivery (L+R) 14.5 gal / min (55 L / min)
  • Hydraulic pump delivery pressure 3.5 MPa
  • Lubrication pump delivery 6.9 cm3 / 6 min
  • GENERAL -----
  • Factory Warranty Included
  • LNS Sprint 565 S2 Bar Feeder
  • LNS ChipBlaster V-Series
  • Chip Conveyor

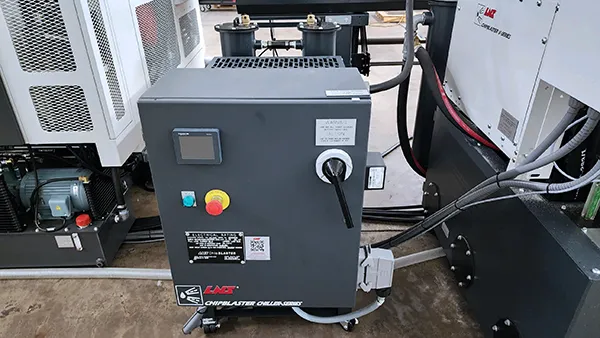

  • LNS ChipBlaster Chiller Series
  • Y-Axis on all 3 Turrets
  • Mounted on Right Spindle Side
  • 5 Sets of soft jaws included
  • Drive Hydraulic and Air
  • Tool Setter
  • Manual Detachable Type
  • Finger Gripper
