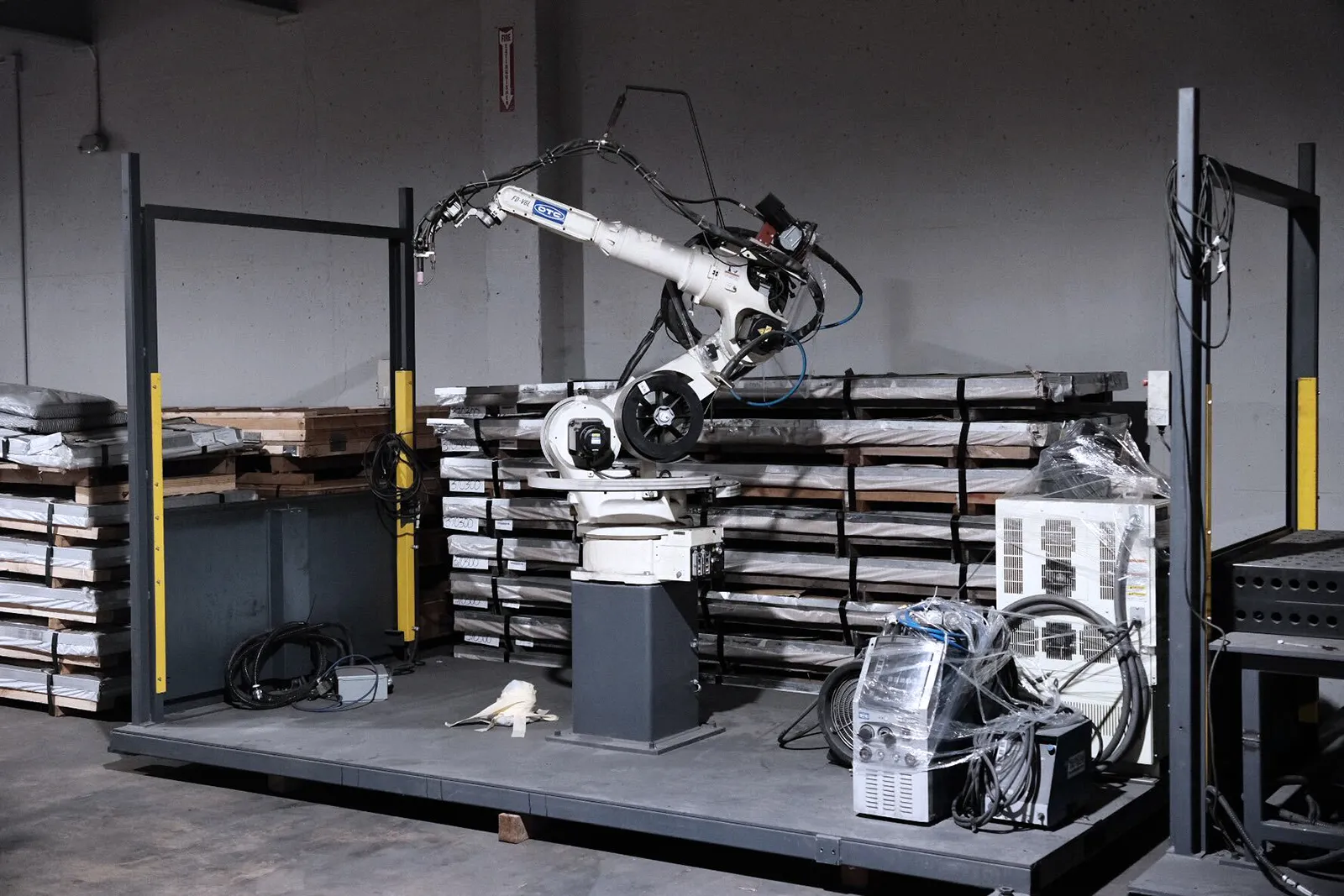

OTC Tig Robotic CNC Welding Cell 2017_3706086

OTC FD-V6L 2016

request quote

$34,500.00 Listing Price

  • MAKE: OTC

  • YEAR: 2016

  • TYPE: N/A

machine specifications

  • Advanced PLC functions allow for ladder diagram editing directly through the teach pendant:

  • Standard touch screen display with jog dial operation:

  • On‐screen help function with complete instruction manuals:

  • Multi‐screen function allows user to view up to 4 screens simultaneously:

  • 3 position enable switch provides increased safety:

  • 640x480 VGA color screen with LED backlight color display:

  • Icon displays assist in quick & easy teaching:

  • Teach Pendant:

  • Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections:

  • Offers a wide working range with an independently articulated arm:

  • Large memory capacity and 40 Input / 40 Output control signals:

  • Windows XP based open architecture:

  • FD11 Robot Controller:

  • Highly versatile design supports most welding applications:

  • Single source technology – all components are manufactured by OTC DAIHEN:

  • Built‐in mechanical shock sensor:

  • Improved vibration restraining control provides smooth robot movement.:

  • Seamless digital connection with all OTC DAIHEN brand welding power supplies:

machine equipped with

  • ***PLEASE NOTE*** only including one of the part holders (the black rectangular block with holes) that sit on the 2 work station tables
  • Welding Cell Included
  • 1 ECO-ARC 200L Mechanical Assy
  • ~ Common Base
  • Robot Pedestal (800mm)
  • ~ Center Divider and Integrated Trailer Assembly
  • ~ Two (2) Stationary Tables 62" x 24"
  • Positioned at 90 Degrees Apart
  • ~ Floor Plate
  • ~ Pnuematic Shutter Door Assembly @
  • Operator Load/Unload
  • 1 Zone Kit Assembly
  • ~ 2-Station Zone Kit
  • 1 Pneumatic Assembly - Shutter Doors
  • 1 Troax Safety Fence Assembly
  • ~ Mounted to Common Base
  • ~ Safety-Interlocked Door Switch Assembly
  • 1 Mechanical Assy Kit
  • 1 ECO-ARC 200L Electrical Assy
  • ~ Junction Boxes
  • E-Stop Safety Circuit
  • ~ Standard Robot Operation & Start Boxes
  • Robot Module Included
  • 1 Robot Manipulator NV6L2-NEFU
  • 1 Control Unit (Including Relay Unit) FD11-UV0000
  • 1 Teach Pendant ( Cable length 8m ) FDTPDDJU-2L08
  • 1 Operation Box (Cable length 10m) FDOP-1005
  • 1 Start Box (5m) FDST-1005
  • 1 10kVA Transformer Upgrade 4810-D018
  • 1 Cable
  • Step Down Transformer 1E0392A00
  • 1 External Memory (USB) L21700U00
  • Welding Power Supply Included
  • 1 Welding Power Supply DA-300P
  • 1 Interface Board L20365A
  • Tig Fusion Kit Included
  • 1 Control Cables (5m) FDRB-5105
  • 1 Welding Torch TIG MWXC-3501
  • 1 Torch Bracket L7642B00
  • 1 Torch Gauge Assy L7643B00
  • 1 Tip Gauge Assy L7642C00
  • 1 Adaptor Cable L6635B00
  • 1 Shock Sensor Cable L22166B00
  • 1 Linekeeper 1L0271B01
  • 1 TIG Filler control unit HC-71D-E2487
  • 1 CAN I/F (for DA-300) L9129C00
  • 1 CAN I/F (for HC-71D) L9129C00
  • 1 CAN Comunication Cable BKCAN-0401
  • 1 Bracket for Wire Feed Unit L10678A
  • 1 Cable Hanger L6532B00
  • 1 Power Cable Hose ( 6m ) L-7633E
  • 1 Torch Adaptor BBAWD-1801
  • 1 Welding Power Cable (Ground side) L9155D00
  • 1 Gas Hose BKGFF-0603
  • 1 Control Cable (4) L21245B
  • 1 Coolmate Type 4 042288
  • 1 Cable Core L4193X00
  • 1 Adaptor AW404
  • 1 Adaptor AW406
  • Tig Filler .035/0.9mm Steel Kit Included
  • 1 Wire Feed Unit (Steel / SUS) AFT-4211
  • 1 Wire Reel Unit L10675A
  • 1 Conduit (Steel / SUS) L10597D00
  • 1 Bracket Assy L7640B00
  • 1 Conduit Lock(1) (0.8-1.2mm) L7724P00
  • 1 Wire Guide Body (Steel / SUS) L7724R00
  • 1 Guide Tip 20deg (1) (Steel / SUS 0.8-1.2) L7724B01
  • 1 Tip (2) (Steel / SUS) (0.9mm) L7726B02
  • 1 Conduit (1) (0.8-0.9mm) L7318B00
