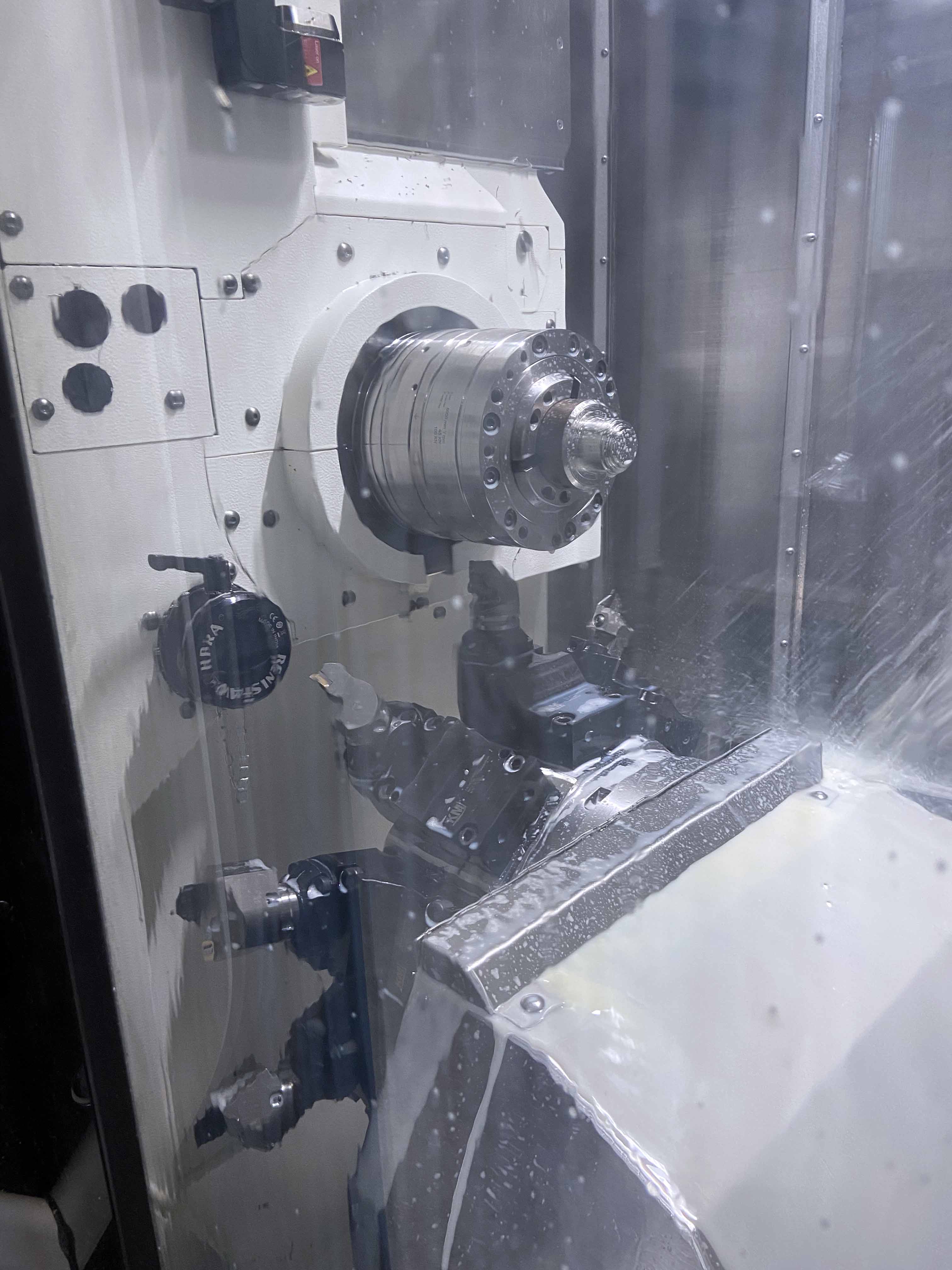

DMG Mori NTX 1000 2020

MACHINE SPECIFICATIONS

• Max Turning Diameter:

  16.9"

• Max Turning Length:

  31.5"

• Max Bar Capacity:

  2.6"

• Swing over cross slide:

  17.7"

• Distance Between Spindles:

  41.3"

• Axis Travel X1/X2:

  17.9"/ 6.2"

• Y Axis Travel:

  +/- 4.53"

• Z1 & Z2-Axis Travels:

  31.4" / 28.7"

• B Axis Travel:

  240 Degree

• C axis:

  360 Degree (0.001)

• Rapid Traverse Rate (X/Y/Z):

  1574.8 / 1574.8 / 1968.5 Inch Per Minute

• Main Spindle Nose:

  A2-6

• Main Spindle Bore:

  2.5"

• Main Spindle Speed:

  5000 RPM

• Main Spindle Motor:

  15 HP

• Main Spindle Chuck:

  8"

• Sub Spindle Nose:

  A2-6

• Sub Spindle Bore:

  2.0"

• Sub Spindle Speed:

  6000 RPM

• Sub Spindle Motor:

  15 HP

• Sub Spindle Chuck:

  6"

• Milling Spindle Taper:

  Capto C5

• Milling Spindle Speed:

  20,000 RPM

• Tool Storage Capacity:

  76 tools

• Overall Dimensions:

  178.5" x 100.1" x 101.8" High

• Lower Turret Capacity:

  10 tools

• Weight:

  25,353 lbs Approx.

• Lower turret Max. Milling speed:

  10,000 RPM
