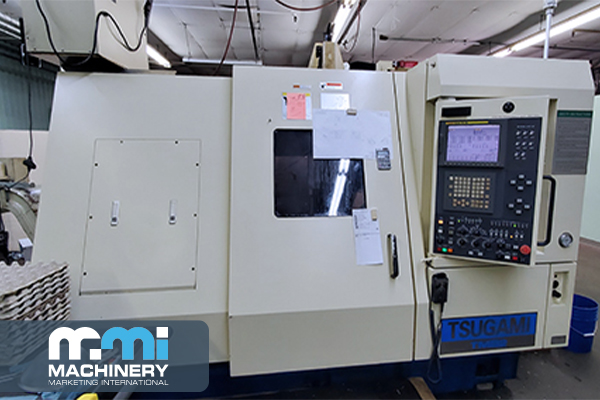

Tsugami TMB2 2008

MACHINE SPECIFICATIONS

• Max Turning Diameter:

  2"

• Max Turning Length:

  30"

• Bar Capacity:

  2"

• Main Spindle Speed:

  6000 rpm

• Main Spindle Bore:

  2.007

• Sub Spindle Speed:

  6000 rpm

• Primary Tool Carrier:

  30 Turning & Rotary Tools

• Primary Tool Carrier Shank Size:

  Square: 0.750", Round: 0.750", Rotary: 1.250"

• Rotary Tool Spindle Speed:

  10,000 rpm

• Second Tool Carrier Max Turning Tools:

  16

• Second Tool Carrier Max Rotary Tools:

  16

• # of Simultaneous Cutting Tools:

  2

• Number of Axes: Standard:

  6

• A2 Axis Travel:

  31.496"

• A2 Axis Rapid Feedrate:

  1,572 ipm

• X1 Axis Travel:

  14.96"

• X1 Axis Rapid Feedrate:

  945 ipm

• X2 Axis Travel:

  5.118"

• X2 Axis Rapid Feedrate:

  945 ipm

• Y1 Axis Travel:

  4.33"

• Y1 Axis Rapid Feedrate:

  945 ipm

• Z1 Axis Travel:

  22.04"

• Z1 Axis Rapid Feedrate:

  1,572 ipm

• Z2 Axis Travel:

  31.496"

• Z2 Axis Rapid Feedrate::

  1,572 ipm
