Kitako MT4-200 2006

Sold Image

CNC Multi-Spindle Lathe Kitako MT4-200 2006 1

CNC Multi-Spindle Lathe Kitako MT4-200 2006 2

CNC Multi-Spindle Lathe Kitako MT4-200 2006 3

CNC Multi-Spindle Lathe Kitako MT4-200 2006 4

CNC Multi-Spindle Lathe Kitako MT4-200 2006 5

CNC Multi-Spindle Lathe Kitako MT4-200 2006 6

CNC Multi-Spindle Lathe Kitako MT4-200 2006 7

CNC Multi-Spindle Lathe Kitako MT4-200 2006 8

CNC Multi-Spindle Lathe Kitako MT4-200 2006 9

CNC Multi-Spindle Lathe Kitako MT4-200 2006 10

CNC Multi-Spindle Lathe Kitako MT4-200 2006 11

CNC Multi-Spindle Lathe Kitako MT4-200 2006 12

CNC Multi-Spindle Lathe Kitako MT4-200 2006 13

CNC Multi-Spindle Lathe Kitako MT4-200 2006 14

CNC Multi-Spindle Lathe Kitako MT4-200 2006 15

CNC Multi-Spindle Lathe Kitako MT4-200 2006 16

CNC Multi-Spindle Lathe Kitako MT4-200 2006 17

CNC Multi-Spindle Lathe Kitako MT4-200 2006 18

CNC Multi-Spindle Lathe Kitako MT4-200 2006 19

CNC Multi-Spindle Lathe Kitako MT4-200 2006 20

Kitako MT4-200 2006 21

Kitako MT4-200 2006 22

Kitako MT4-200 2006 23

Kitako MT4-200 2006 24

Kitako MT4-200 2006 25

Kitako MT4-200 2006 26

Kitako MT4-200 2006 27

Kitako MT4-200 2006 28

Kitako MT4-200 2006 29

Kitako MT4-200 2006 30

Kitako MT4-200 2006 31

Kitako MT4-200 2006 32

Kitako MT4-200 2006 33

Kitako MT4-200 2006 34

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

MAKE: Kitako
MODEL: MT4-200
YEAR: 2006
TYPE: CNC Multi-Spindle Lathe
CONTROL: Fanuc 18Ti
REF #: 2946029

MACHINE SPECIFICATIONS

Spindle Speed:

4,000 RPM
8 Station Drum Turrets with coolant Thru Tools:

2 Nos
No. of Spindles:

4 (2 Turning, 2 Loading/unloading)
Spindle Nose:

A2-6
Spindle Drive Motor:

20 HP
Carrier Index:

2.5sec/180degree, 2sec/90degrees
Dia Curveic Coupling:

28.35" w/ 10,780 lbs Clamping Force

MACHINE EQUIPPED WITH

Box Slideways for X & Z axis
Chip Air Blow devices for loading chucks - 2 Nos
Chip Conveyor
High Pressure Coolant (100PSI)
Multiple Repetitive Cycles
G70 - G76
Tool Life Management
Tool Geometry Offset
2 Spindle Orientation for the loading Spindles

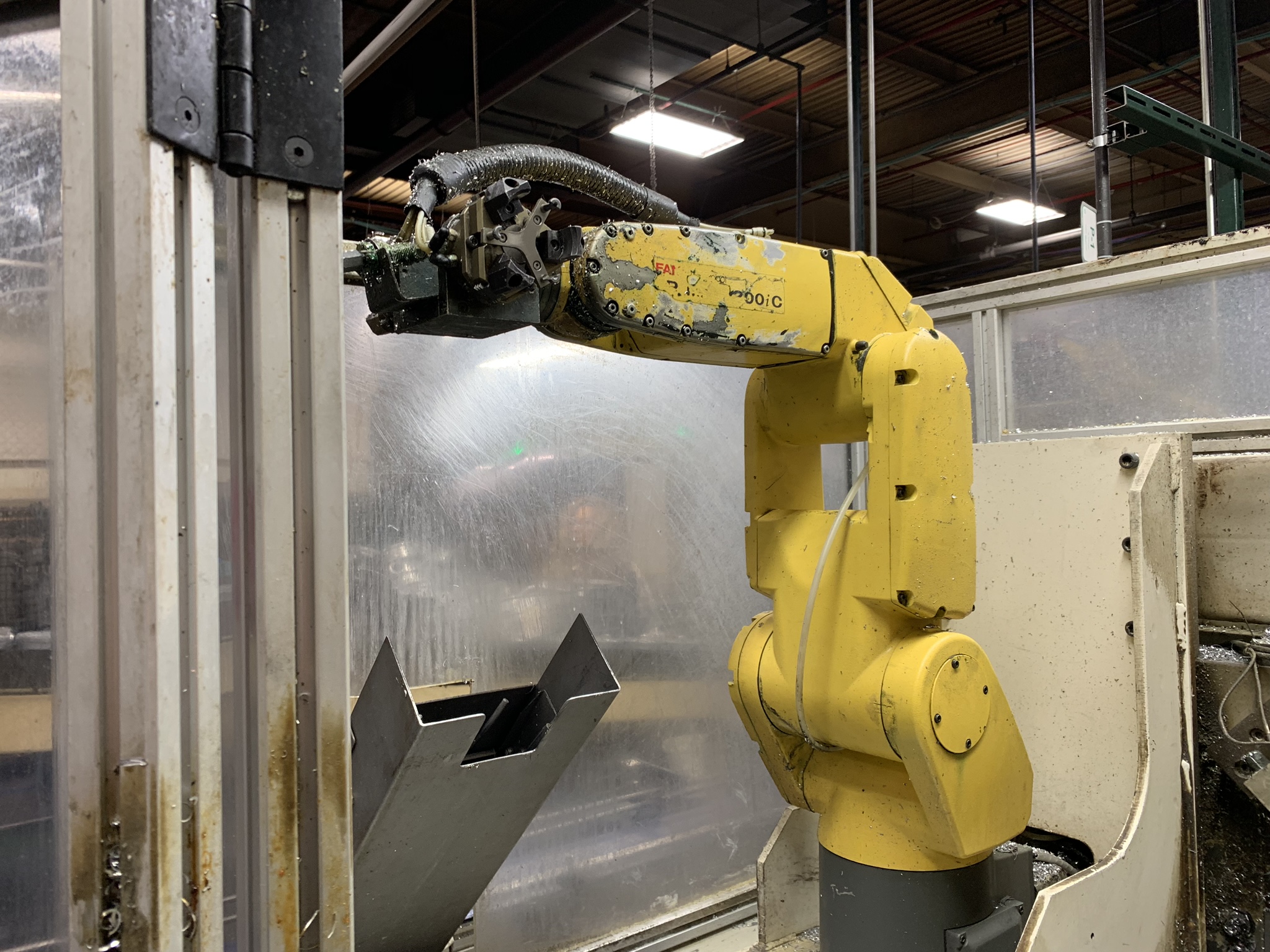

FANUC Robotic Automation System
(2) LR Mate200/C/R-30iA Mate Robots
(2) Robot Risers
(2) End of Arm Tool System
System Integration at InSinkErator
