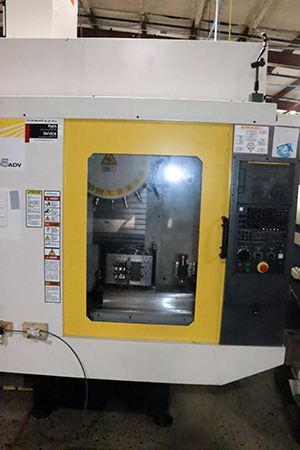

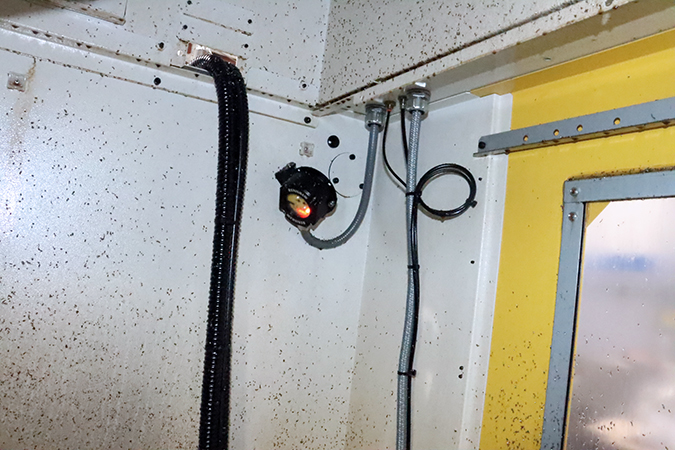

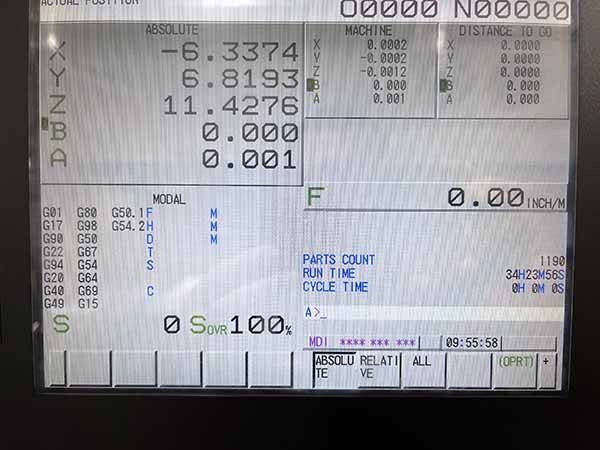

Fanuc Robodrill aD21LiB5adv 2021

MACHINE SPECIFICATIONS

• X Axis Travel:

  27.55"

• Y Axis Travel:

  15.74"

• Z Axis Travel:

  15.74"

• Table Top to Spindle End Without Riser:

  3.15" – 18.89"

• Spindle Center to Column Guideway:

  14.96”

• Table Size:

  33.46" x 16.14"

• Table Load Capacity:

  880 lbs.

• Table Surface Configuration :

  3 T-Slots, spacing 125mm apart

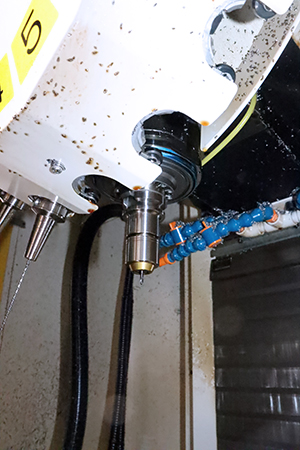

• Spindle Type:

  Cartrige Style Direct Drive

• Spindle Taper:

  7/24 Taper No. BT30

• Bearings:

  (4) Ceramic Greased Packed

• Spindle Speed:

  200 –24,000 rpm

• Acceleration Time:

  (0-24,000 rpm) .7 sec

• Spindle Motor:

  Fanuc AC Spindle Motor

• Full Torque:

  7,000 rpm

• Rapid Feedrate (X, Y, and Z axes):

  2125 in/min

• Cutting Federate:

  (X/Y/Z) 0.1 - 1181"

• Positioning Accuracy X, Y Axis:

  .0002"/12”

• Positioning Accuracy Z Axis:

  .0002" /12”

• Repeatability X-Y-Z:

  +/- .000078"

• Tool Holder:

  MAS BBT30

• Pull Stud:

  MAS P30T-1 (45 Degree)

• Number of Tools:

  21

• Max Tool Length:

  9.84”

• Tool Change Time:

  0.7 sec .09 sec 1.1 sec

• Chip to chip:

  .07 sec .09 sec 1.1 sec

• Power capacity:

  15 KVA

• Air Source:

  71 - 135 PSI

• Floor to Table:

  31.6”

• Machine height:

  110"

• Floor Area:

  102”w x 111” d

• Machine Weight:

  5070 lbs.

• Machine Size:

  84" w x 79.9" d
