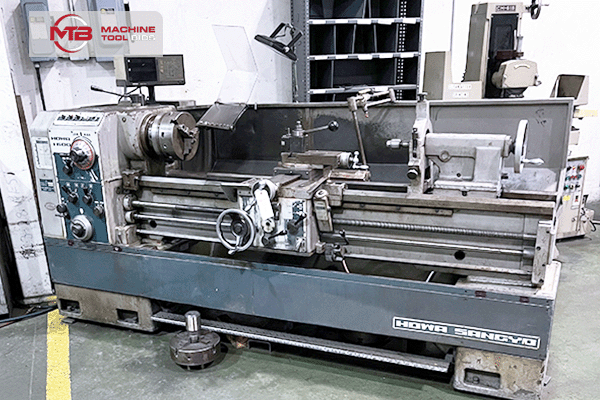

Howa Sangyo 1500 1983

MACHINE SPECIFICATIONS

• Max Swing over Bed:

  16-7/8Inch

• Swing Over Gap:

  18-1/2Inch

• Gap Width from Face Plate:

  6-1/2Inch

• Swing Over Carriage:

  9Inch

• DISTANCE BETWEEN CENTERS:

  59Inch

• Hole Through Spindle:

  2-3/64Inch

• Spindle Taper:

  D1-6Inch CAMLOCK

• SPINDLE SPEED RANGE:

  30 - 1500 RPM (16)

• Longitudinal Feeds:

  .0016 - .0276 IPR (32)

• Cross Feeds:

  .0008 - .0118 IPR (32)

• English Threading Range:

  4 - 56 TPI (32)

• Metric Threads:

  .5 - 7 TPI (21)

• Tailstock Spindle Diameter:

  2-9/16Inch

• Tailstock spindle taper:

  #4MT

• Tailstock Spindle Travel:

  6Inch
