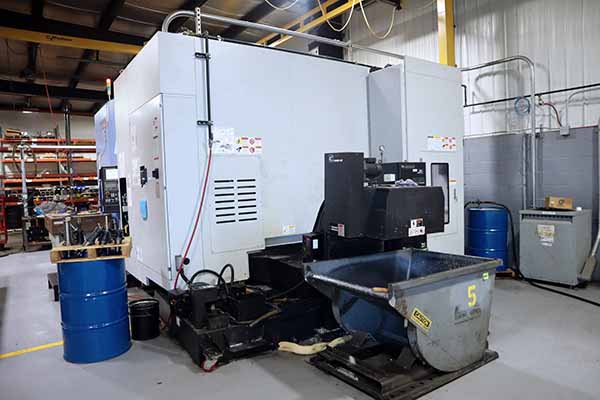

Doosan NHP 6300 2015

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

MAKE: Doosan
MODEL: NHP 6300
YEAR: 2015
TYPE: Horizontal Machining Center
CONTROL: Accupress
REF #: 3641638

MACHINE SPECIFICATIONS

Travel Distance X-axis: :

(41.3 in)
Travel Distance Y-axis::

(35.4 in)
Travel Distance Z-axis: :

(39.4 in)
Rapid Traverse X-axis: :

(2362.2 in/min)
Rapid Traverse Y-axis: :

(2362.2 in/min)
Rapid Traverse Z-axis: :

(2362.2 in/min)
Table Size::

(24.8 x 24.8 in)
Max Part Size: :

(41.3 x 53.1 in)
Max Load::

(3306 lbs)
Speed: :

10000 rpm
Power::

25/37 kW (34/50 Hp)
Torque::

420 Nm (310 ft-lbs)
Shank: :

BIG PLUS CAT50
Changer Capacity: :

90
Change Time::

2 Seconds
Max Diameter::

(5.1/12.6 in)
Max Length: :

(24.8 in)
Length: :

(291.7 in.)
Height::

(137 in.)
Width::

(154.7 in.)
Weight::

(39,683 lbs.)

MACHINE EQUIPPED WITH

FANUC 31I-B 4-AXIS CNC CONTROL

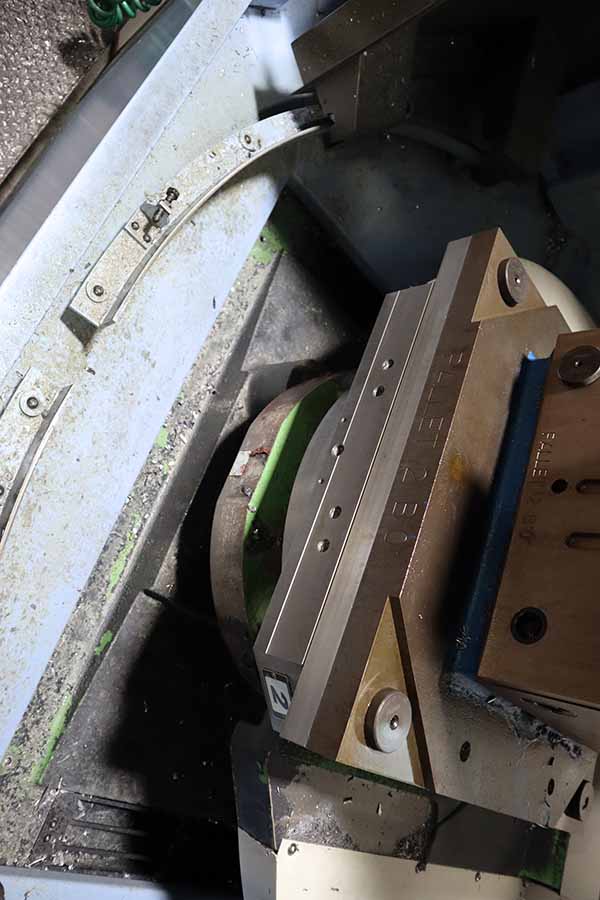

DUAL 24.8" X 24.8" PALLETS
RENISHAW PROBE
COOLANT THROUGH SPINDLE
FLOOD COOLANT
OIL CHILLER
CHIP CONVEYER
