Kitamura MyCenter HX300iG 2018

Sold Image
Kitamura MyCenter HX300iG 2018 1
Kitamura MyCenter HX300iG 2018 2
Kitamura MyCenter HX300iG 2018 3
Kitamura MyCenter HX300iG 2018 4
Kitamura MyCenter HX300iG 2018 5
Kitamura MyCenter HX300iG 2018 6
Kitamura MyCenter HX300iG 2018 7
Kitamura MyCenter HX300iG 2018 8
Kitamura MyCenter HX300iG 2018 9
Kitamura MyCenter HX300iG 2018 10
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 11
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 12
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 13
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 14
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 15
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 16
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 17
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 18
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 19
Horizontal Machining Center Kitamura MyCenter HX300iG 2018 20
Kitamura MyCenter HX300iG 2018 2
Kitamura MyCenter HX300iG 2018 2
Kitamura MyCenter HX300iG 2018 3
Kitamura MyCenter HX300iG 2018 4
Kitamura MyCenter HX300iG 2018 5
Kitamura MyCenter HX300iG 2018 6
Kitamura MyCenter HX300iG 2018 7
Kitamura MyCenter HX300iG 2018 8
Kitamura MyCenter HX300iG 2018 9

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Kitamura

  • MODEL: MyCenter HX300iG

  • YEAR: 2018

  • TYPE: Horizontal Machining Center

  • CONTROL: Arumatik-Mi

  • REF #: 3630436

MACHINE SPECIFICATIONS

  • Table Size:

    12" x 12"

  • X Axis Travel:

    18.1"

  • Y Axis Travel:

    20.1"

  • Z Axis Travel:

    22.0"

  • Spindle Taper:

    CAT40 Big PLUS

  • Spindle Speed:

    15,000 rpm

  • Tool Storage Capacity:

    100 Tools

  • Tool Change Time:

    (T-T/C-C) 1.3 Sec. /2.5 Sec.

  • Rapid Feed:

    (X,Y,Z) 2,362ipm (60m/min)

  • RAPID FEED B AXIS:

    54,000deg./min. (150rpm)

  • Power Requirement:

    45KVA

MACHINE EQUIPPED WITH

  • Double Decker Type Chip Conveyor
  • 51KVA Transformer
  • 220PSI Coolant Through Spindle
  • Renishaw NC4 Laser
  • Overhead Coolant Shower
  • 100 Tool ATC Upgrade

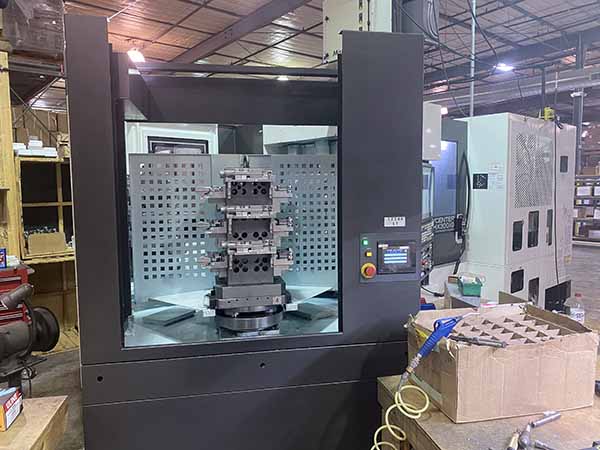

  • 8 Pallet Automatic Pallet Pool
  • High Torque Spindle: 600Nm
  • Big Plus Double Contact Spindle
  • Built-in Rotary table (0.001 degree)
  • Coolant thru the Spindle with Filtration Operating at 1000 PSI
  • (2) Coil Conveyors Left and Right Side of Pallet
  • Soft AC- Adaptive Control Function
  • NCOP Package
  • Coordinate rotation (G-Command)
  • Custom Macro Variable Memory Expansion increase to 600 Variables
  • Scaling
  • Block Skip Additional 9 Pieces
  • Constant Hydraulic Fixture Coupling
