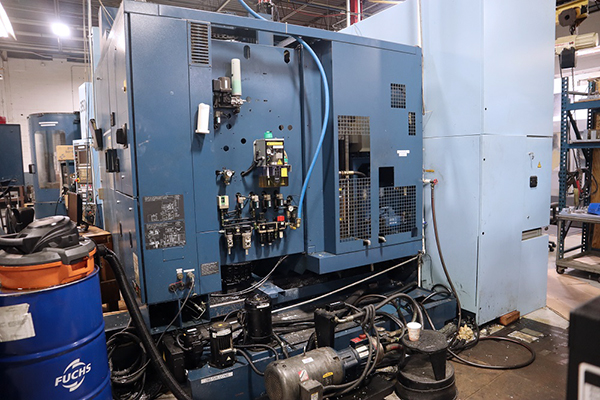

Matsuura H.Plus-630 2005

Sold Image
Matsuura H.Plus-630 2005 1
Matsuura H.Plus-630 2005 2
Matsuura H.Plus-630 2005 3
Matsuura H.Plus-630 2005 4
Matsuura H.Plus-630 2005 5
Matsuura H.Plus-630 2005 6
Matsuura H.Plus-630 2005 7
Matsuura H.Plus-630 2005 8
Matsuura H.Plus-630 2005 9
Matsuura H.Plus-630 2005 10
Matsuura H.Plus-630 2005 11
Matsuura H.Plus-630 2005 12
Matsuura H.Plus-630 2005 13
Matsuura H.Plus-630 2005 14
Matsuura H.Plus-630 2005 15
Matsuura H.Plus-630 2005 16
Matsuura H.Plus-630 2005 17
Matsuura H.Plus-630 2005 18
Horizontal Machining Center Matsuura H.Plus-630 2005 19
Horizontal Machining Center Matsuura H.Plus-630 2005 20
Horizontal Machining Center Matsuura H.Plus-630 2005 21
Horizontal Machining Center Matsuura H.Plus-630 2005 22
Horizontal Machining Center Matsuura H.Plus-630 2005 23
Horizontal Machining Center Matsuura H.Plus-630 2005 24
Horizontal Machining Center Matsuura H.Plus-630 2005 25
Horizontal Machining Center Matsuura H.Plus-630 2005 26
Horizontal Machining Center Matsuura H.Plus-630 2005 27
Horizontal Machining Center Matsuura H.Plus-630 2005 28
Horizontal Machining Center Matsuura H.Plus-630 2005 29
Horizontal Machining Center Matsuura H.Plus-630 2005 30
Horizontal Machining Center Matsuura H.Plus-630 2005 31
Horizontal Machining Center Matsuura H.Plus-630 2005 32
Horizontal Machining Center Matsuura H.Plus-630 2005 33
Horizontal Machining Center Matsuura H.Plus-630 2005 34
Horizontal Machining Center Matsuura H.Plus-630 2005 35
Horizontal Machining Center Matsuura H.Plus-630 2005 36
Horizontal Machining Center Matsuura H.Plus-630 2005 37
Horizontal Machining Center Matsuura H.Plus-630 2005 38

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Matsuura

  • MODEL: H.Plus-630

  • YEAR: 2005

  • TYPE: Horizontal Machining Center

  • CONTROL: Fanuc G-Tech 30i

  • REF #: 3635298

MACHINE SPECIFICATIONS

  • X-Axis Travel:

    41.33"

  • Y-Axis Travel:

    36.22"

  • Z-Axis Travel:

    38.97"

  • Pallet Size:

    24.8" x 24.8"

  • Tool Magazine Capacity:

    145 ATC

  • Spindle Speed:

    12,000 RPM

  • Spindle Taper:

    CAT 50

  • Max Workpiece Size:

    41.33" dia x 43.89" height

  • Pallet Indexing:

    0.001 deg

  • Number of Pallets:

    6

MACHINE EQUIPPED WITH

  • Fully Enclosed 6 Pallet Pool with 1 loading station
  • Includes 6 tables and tombstones
  • 145 Tool Capacity
  • 1000 PSI Coolant Thru Spindle
  • 12000 Max Spindle RPM
  • Full B-axis (0.001 deg) Fanuc G-Tech 30i Control
  • Renishaw Probing
  • Renishaw Tool Presetter
  • Spindle Chiller
  • Hinge Type Chip conveyor
  • Coolant tanks
  • Transformer
