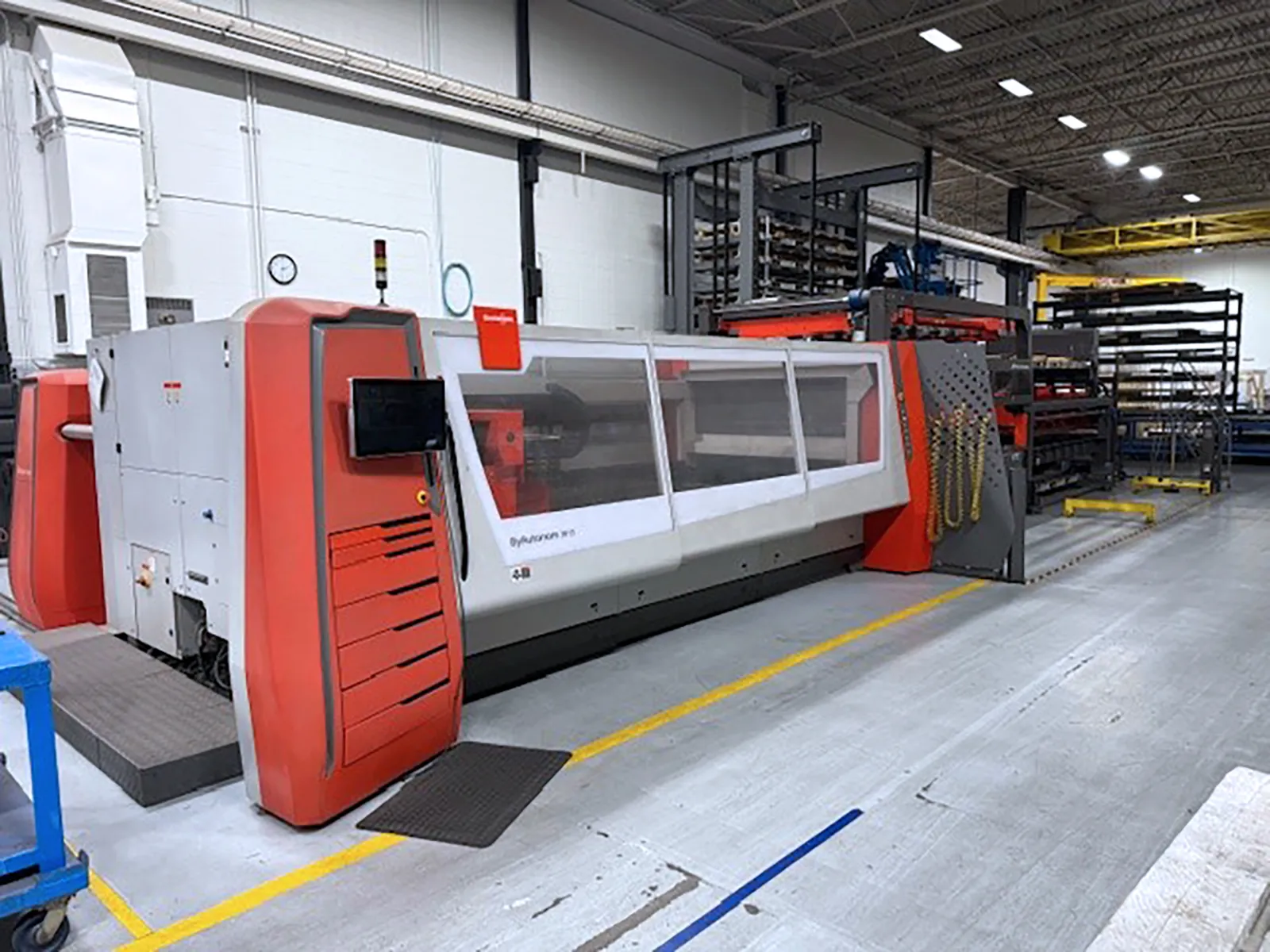

Bystronic ByAutonom 3015 2013

machine specifications

• Laser Output:

  4,400 watts

• Wavelength:

  10.6 microns (CO₂ laser)

• Pulse Frequency:

  1–2,500 Hz

• Polarization:

  Circular

• Max Cutting Area:

  60" x 120"

• Z-Axis Travel:

  6.7"

• Max positioning speed (single axis):

  3,150 inches/minute

• Max positioning speed (simultaneous):

  4,450 inches/minute

• Max Acceleration:

  177 inches/second²

• Positioning Accuracy:

  ±0.004"

• Repeatability:

  ±0.002"

• Edge Detection Accuracy:

  ±0.02"

• Max Mild Steel:

  Up to 1"

• Capacity Stainless Steel:

  Up to 0.75"

• Aluminum:

  Up to 0.5"

• Cutting heads:

  5" and 7.5" focal lengths

• Footprint:

  Approx. 42.3 ft (L) × 20 ft (W) × 6.8 ft (H)

• Approximate Machine Weight:

  29,800 lbs

• Max Sheet Weight:

  4,300–4,400 lbs
