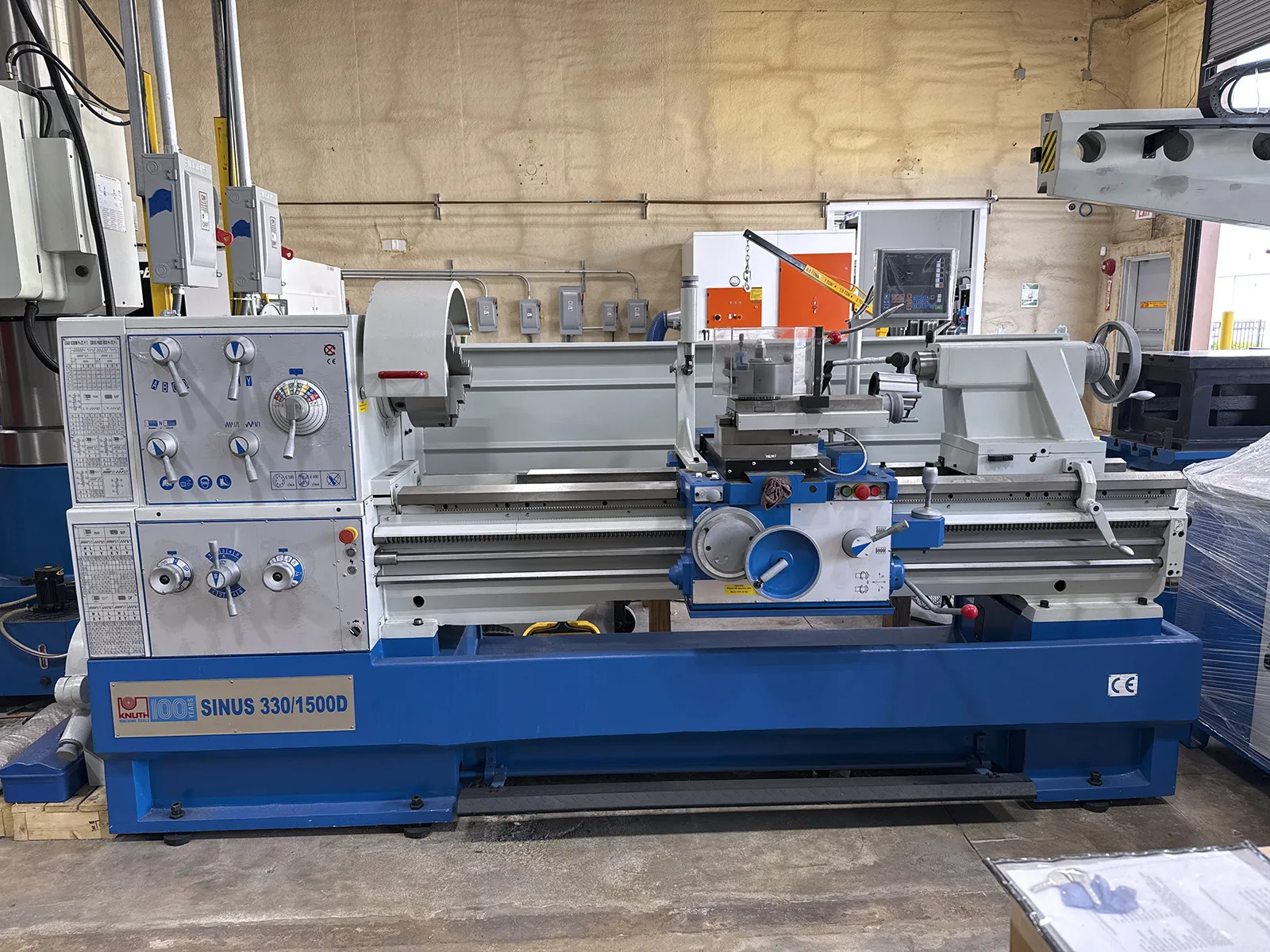

Knuth Sinus D 330/1500 2024

machine specifications

• 3 Axis Digital Read Out:

• Spindle HP:

  10HP

• Working Area:

• Center Width:

  60 in

• Turning Diameter over Bed:

  26 in

• Turning Diameter over Support:

  17 in

• Turning diameter without ap Bridge:

  35 in

• Travel Cross Slide:

  14.5 in

• Travel Top Slide:

  9 in

• Gap Bridge Length:

  12.5 in

• Bed Width:

  16 in

• Top Slide Swivel Range:

  45

• Headstock:

• Spindle Speed:

  25 – 1600 rpm (16)

• Spindle Bore:

  4 in

• Spindle Mount:

  D1-8

• Spindle Taper:

  MT5

• Feed:

• Feed X-axis:

  (25) 0 - 0.03 in/rev

• Feed -axis:

  (25) 0 - 0.06 in/rev

• Rapid Feed X-axis:

  79 in/min

• Rapid Feed -axis:

  158 in/min

• Threading:

• Metric:

  (54) 0.45-120 mm

• Diametric:

  (42) 0.88-160 DP

• Module:

  (46) 0.01 - 2.36 in

• Whitworth:

  (54) 0.44-80 P

• Tailstock:

• Tailstock Quill Diameter:

  3.5 in

• Tailstock Taper:

  MT 5 / 3.5 in

• Tailstock Quill Stroke:

  9.25 in

• Tailstock Traverse Adjustment:

  0.5 in

• Power Requirements:

  460V/3 Phase/60 hz

• Dimensions:

  126" x 49" x 63"

• Weight:

  6,000lbs
