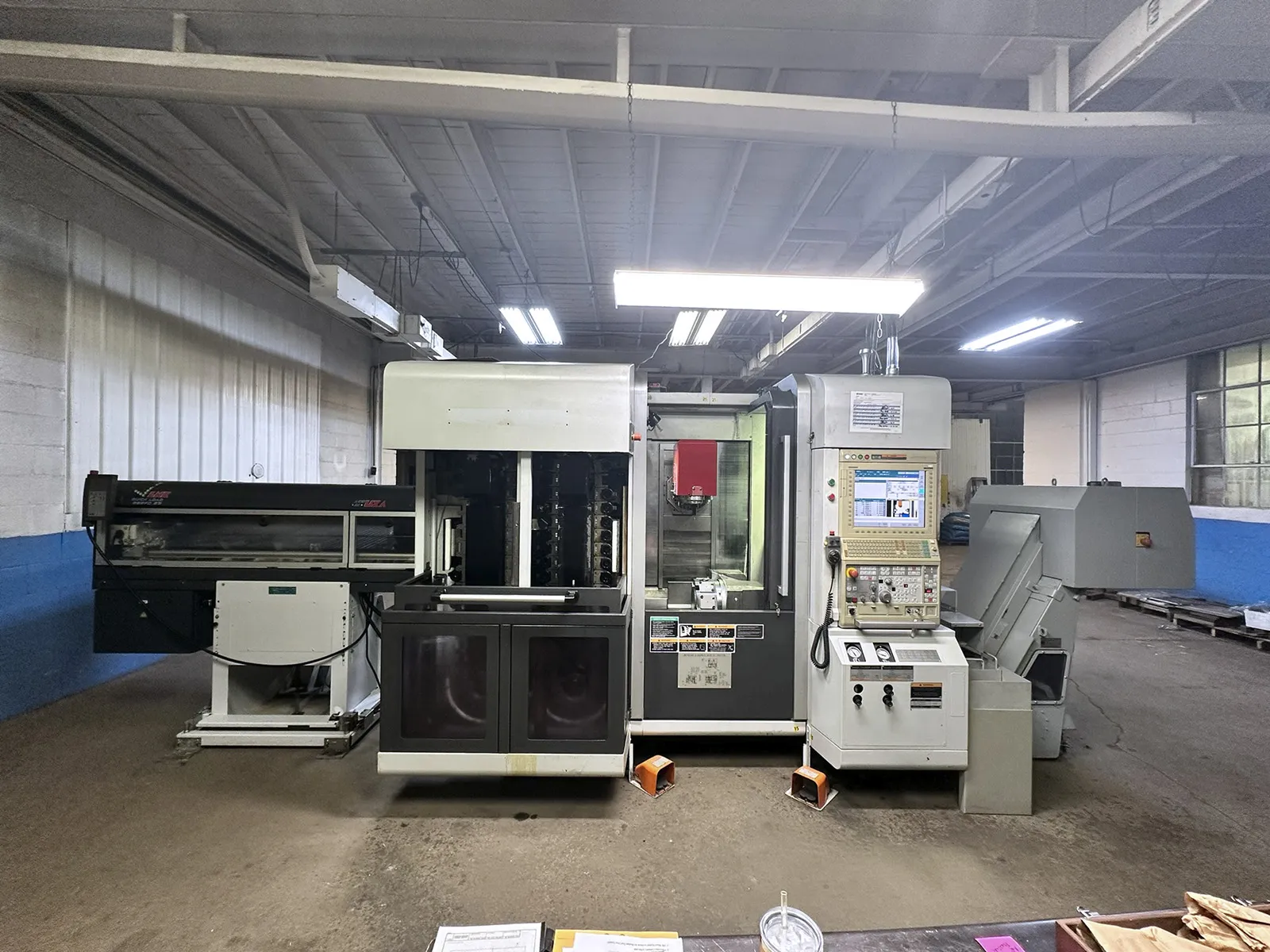

DMG Mori NXT1000/SZM 2012

machine specifications

• Maximum Swing :

  17.7"

• Max Turning Diameter:

  14.5"

• Max Turning Length:

  16.6"

• Spindle Bore:

  2.9"

• X-Axis Travel (X1, X2, X3) :

  15"/ 6.1"

• Z-Axis Travel (Z1, Z2, Z3):

  18.1"/ 24"

• Y-Axis Travel (Y1, Y2, Y3):

  4.1"

• Main Spindle Chuck Type:

  Hydraulic

• Main Spindle Speed:

  6,000 RPM

• Sub Spindle Speed:

  6,000 RPM

• Turret Tool Positions:

  10 Positions w/Milling

• Turret Rotary Tool Spindle Speed:

  12,000 RPM

• B-Axis Travel: :

  120 Degrees

• Style of Tooling:

  Capto C5

• ATC:

  76 Tool
