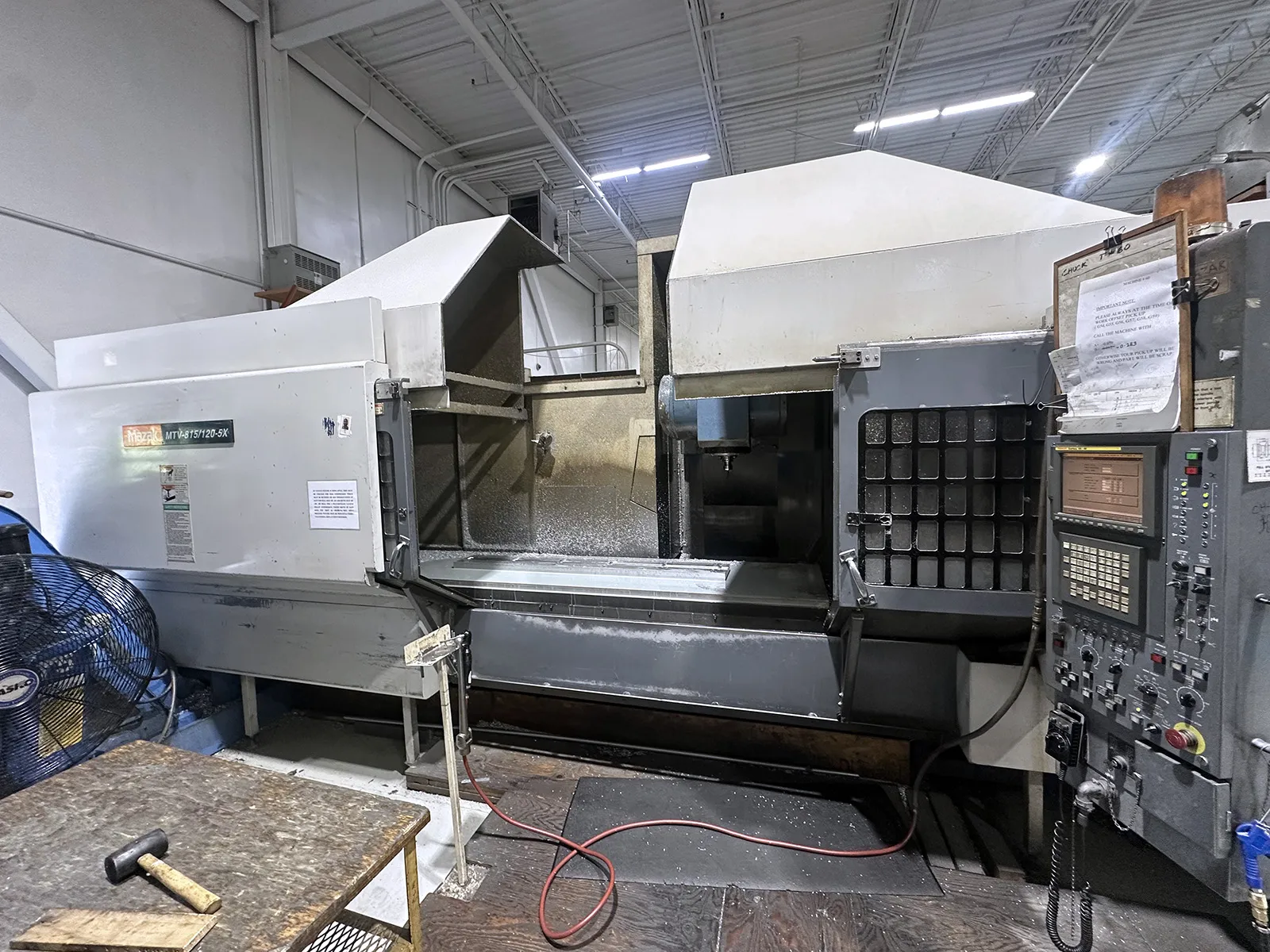

Mazak MTV815/120-5X 1999

machine specifications

• Table Size:

  31.9″ x 127.6″

• Travels:

• X Axis Travel:

  120″

• Y Axis Travel:

  31.89″

• Z Axis Travel:

  29.53″

• A axis :

  +/- 30°

• B Axis:

  +/- 30°

• Max Table Load:

  6,600 Lbs.

• Max Workpiece Height:

  28.5″

• Distance from spindle nose to table top:

  5″ – 29.1″

• Rapids:

• Traverse Rate (X&Y Axis):

  945 IPM

• Traverse Rate (Z Axis):

  787 IPM

• Traverse Rate: (A&B Axis):

  3600 Deg/Min

• Max. Programmable Feedrate (X&Y Axis):

  315 IPM

• Spindle:

• Spindle Taper:

  CAT 50

• Max Spindle Speed:

  25 – 10,000 RPM

• Spindle HP:

  40 HP

• Magazine:

  60 ATC

• Max Tool Dia:

  4.92″

• Max Tool Dia With Adj. Pockets Empty:

  8.27″

• Max Tool Length:

  14.96″ Dia.

• Max Tool Weight:

  44 Lbs.

• Servo Drives:

  AC Motor

• Power Required (Machine Only):

  95.0 KVA

• Dimensions (Approx LxWxH):

  335″ x 177″ x 120″

• Weight:

  35,200 Lbs
