LNS Chip Conveyor, 1.6 seconds Tool change time, BT30 Spindle Holder, 30 Tool Holders and Tool Cart
Make: Fanuc
Model: Robodrill aD21SiB5
Year: 2018
Control: - Accupress
Type: Vertical Machining Center
Reference: 3669900
-
Max Tool Length 7.48"
-
Travel X/Y/Z 11.81" x 11.81" (+3.94") x 12.99"
-
Max Tool Diameter HS 3.15"/3.94"
-
Table Size 24.80" x 12.99"
-
Max Table Load 440.92 lbs
-
Max Tool Weight 6.61 lbs
-
Distance from Spindle Nose to Table 9.8"- 22.8"
-
Spindle Speed 10,000
-
Spindle Load 10,000 rpm (1 min) 80Nm/14.2kW
-
Rapid Traverse All Axis 54
-
Acceleration X/Y/Z [G] (100kg table load, 2kg-tool) 1.6/1.2/1.6
-
Spindle load 10,000 rpm (continuous operation) Nm | kW 13.6Nm/4kW
-
Number of Tools 21
-
Tool Change Time C-to-C 1.6 seconds
-
Programmable cutting feed in/min 1181.1"
-
Machine Weight 4409.25lbs
-
Spindle Holder BT30
-
Air pressure consumption 150 L/min 0.35–0.55 Mpa
- LNS Chip Conveyor
- KME TR-100-S 5-Axis Trunnion
- KME Control Package
- KME Quick Receiver Faceplates
- Blum Pico Prob
- Renishaw Probe
- Tsunami Breathing Air Panel
- 30 Tool Holders and Tool Cart
- Mounting System
- Air Turbine 65000 RPM High Speed Spindle Option

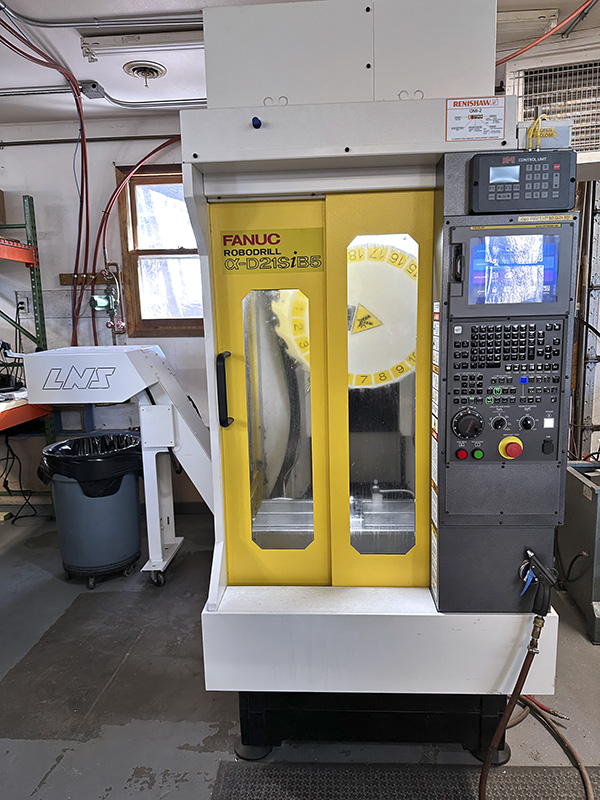

Used Fanuc Robodrill D21SiB5. This pre-owned Vertical Machining Center is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Fanuc Vertical Machining Center we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
