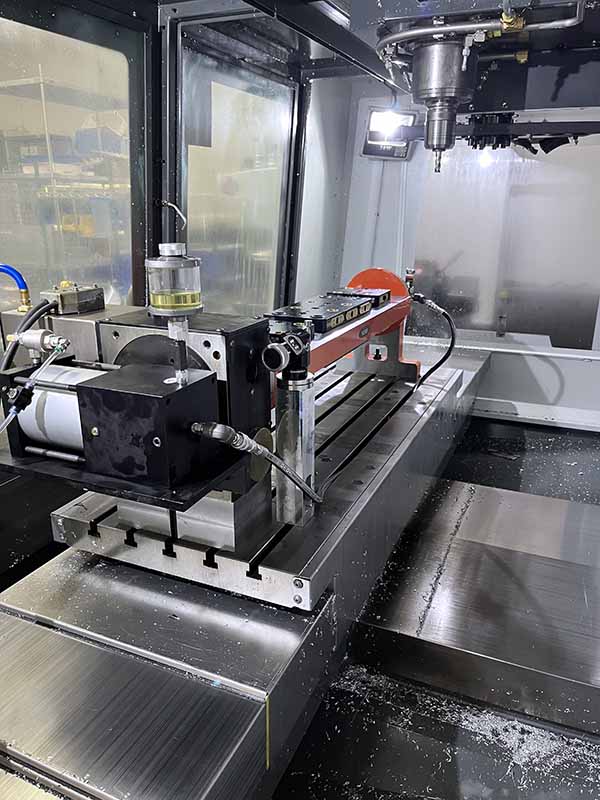

Haas VF-4SS 2019

Sold Image
Haas VF-4SS 2019 1
Haas VF-4SS 2019 2
Haas VF-4SS 2019 3
Haas VF-4SS 2019 4
Haas VF-4SS 2019 5
Haas VF-4SS 2019 2
Haas VF-4SS 2019 2
Haas VF-4SS 2019 3
Haas VF-4SS 2019 4
Haas VF-4SS 2019 5

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

  • MAKE: Haas

  • MODEL: VF-4SS

  • YEAR: 2019

  • TYPE: Vertical Machining Center

  • CONTROL: Haas

  • REF #: 3657184

MACHINE SPECIFICATIONS

  • X Axis Travel:

    50"

  • Y Axis Travel:

    20"

  • Z Axis Travel:

    25"

  • Rapid Rate X Axis:

    1,400 IPM

  • Rapid Rate Y Axis:

    1,400 IPM

  • Rapid Rate Z Axis:

    1,400 IPM

  • Max Table Load:

    1,750 lbs

  • Spindle Motor:

    30 HP

  • Spindle Speed:

    12,000 RPM

  • Spindle Taper:

    40 CT

  • Tool Changer:

    24 ATC

  • Spindle Nose to Table:

    4.2" - 29.2"

  • Max Torque:

    90 ft-lbf @ 2000 rpm

  • Max Weight on Table:

    (evenly distributed) 1,750 lbs

  • Table Size:

    52" x 18"

  • Dimensions:

    131" x 102" x 109"

  • Weight:

    13,500 lbs

MACHINE EQUIPPED WITH

  • Haas Next Gen CNC Control
  • Tool Setter
  • Spindle Probe
  • Coolant Thru Spindle
  • 4th Axis Rotary Table
  • Macros
  • Rotation and Scaling
  • Rigid Tapping
  • Spindle Orientation
  • High Speed Machining
  • VPS Editing
  • 1 GB Memory
  • Wireless Networking
  • Compensation Tables
  • 4th Axis Drive & Wiring
  • HRT-210 4th Axis Rotary Table with Trunnion
  • 3.5" riser for HRT210 Rotary and Outboard Support
  • Custom Stallion 9/35/DBS - trunnion built for rotary table
  • Hydraulic Clamping Outboard Support to Supplement Rotary Table Brake Holding
  • Comes Complete With Air Over Hydraulic Pump Hydraulic Lines and Fittings
  • Includes Extra Air Over Hydraulic Pump
