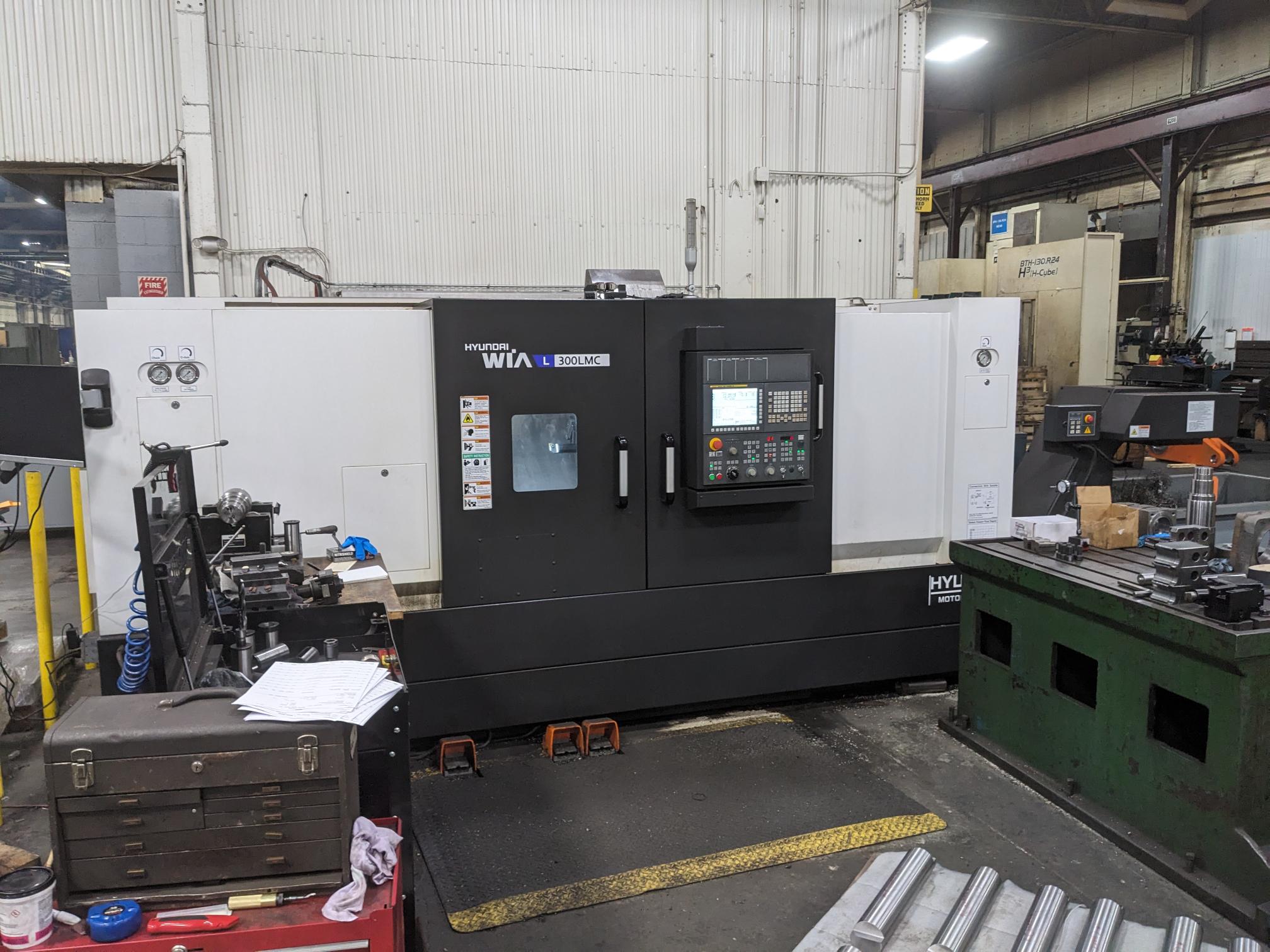

Hyundai L300LMC 2019

machine specification

• CAPACITY
• ---

• SWING OVER BED
• 29.5"

• SWING OVER CARRIAGE
• 18.9"

• MAX TURNING DIA.
• 19.7"

• MAX TURNING LENGTH
• 49.6"

• BAR CAPACITY
• 4"

• SPINDLE
• ---

• CHUCK SIZE
• 15"

• SPINDLE BORE
• 4.5"

• SPINDLE SPEED
• 2800 RPM Big Bore

• SPINDLE NOSE
• A2-11 Big Bore

• SPINDLE MOTOR
• 30 HP

• SPINDLE TORQUE
• 580.7 lbf.ft

• TRAVEL
• ---

• TRAVELS
• 14"/53.1" (X/Z)

• RAPID TRAVERSE RATE (X,Z)
• 20/24 m/min

• TURRET
• ---

• NUMBER OF TOOLS
• 12

• TURNING TOOL SHANK SIZE
• 1"

• BORING BAR DIAMETER
• 2"

• TURRET INDEX TIME
• 0.3 sec

• CLAMPING FORCE
• 14395 lbs

• PROGRAMMABLE TAILSTOCK
• ---

• TAILSTOCK QUILL DIAMETER
• 3.9"

• TAILSTOCK QUILL STROKE
• 4.7"

• TAILSTOCK BODY STROKE
• 53.15"

• TAILSTOCK SPINDLE TAPER (BUILT IN TYPE)
• MT #5

• MAX. TAILSTOCK QUILL THRUST
• 1628 lbs

• COOLANT AND HYDRAULIC SYSTEM
• ---

• COOLANT TANK CAPACITY
• 71.3 gal

• HYDRAUIC TANK CAPACITY
• 5.3 gal/ VG32 or CB32 Required oil

• LUBRICATION TANK CAPACITY
• 0.5 gal/ G68 Required oil

• GENERAL
• ---

• DIMENSIONS
• 78" x 219" x 80.9"

• WEIGHT
• 17196 lbs

• POWER REQUIRED
• 30 kVA @ 220V

• VOLTAGE REQUIRED
• 205-235 Volts/ 3 Phase

• MILLING SPINDLE
• ---

• MILLING TOOL SPEED
• 4000 RPM

machine equipped with

• PROGRAMMABLE TAIL STOCK
• MANUAL TOOL SETTER
• PREPPED FOR PARTS CATCHER
• 87PSI COOLANT SYSTEM
• MT#5 LIVE CENTER
• RIGHT SIDE HINGE TYPE CHIP CONVEYOR
• LNS BAR FEEDER INTERFACE
• 2 STRAIGHT AND 2 ANGULAR MILL HOLDERS
• RIGID TAPPING

machine description

Used Hyundai L300LMC. This pre-owned CNC Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Hyundai CNC Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
