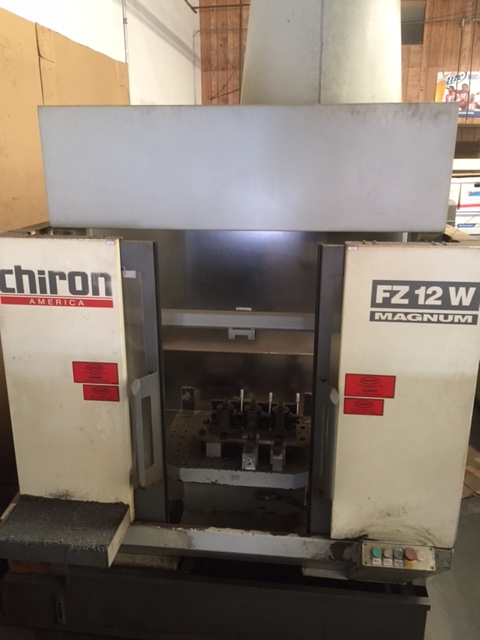

Chiron FZ 12W 1998

Main Spindle Spindle Speed Range: 20 ~ 10,500 RPM AC-motor 6S: 5.0 HP at 100% - 7.5 HP at 50% Spindle Torque: 26 ft. – lbs. Drilling Capacity in steel 60: .75 inch diameter Tapping Capacity: .63 inch diameter Milling Capacity in steel 60: 6 cubic inches per minute Machine Travel X-axis: 21 inches Y-axis: 12 inches Z-axis: 16 inches X, Y, Z - AC Servo Feed Drives: 1,600 inches per minute (rapid traverse) Steel Covers on all axes Automatic Tool Changer Number of tools: 20 Tool Taper (ISO pull-stud): CAT 40 Maximum Tool Diameter (all positions occupied): 2.5 inches Maximum Tool Diameter (adjacent tools free): 5.9 inches Maximum Tool Weight: 11 pounds Tool Change Time: 0.9 seconds (approx) Chip to Chip Time: 2.4 seconds (approx) 180-deg Workpiece Swivel Table (Dual tables for uninterrupted machining during workpiece change) Table Swivel Time: 3.0 seconds (approx) Maximum Loading Capacity: 220 lbs (each side)/ 330 lbs (cumulative) Clamping Surface: 26” x 13.8” (x2) Clamp/Locate Hole Grid: 5/8”-18 UNF x 5/8” H7 x 2” spacing Coolant System High Pressure Coolant - CoolJet model 100-10 DF: 1000psi, 3gpm, through-spindle Filtration – Through-Spindle Coolant: 10 micron, duplexed Tank Capacity: 33 gal Sump pump capacity: 40 gpm GE-FANUC 21-M, 3 axes Continuous Path Control Memory Capacity: 125,000 characters (1000 feet/300 meters) Data in/out interface: RS-232, 20 ma Tool Offsets: 64 Zero Shifts: 6 - G54 ~ G59 Drilling Cycles: G73, G74, G76, G81 ~ G89 M- and T- functions Circular Interpolation (360 degrees) Rigid Tapping Re-start into Program Subroutines with Parameters (Macro A) Simultaneous Programming (background edit) Drilling and Milling Cycles Automatic Corner Override Tool Length Measuring Cutter Radius – Contour Compensation Metric/inch switchable 3D Interpolation S – Analogue Orientated Spindle Stop Software Limit Switch NC Diagnosis Machine Diagnosis Mini-operating Panel With start and receipt push buttons for pallet recognition: M61 & M62 Full Machine Enclosure Rigid Fixed Center Divider Acrylic divider mounted in the center of workpiece swivel table 480 Volt 3-phase, 19kva Operation, Maintenance and Programming Manuals
