This Machine has been sold and is No longer Available... Find similar machines below

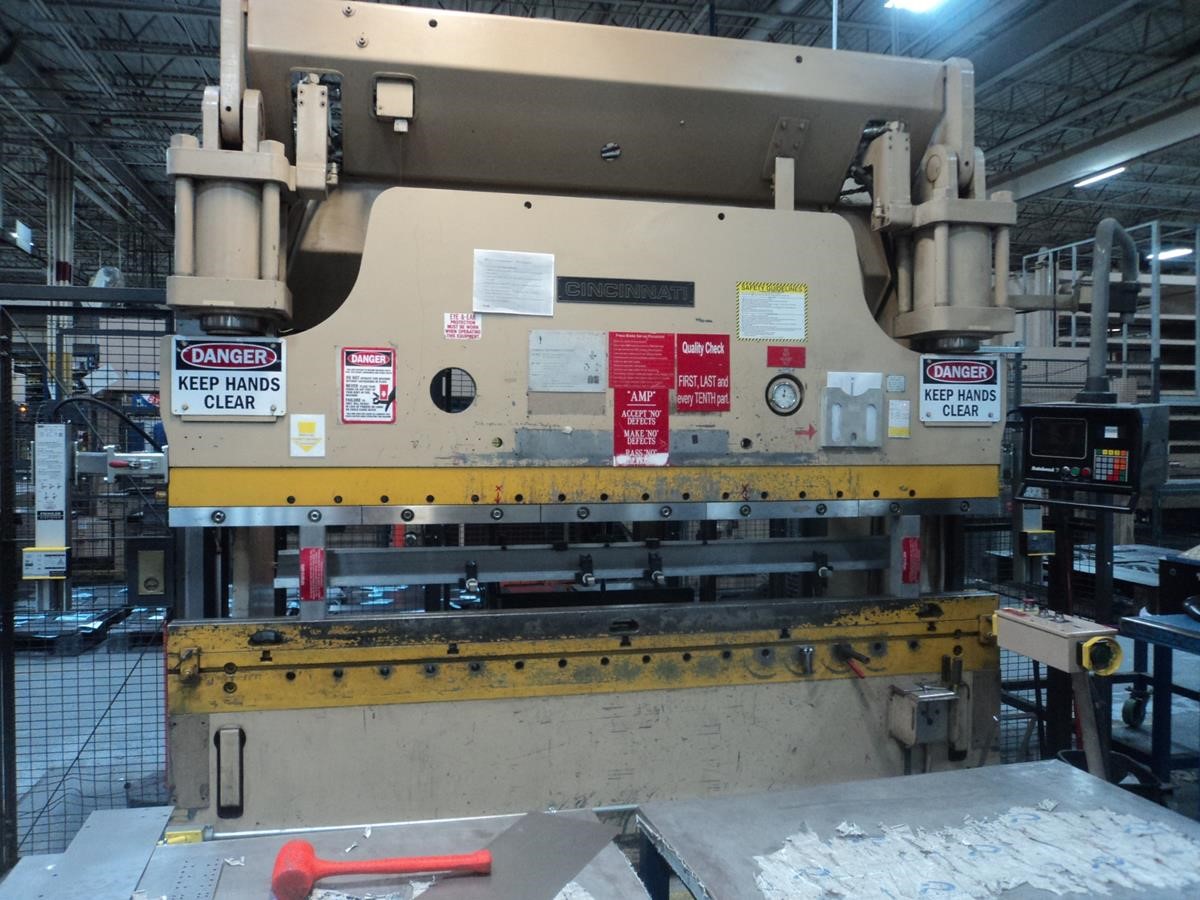

Cincinnati Form Master 1982

MAKE: Cincinnati
YEAR: 1982
TYPE: N/A

MODEL: Form Master
CONTROL: Hurco Autobend 7
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine description

The hydraulic pump and other associated items have been replace within the last 12 months 175 Tons 175FM x 8ft Max Stroke 10" 5 Axis Form Master II CNC Hydraulic Press Brake With (Extended Stroke), Mdl. 175-FMII Extra Stroke & Shut Height Bed Compensation Package Dual Palm Control Foot Pedal Autobend 7 Back gauge specs: This backgage is motorized on the X and R axis. Movement of the back gage finger in the Z axis is manual by moving the fingers along the gage beam. Gauge bar length up to 11'6" (3.5 m) Gauge travel 24" (610 mm) Vertical adjustment 10" (254 mm) Horizontal adjustment 12" (305 mm) Gauge speed 800 ipm (20.32 m/min) Position accuracy +/- 0.003" (+/- 0.08 mm) Gauge repeatability +/- 0.002" (+/- 0.05 mm) Gauge holding force 200 lbs (91 kg) Casting weight 230 lbs (105 kg) Guide rod diameter 1 1/4" (32 mm) Gauge uprights diameter 2" (50 mm) Distance between uprights 34 1/2" (876 mm) Power requirements 115/230 VAC +/- 10%, 50/60 Hz Height 6 1/8" (156 mm) Width 42 1/2" (1080 mm) Depth 41 1/2" (1054 mm)
