DMG Gildemeister Sprint 326,_3717943

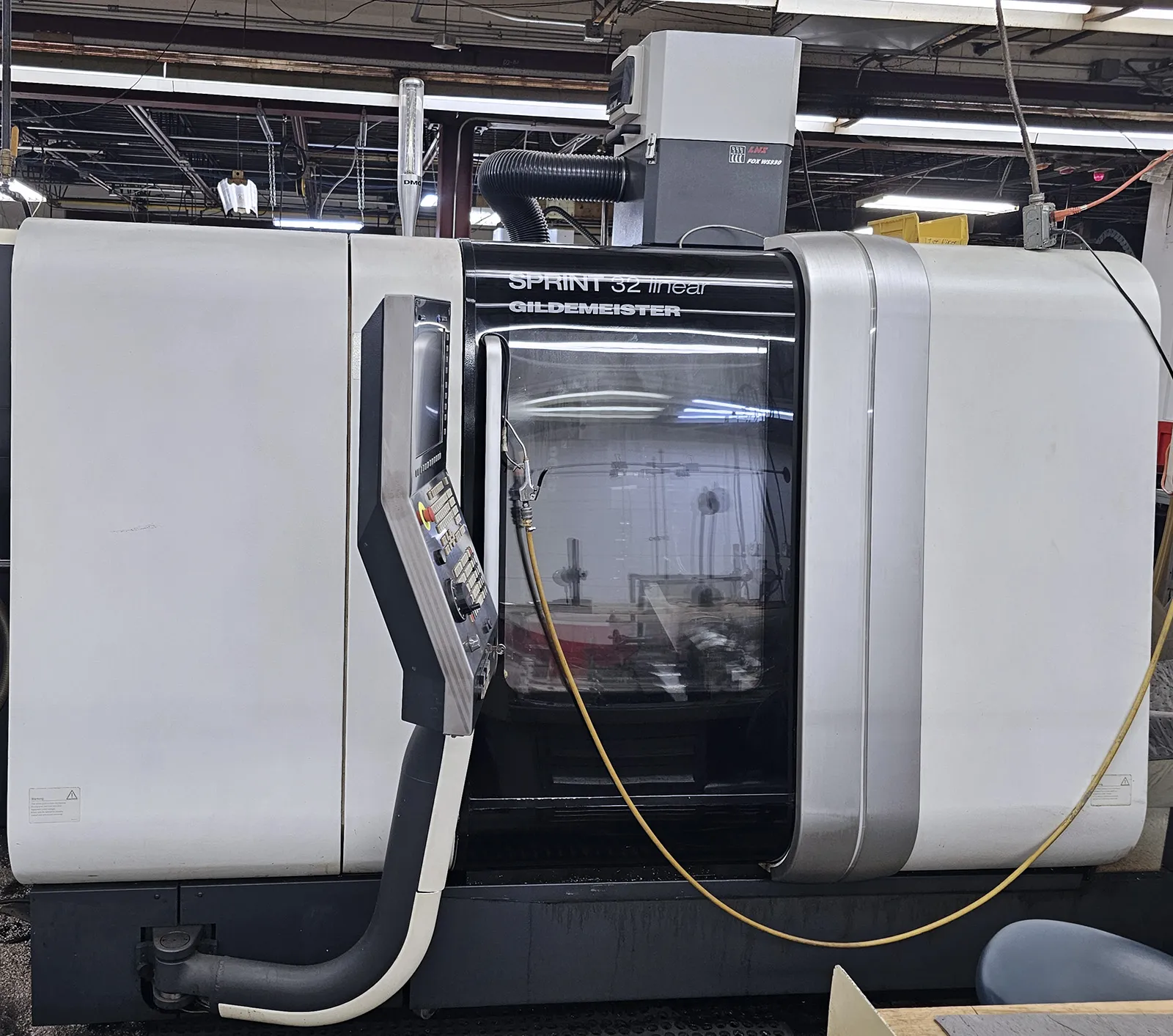

DMG Gildemeister Sprint 32/8 Linear 2011

High Precision and speed from linear drives

request quote

Open price not currently available. Please Contact Us

machine specifications

  • TECHNICAL DATA:

  • Main Spindle:

  • Max Bar Diameter:

    33 (36) mm

  • Max Speed:

    8.000 rpm

  • Nominal Power:

    S1 5,5 kW

  • Counter spindle:

  • Counter spindle Max bar diameter:

    38 mm

  • Counter spindle Max speed:

    8.000 rpm

  • Counter spindle Nominal Power:

    S1 5,5 kW

  • NC CONTROLLED AXES:

  • Stroke X1:

    65 mm

  • Rapid traverse X1:

    30 m/min

  • Acceleration X1:

    10 m/s2

  • Stroke Z1:

    120 mm

  • Rapid traverse Z1:

    30 m/min

  • Acceleration Z1:

    5 m/s2

  • Stroke Y1:

    350 mm

  • Rapid traverse Y1:

    30 m/min

  • Acceleration Y1:

    5 m/s2

  • Stroke X2:

    265 mm

  • Rapid traverse X2:

    18 m/min

  • Acceleration X2:

    5 m/s2

  • Stroke Z2:

    320 mm

  • Rapid traverse Z2:

    30 m/min

  • Acceleration Z2:

    5 m/s2

  • Stroke Y2:

    326 mm

  • Rapid traverse Y2:

    30 m/min

  • Acceleration Y2:

    5 m/s2

  • Tools:

  • Number of fixed tools for internal machining:

    4+4

  • Number of fixed tools for external machining:

    9

  • Number of rotating tools:

    8

  • Max Speed of Driven Tools:

    5.000 rpm

  • Coolant And Lubrication Equipment:

  • Coolant emulsion:

  • Tank Capacity:

    Approx. 520 l

machine equipped with

  • Imeca Mini Boss 332 barloader
  • Fanuc 310 Control
  • Chip Conveyor
  • Y-Axis available on main and sub spindle
  • -collet application for main and counter spindle
  • -6 position 16x16 tool holder for slide 1
  • -4 driven tools on slide 1 with junction ESX20
  • -C-axis for main and counter spindle
  • -drive for rotating tools slide 2
  • - 4 driven tools on slide 1 with junction ESX 20
  • -4 pos. tool holder diam. 32mm for slide 2
  • -pneumatic ejector and unloading system with belt
  • -pneumatic cleaning system for counter spindle collet
  • -mechanical preparation for oil mist filter
  • -electrical and software preparation for bar loader
  • -angular synchronism between main and counter spindle
  • -2 additional on/off outputs (4 M-functions)
  • -automatic shut down
  • -polygonal turning software
  • -constant cutting speed and rigid tapping
