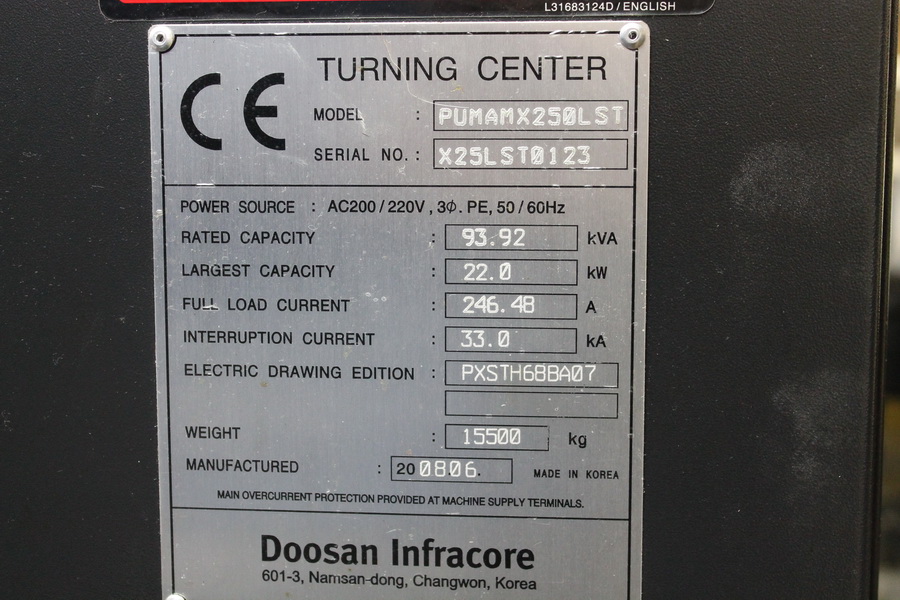

Doosan Puma MX2500LST 2008

machine specifications

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Chuck Size (Inches):

  8"

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Pallet Size (inches):

  25"

• Bar Stock Capacity:

  2.0"

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• A-Axis Travel:

  61.6"

• B-Axis Travel:

  9.4" +/- 4.7"

• C-Axis Rotation:

  360° in .001 Increments

• Y-Axis Travel:

  6.3" +/-3.15"

• Z2-Axis Travel:

  64.5"

• Spindle Speed:

  12,000 RPM

• Spindle Hole:

  3.38"

• Max Swing (inches):

  17.32"

• Tool Changer Type:

  60 ATC

• Swing Over Saddle:

  23.6"

• Max Turning Diameter:

  21.25"

• Max Turning Length:

  59.8"

• Max Milling Upper Spindle Speed:

  10,000 RPM

• Milling Spindle Taper:

  Capto C6

• Max Tool Speed Lower Turret:

  4000 RPM

• Cutting Feedrates:

  19 IPR

• Electrical Requirements:

  220/3/60 94 kVA
