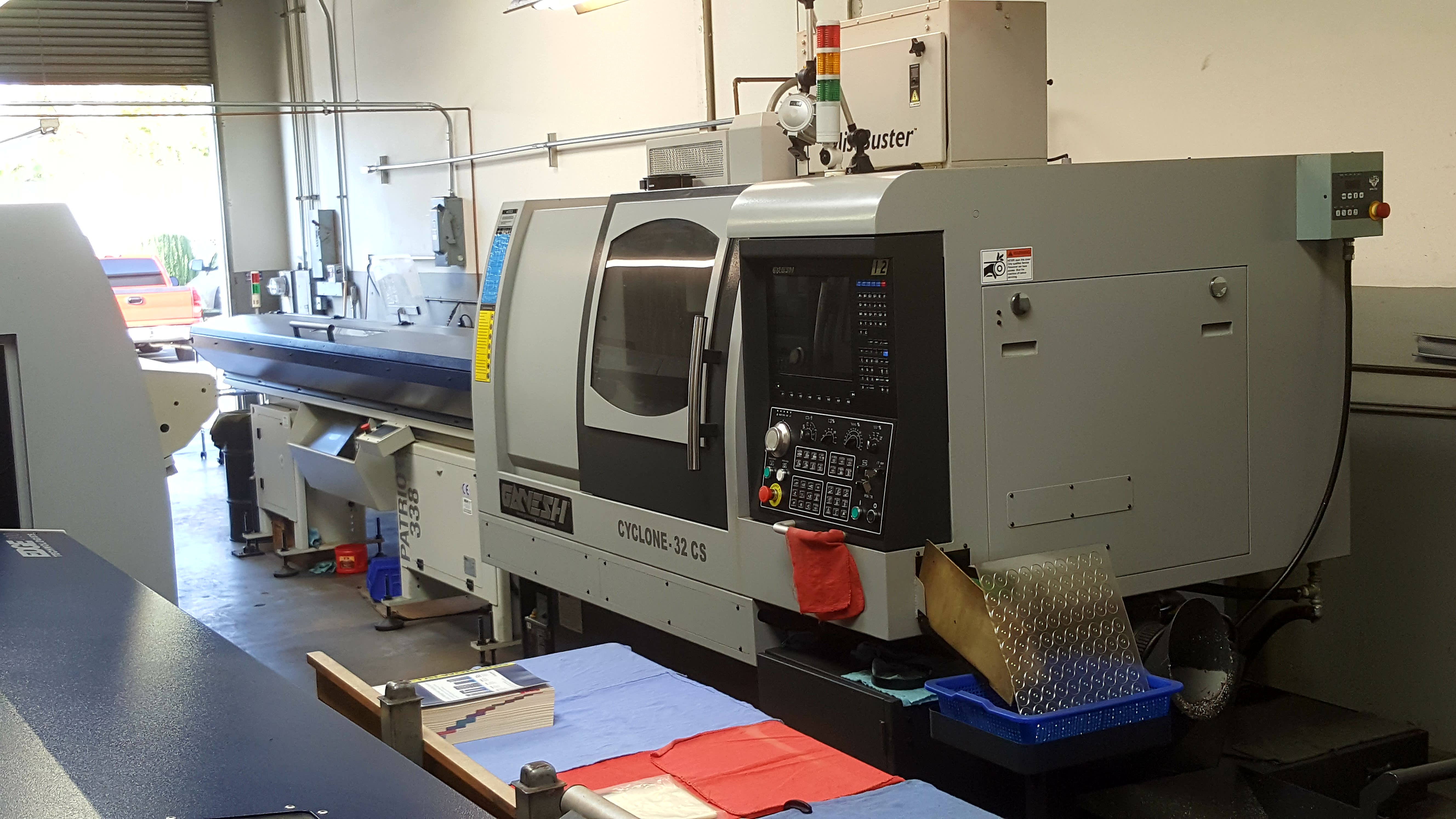

Ganesh Cyclone 32CS 2014

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Throat Depth:

  9.45"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  10 HP

• Max. Barstock Diameter:

  1.25"

• Rapid Travel Speed:

  1180 IPM

• Min. Input Unit:

  0.00005"

• OD Turning Tool Positions:

  6 OD Tools (1/2" or 12mm)

• ID Turning Tool Positions:

  5 ID Tools

• OD Turning Tool Size:

  1/2" or 12mm

• ID Turning Tool Bore Size:

  .99" or 25mm

• Spindle Center Height:

  38"

• Sub Spindle- Motor:

  5 HP Continuous Duty (7.5 HP Peak)

• Sub Spindle - Max. Barstock Diameter:

  1.25" .

• Sub Spindle - RPM:

  6,000

• Sub Spindle X-Axis:

  11.53:"

• Sub Spindle Z-Axis:

  11.61"

• Min. Input Unit:

  .00005"

• Cross Slide:

  4 Cross Slide Live Tools

• Front Slide:

  3 Front Slide Live Tools

• Live Tool Collet Size:

  ER-20 Collet, 1/2" (13mm) Tool Shank

• Coolant Pump:

  Dual Coolant Pumps (3/4 HP & 1/4 HP)
