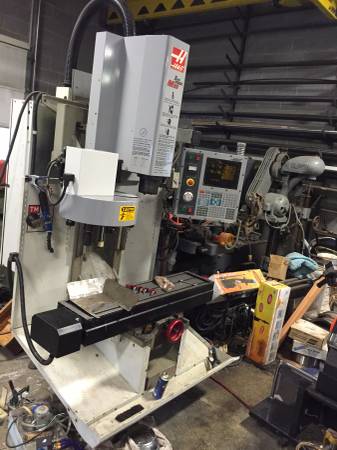

Haas TM1 2002

machine equipped with

• Toolroom Mill; 30" x 12" x16" (762 x 305 x 406 mm)

• 40 taper

• 7.5 hp (5.6 kW)

• 4000 rpm

• Weight 3500 Lbs TRAVELS S.A.E. METRIC X Axis 30 " 762 mm Y Axis 12 " 305 mm Z Axis 16 " 406 mm Spindle Nose to Table (~ max) 20 " 508 mm Spindle Nose to Table (~ min) 4 " 102 mm TABLE S.A.E. METRIC Length 47.75 " 1213 mm Width 10.5 " 267 mm T-Slot Width 5/8 " 16 mm T-Slot Center Distance 4.00 " 101.6 mm Number of Std T-Slots 3 3 Max Weight on Table (evenly distributed) 1000 lb 454 kg SPINDLE S.A.E. METRIC Max Rating 7.5 hp 5.6 kW Max Speed 4000 rpm 4000 rpm Max Torque 33 ft-lb @ 1200 rpm 45 Nm @ 1200 rpm Drive System Direct Speed Belt Drive Direct Speed Belt Drive Taper CT 40 Bearing Lubrication Grease packed Grease packed Cooling Air Cooled Air Cooled FEEDRATES S.A.E. METRIC Rapids on X 200 in/min 5.1 m/min Rapids on Y 200 in/min 5.1 m/min Rapids on Z 200 in/min 5.1 m/min Max Cutting 200 in/min 5.1 m/min AXIS MOTORS S.A.E. METRIC Max Thrust X 2000 lb 8896 N Max Thrust Y 2000 lb 8896 N Max Thrust Z 2000 lb 8896 N GENERAL S.A.E. METRIC Air Required 4 scfm

• 100 psi 113 L/min

• 6.9 bar Almost all parts machined on this machine since new has been plastic parts so no hard load hours. It has a 10 tool changer on it and has a ver small foot print with a wide range of X

• Y

• and Z travel on it.
