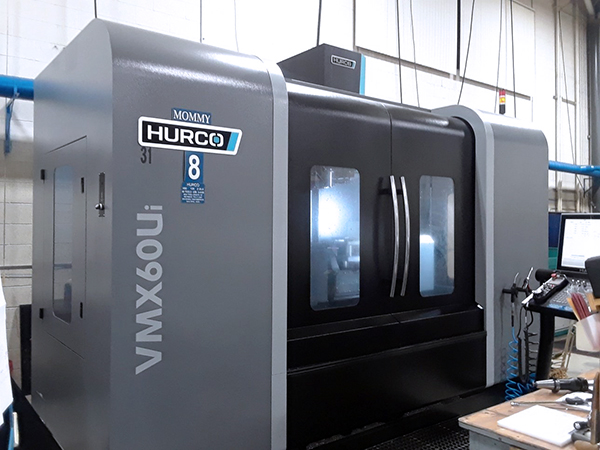

Hurco VMX60Ui 2015

machine specifications

• Max Spindle Speed:

  12,000 rpm

• Rapid Traverse (Z):

  1000 IPM

• Rapid Traverse (X/Y):

  1260 IPM

• Max Tool Weight:

  15.4 lb

• Max Tool Length:

  11.8"

• Max Tool Diameter:

  3"

• Number of Tools:

  40

• Tool Type:

  CAT 40

• Spindle Torque:

  175 ft. lbs @ 720 rpm (peak - 1 min)

• Peak Spindle Motor:

  24 hp (18 kW)

• X-Axis Travel:

  14.3"

• T-Slot Size:

  5" x .71"

• Max Weight on Rotary/Trunnion Table:

  880 lbs

• Table Diameter:

  19.7"

• Spindle Nose to Table:

  3.5" / 24"

• C-Axis Travel:

  360°

• A-Axis Travel:

  +30°/-110°

• Z-Axis Travel:

  43.5"

• Y-Axis Travel:

  26"
