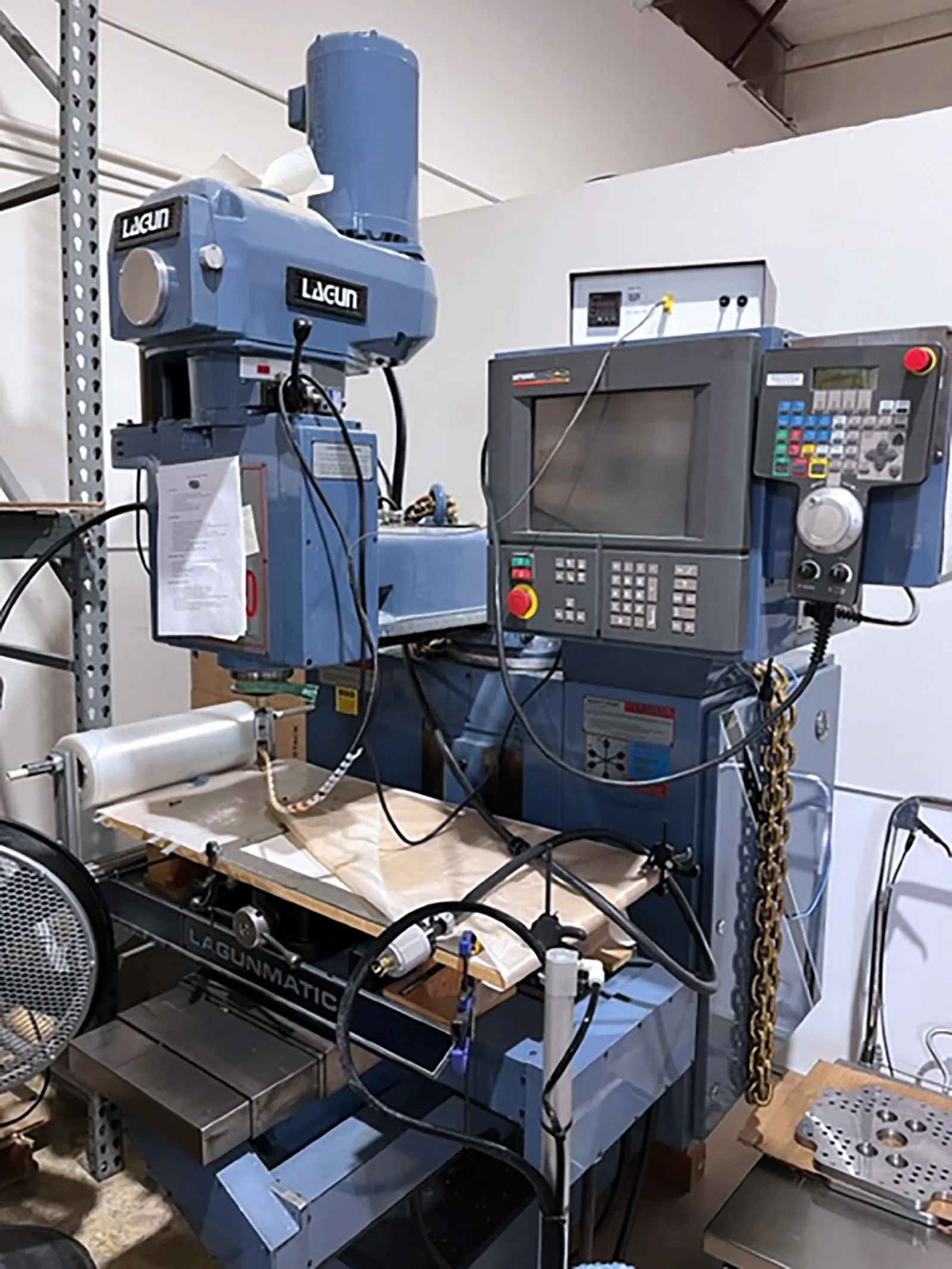

Lagun Lagunmatic 250 1996

machine specifications

• Table Working Surface:

  10" x 44"

• Table Size:

  16" x 48"

• Table Load Capacity:

  1000 lbs

• Longitudinal Travel (X-Axis):

  27"

• Cross Travel (Y-Axis):

  15"

• Vertical Travel (Z-Axis) Spindle:

  6.5"

• Vertical Travel (Z-Axis) Knee (Manual):

  16"

• Maximum Clearance Table Top to Spindle Nose:

  18.25"

• Spindle Taper:

  40

• Spindle Motor:

  3 HP

• Feed Rates, All Axes:

  0.1 to 250 IPM

• Rapid Traverse Rate All Axes:

  350 IPM

• Spindle Speeds Range:

  60-4250 RPM

• Approximate Machine Dimensions:

  5" L x 4" W x 9" H

• Approximate Machine Height:

  99"

• Approximate Machine Weight:

  4,500 lbs

• Electrical:

  240V, 3PH,60HZ
