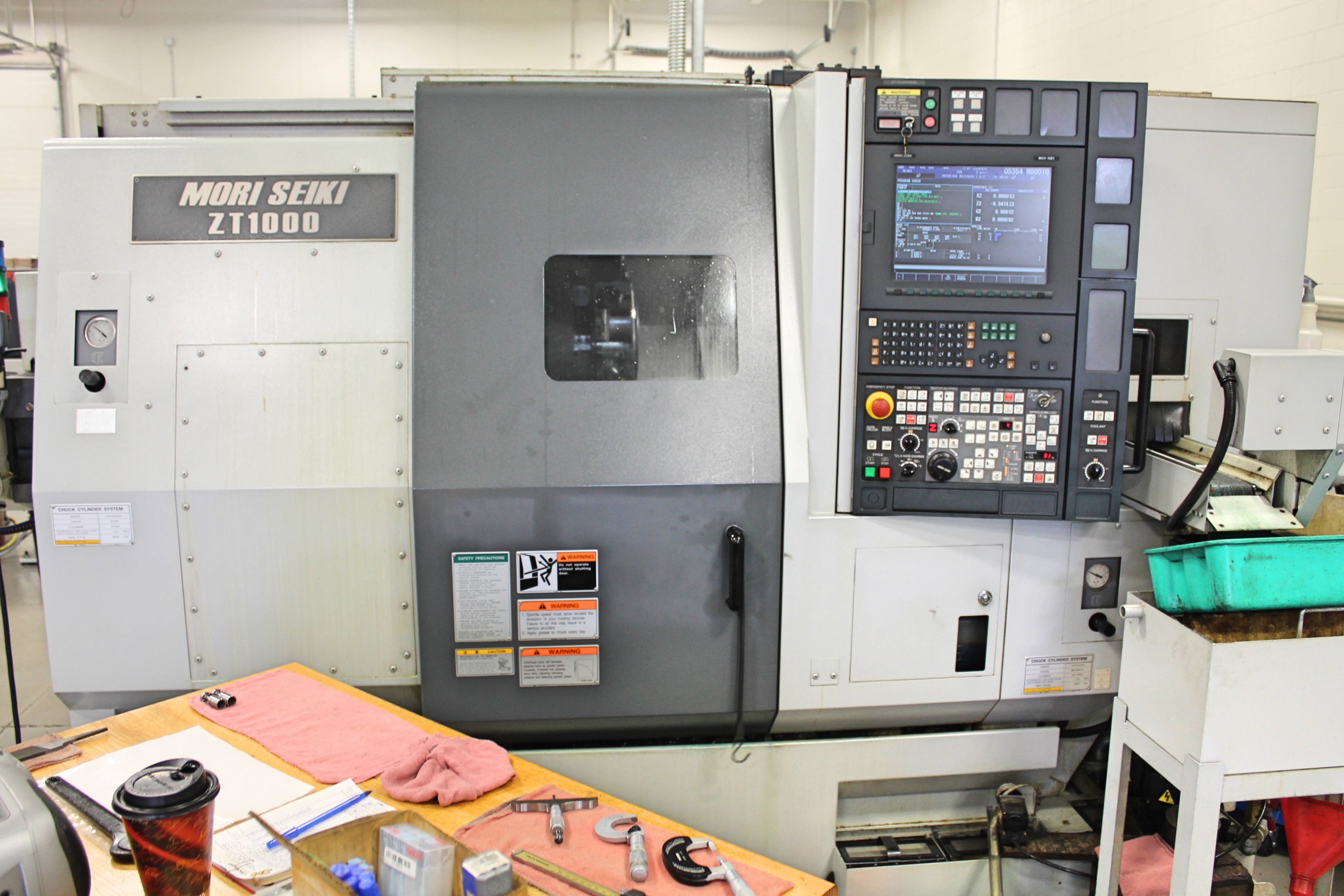

Mori Seiki ZT-1000Y 2004

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• B-Axis Travel (Spindle 2):

  20.7"

• C - Axis Indexing:

  L 0.001 degree

• Max Swing (inches):

  17.32"

• Spindle Motor (HP):

  15 HP

• Spindle Speed:

  12,000 RPM

• Distance between Spindle Noses:

  29.5"

• Rapid Traverse Rate X/Z Axes:

  708/945 IPM

• Rapid Traverse Rate B/Y Axis:

  945/236 IPM

• Live Tool Speeds (Upper/Lower):

  100 – 6,000 RPM

• Max Turning Diameter:

  7.4"

• Resonator ( Type ):

  55

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Throat Depth:

  9.45"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Chuck Size (Inches):

  8"
