This Machine has been sold and is No longer Available... Find similar machines below

Sold Image

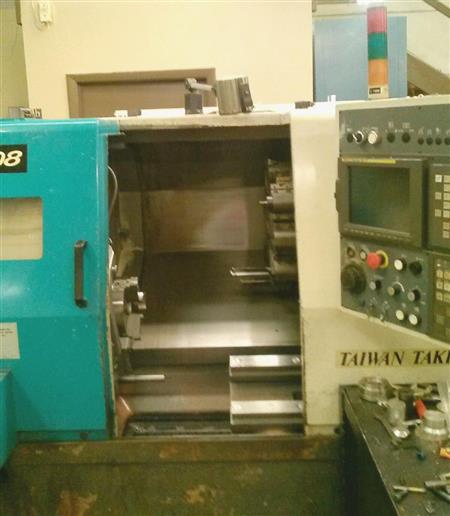

Taiwan-Takisawa EX-108 2001 1

Taiwan-Takisawa EX-108 2001

Loading highlight...

  • MODEL: EX-108

  • CONTROL: Fanuc 21iT

  • REF #:

Sell Similar Machine

Get a quote to sell your machine
Buy Similar / Same Machine

View available similar machines
Activate Search Agent

We'll help you find what you need

machine specifications

  • Chuck Size (Inches):

    8"

  • Max Swing (inches):

    17.32"

  • X - Axis Travel (inches):

    15.7" / 400mm

  • Y - Axis Travel (inches):

    15.7" / 400mm

  • Z - Axis Travel (inches):

    14.7" / 375mm

  • Pallet Size (inches):

    25"

machine equipped with

  • Fanuc Drives & Spindle Motors 8" Howa 3 Jaw Hydraulic Chuck Servo Driven Hydraulic Turret Programmable Tailstock Quill Hydraulic Unit All Available Tooling & Manuals Chip Conveyor Parts Catcher Barfeeder Interface Tool Box Cycle Finish Light 400W Coolant

machine description

Chuck Size 8" Hydraulic Chuck Maximum Swing 15.75" Swing Over Bed 12.5" Max. Machining Diam. x Length 12.5" x 20.75 Distance Between Centers 25.25 X-Axis Travel 7" Z-Axis Travel 20.75" Spindle Motor 30 Min. / Cont. 14.7 HP / 10 HP Spindle Speed 30 - 4,000 RPM Spindle Nose/Spindle Bore/Bar Cap. A2-6"/2.5"/2.00" Turret Type 12 Position Turret Height Sq. Tool/Diam. Boring Holder 1" / 1.5" Tailstock Quill Dia. / Center 3.5" / MT # 5 Tailstock Body Stroke/Quill Stroke 17" / 4" Rapid Traverse X / Z 787 IPM / 944 IPM Machine Dimensions 88"x70"x65" Machine Weight 9,460 lbs.
