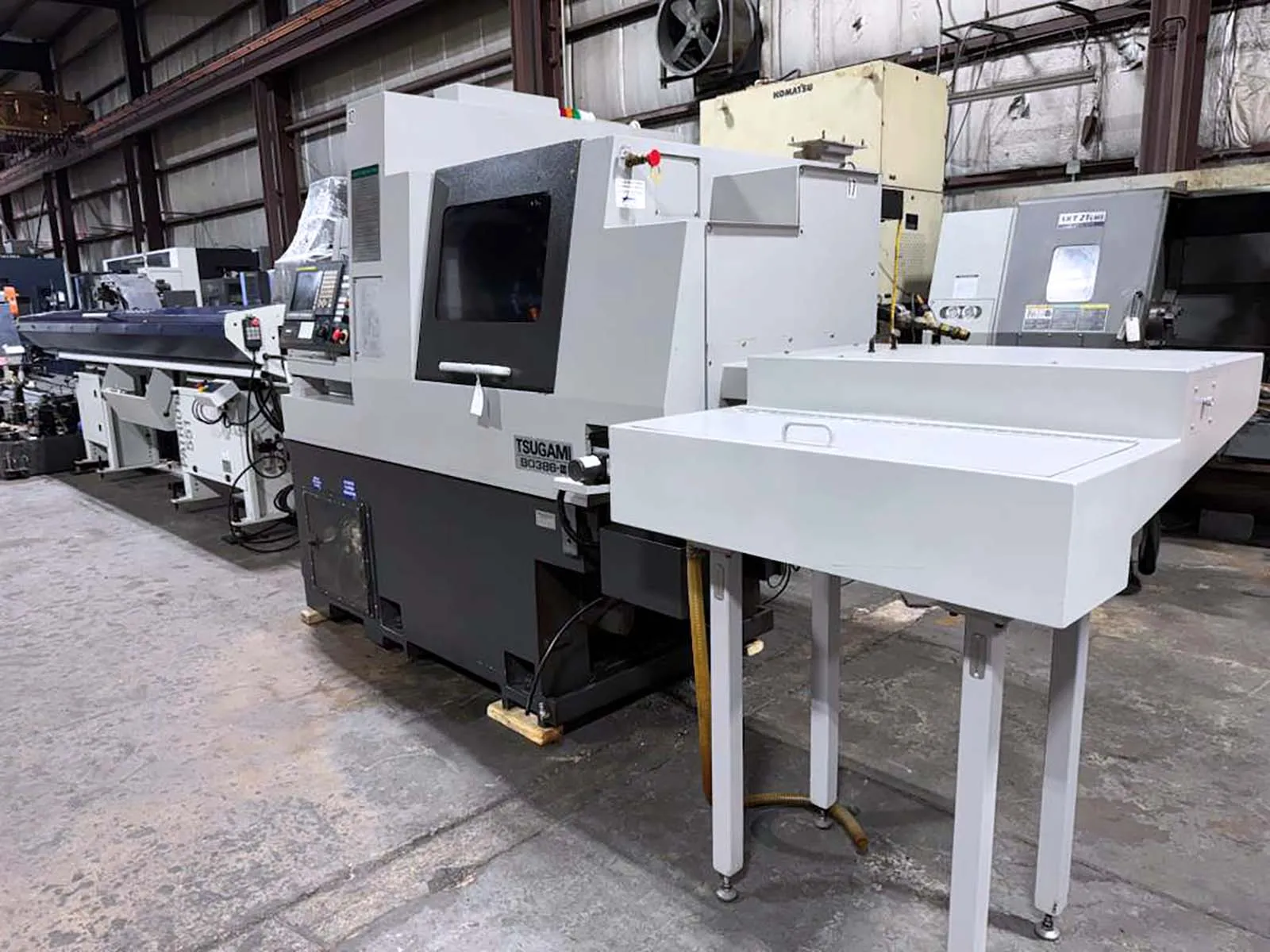

Tsugami BO386-III 2018

machine specifications

• High Speed Rapid Traverse:

  1260 IPM

• Max Bar Capacity:

  1.5″ (38 mm)

• Max tool positions:

  29

• Max. Drilling Diameter:

  0.511″ (13 mm)

• Max. tapping diameter:

  M12

• Main Spindle Indexing:

  360° (Full C-Axis)

• Main Spindle Speed:

  200 – 6.000 RPM

• Main Spindle Motor:

  11 kw

• Back Spindle Indexing:

  360° (Full C-Axis)

• Back Spindle Speed:

  200 – 7,000 RPM

• Back Spindle Motor:

  5.5 kw

• Front turning stations:

  5

• Back turning stations:

  5

• Front drilling head stations:

  5

• Turning stations:

  2

• Live cross mill stations:

  4

• Live sub milling stations:

  8

• Driven Tool Speed:

  200 – 6,000 RPM

• DRIVEN TOOL MOTOR:

  1.4 kw

• Power Source:

  AC 220v / 3-Phase /60 Hz

• Power Requirement:

  22.4 kva

• High without Bar Feeder:

  88″ X 60″ X 81″

• Weight:

  10,694 lbs. Approx.
