This Machine has been sold and is No longer Available... Find similar machines below

U.S. Industrial 88 TON X 10 2013

MAKE: U.S. Industrial
YEAR: 2013
TYPE: N/A

MODEL: 88 TON X 10

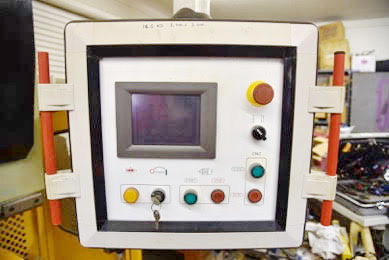

CONTROL: CNC 2-axis Color Graphic Computer Control
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine equipped with

STANDARD EQUIPMENT: (All of the following comes with the machine) • Ram Deflection Adjustment • Mechanical Ram Depth Control • Massive Torsion Bar for Parallelism • Forged Heavy Duty Cylinder and Cylinder Body • Three Speed Ram • Rapid Approach
Bending Cycle and Rapid Retreat • Bottom Time Delay • All Steel Construction • Inching
Single Cycle and Continuous Operation • Ram takes standard American Tang Tooling (1/2” x 5/8”) • Space between Ram Tool Clamps allows for deep box bending • Bed has slot for standard American tang tooling • Bed also holds tooling with capture clamps • Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel

machine description

SPECIFICATIONS: • Working Pressure: 88 Tons • Pressing Speed: Dependent on Tool Load • Length of Working Table: 125.9” • Hydraulic Oil Capacity: 79 Gal. • Distance Between Housings: 106.2” • Motor Horsepower: 10 HP • Throat Depth: 9.8” • Net Weight: 14,332 lbs. • Stroke Adjustment of Ram: 1.96” • Length: 148” • Ram Travel: 3.93” • Width: 64” • Open Height: 13.7” • Height: 90” • Rapid Ram Travel Speed: 2.4”/sec. • Rapid Ram Retreat Speed: 2.0”/sec. • Backgauge Travel: 24”
