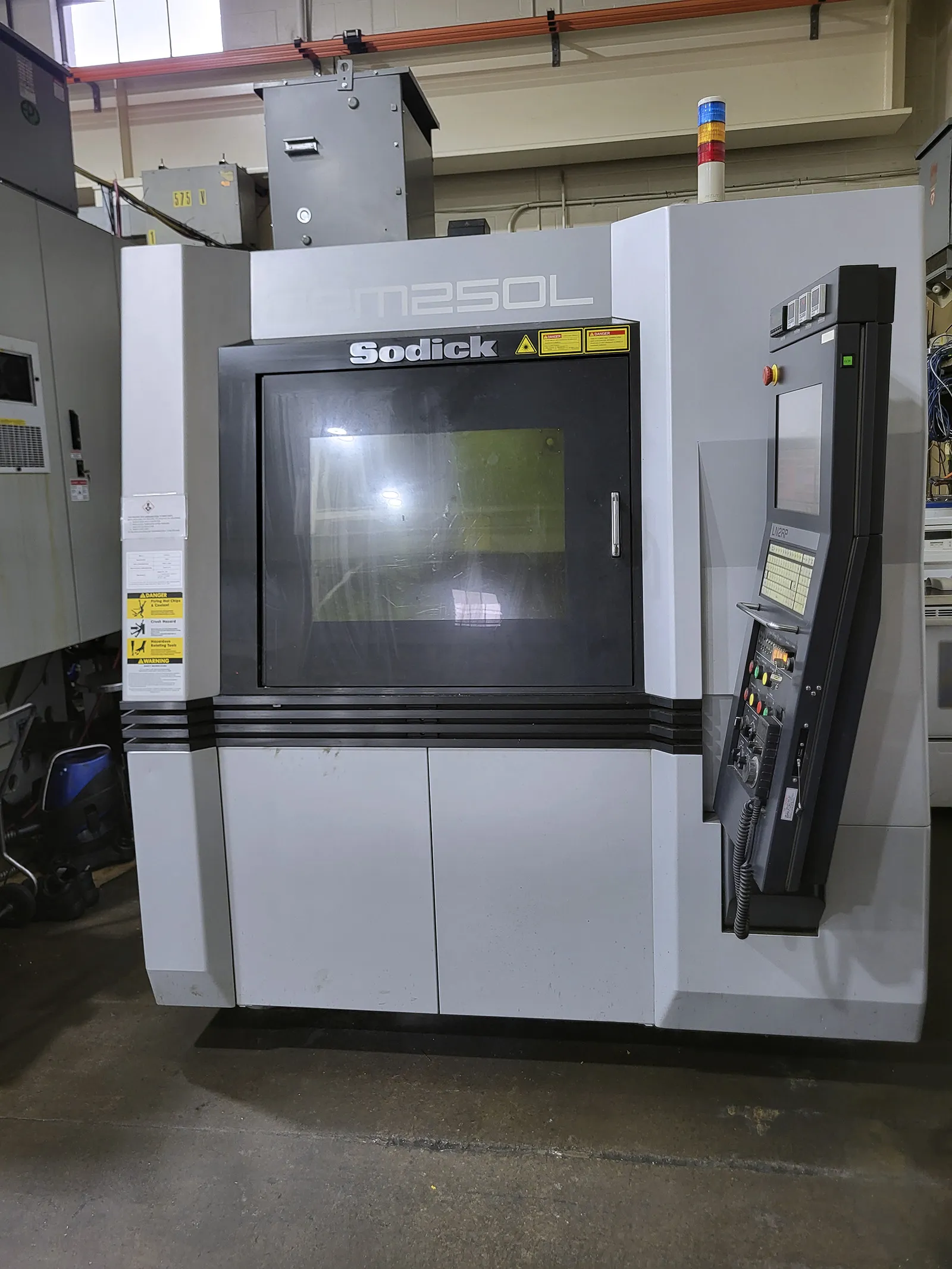

Sodick OPM250L 2016

machine specifications

• Max Spindle Speed:

  45,000 RPM

• X-Axis Travel:

  10.24" (260 mm)

• Y-Axis Travel:

  10.24" (260 mm)

• Z-Axis Travel:

  10.24" (260 mm)

• Spindle Z-Axis Stroke:

  3.94" (100 mm)

• Tool Holder Type:

  HSK-E25 (Dual face contact)

• Max Workpiece / Build Size:

  9.84" x 9.84" x 9.84"(250mm x 250mm x 250 mm)

• Molding Tank Inner Dimensions::

  11.42" x 11.42"(290mm x 290 mm)

• Max Workpiece Weight:

  220 lbs (100 kg)

• Laser Type:

  Yb (Ytterbium) Fiber Laser

• Max Laser Output:

  500 W

• Laser Wavelength:

  1070 nm

• Laser Scanning Method:

  Galvano Method

• Power On Time:

  20779 Hrs

• Cut Time:

  1244 Hrs

• Laser Time:

  3173 Hrs

• Spindle Time:

  1712 Hrs

• Overall Machine Dimensions:

  73.62" x 87.80" x 80.91" (1,870mm x 2,230mm x 2,055 mm)

• Machine Weight:

  9,920 lbs (4,500 kg)
