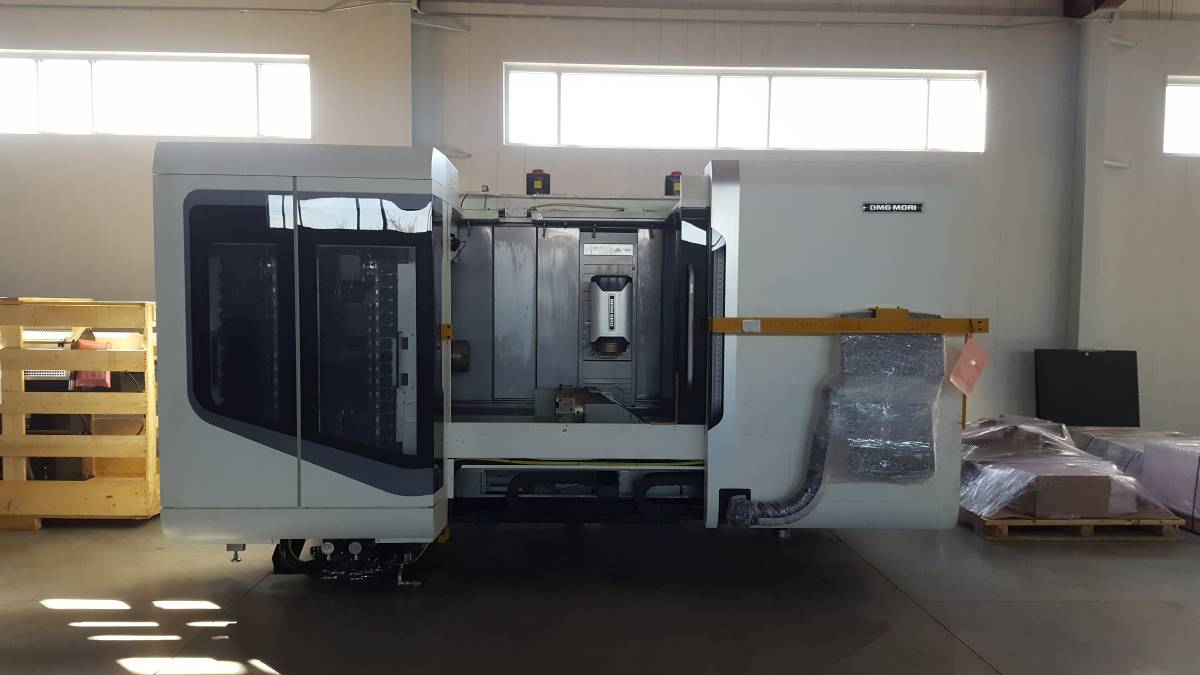

Mori Seiki DMG NTX2000/1500SZM 2016

machine specifications

• Z - Axis Travel (inches):

  14.7" / 375mm

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - L:

  61"

• Maximum Workpiece Swing:

  25.9"

• Swing Over Cross Slide, Standard:

  25.9"

• Swing Over Cross Slide, Turret 2:

  11.8"

• Maximum Turning Diameter, Standard:

  24.0"

• B-Axis 90 Deg:

  25.9"

• Maximum Turning Diameter, Turret 2:

  10.7"

• Maximum Turning Length:

  60.6"

• Bar Work Capacity:

  2.5"

• For 3.1" Bar Work Capacity Specifications:

  3.1"

• X Travel:

  19.5"

• Y Travel:

  4.9"

• Z Travel:

  61.4"

• B Travel:

  120 Deg.

• X2 Travel:

  6.3"

• Z2 Travel:

  55.2"

• Spindle 1, Speed:

  5,000 RPm

• Spindle 1, Nose:

  A2-6

• Spindle 1, Through-Spindle Hole Diameter:

  2.9

• Spindle 1, Minimum Spindle Indexing Increment:

  0.0001 Deg.

• Spindle 1, Spindle Torque - High-Torque (Ft-Lbf):

  (264.0/170.4/157.8)

• Spindle 2, Speed:

  5,000 RPM

• Spindle 2, Nose:

  A2-6

• Spindle 2, Through-Spindle Hole Diameter:

  2.9"

• Spindle 2, Minimum Spindle Indexing Increment:

  0.0001 Deg.

• Turret 1, Number Of Tool Stations:

  1

• Turret 1, Minimum B-Axis Indexing Increment:

  0.0001 Deg.

• Turret 1, Maximum Tool Spindle Speed:

  12,000 RPM

• Turret 1, Taper Hole Of Rotary Tool Spindle:

  Capto C6

• Turret 1, Tool Storage Capacity:

  76 ATC

• Turret 1, Tool Changing Time (Tool-To-Tool):

  1.25 sec.

• Turret 2, Number Of Tool Stations:

  10

• Turret 2, Turret Indexing Time:

  .19 sec.

• Turret 2, Max. Rotary Tool Spindle Speed Min-1:

  6,000

• Turret 2, Spindle Torque (Ft·Lbf:

  3.5/1.7

• Spindle 1 Drive Motor 30 Min/Cont (Hp):

  30/24.7

• Spindle 2 Drive Motor 30 Min/Cont:

  30/24.7

• Tool Spindle Drive Motor 10 Min/Cont:

  24.7/15

• Turret 2 Rotary Tool Spindle Drive Motor (Hp:

  2/1.6

• Tool Storage Capacity:

  76 Tools 34,826 lb.
