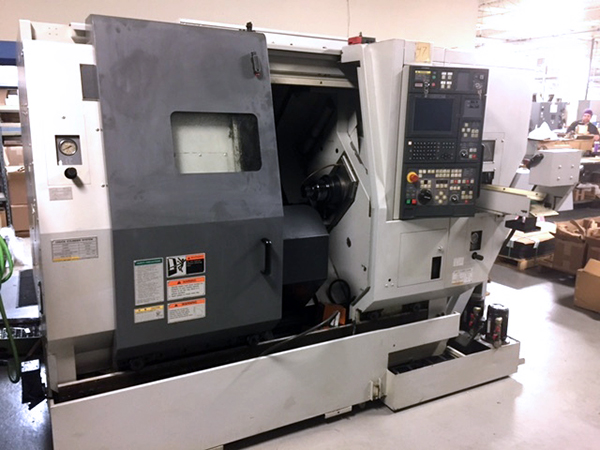

Mori Seiki ZT 1000Y 2002

machine specifications

• Max Swing (inches):

  17.32"

• Chuck Size (Inches):

  8"

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Spindle Speed:

  12,000 RPM

• Number of Turrets:

  16/16

• Turret Capacity:

  8 Positions

• X2 - Axis Travel:

  5.3"

• Z1 - Axis Travel:

  17.7

• Z2 - Axis Travel:

  17.3"

• B - Axis Travel Headstock Travel:

  20.7"

• C - Axis Travel Main / Sub:

  .001 Deg.

• Spindle Bore Capacity Main & Sub:

  1.9", 1.9"

• Spindle Nose:

  A2 - 5'

• Spindle Horse Power Main & Sub:

  10, 10 HP

• Max. Between Spindles:

  29.5"

• Bar Work Capacity Main / Sub:

  1.5"

• Rapid Traverse Rate X, Z, Y, B:

  708, 945, 236, 945 IPM

• Turret Indexing Time:

  0.2 secs.

• Rotary Tool Spindle Speeds:

  6000 RPM

• Rotary Tool Horsepower:

  7.5 HP
