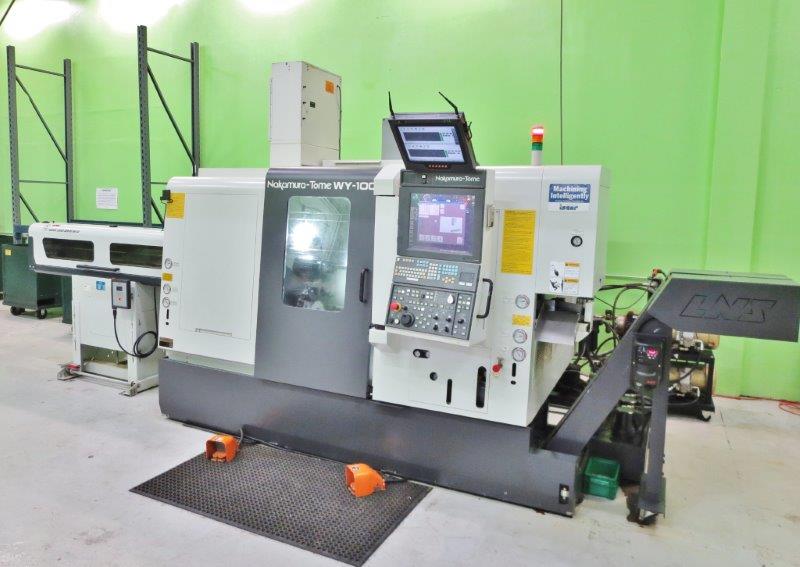

Nakamura-Tome WY-100 2014

machine specifications

• Max Swing (inches):

  17.32"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Vertical Travel of Ram:

  4444

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Table Size - L:

  61"

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Max Turning Diameter:

  6.89"

• Max Turning Length:

  23.15"

• Dist. Between Centers (inches):

  32.28"

• Bar Capacity Left Spindle:

  2.0"

• X-Axis (X1/X2):

  5.31"

• Z-Axis (Z1/Z2/Z3):

  9.6/9.6/22.75"

• Y-Axis (+31/-31) (Y1/Y2):

  2.44"

• B-Axis:

  24.41"

• Left Spindle Speed:

  5,000 RPM

• Left Spindle Nose:

  A2-5

• Left Spindle Hole:

  2.48"

• Left Spindle ID of Front Bearing:

  3.54"

• Left Spindle Hole Through Draw Tube:

  2.0"

• Right Spindle Speed:

  6,000 RPM

• Right Spindle Nose:

  A2-5

• Right Spindle Hole:

  2.20"

• Right Spindle ID of Front Bearing:

  3.15"

• Right Spindle Hole through Draw Tube:

  1.69"

• C-Axis Least Input Increment:

  0.001 Degree

• SIMULTANEOUSLY CONTROLLED AXIS:

  3 (X+Z+C) Axis

• UPPER & LOWER TURRET TOOL STATIONS:

  12 Stations (All live capable)

• UPPER & LOWER NUMBER OF INDEX POSITIONS:

  24 Positions

• TOOL SIZE - SQUARE:

  0.79"

• TOOL SIZE - ROUND:

  0.98"

• INDEX TIME - 1 STATION:

  0.2 Sec

• TOOLING CLEARANCE:

  19.09"

• RAPID TRAVERSE X1/X2:

  630 IPM

• RAPID TRAVERSE Z1/Z2/B2:

  1575 IPM

• RAPID TRAVERSE Y1/Y2:

  246 IPM

• CUTTING FEEDRATE X1/X2/Z1/Z2:

  189 IPM

• CUTTING FEEDRATE Y1/Y2:

  189 IPM

• LEFT SPINDLE MOTOR:

  15/10 HP

• RIGHT SPINDLE MOTOR:

  15/10 HP

• ROTATING TOOL SPINDLE MOTOR:

  9.5/3 HP
