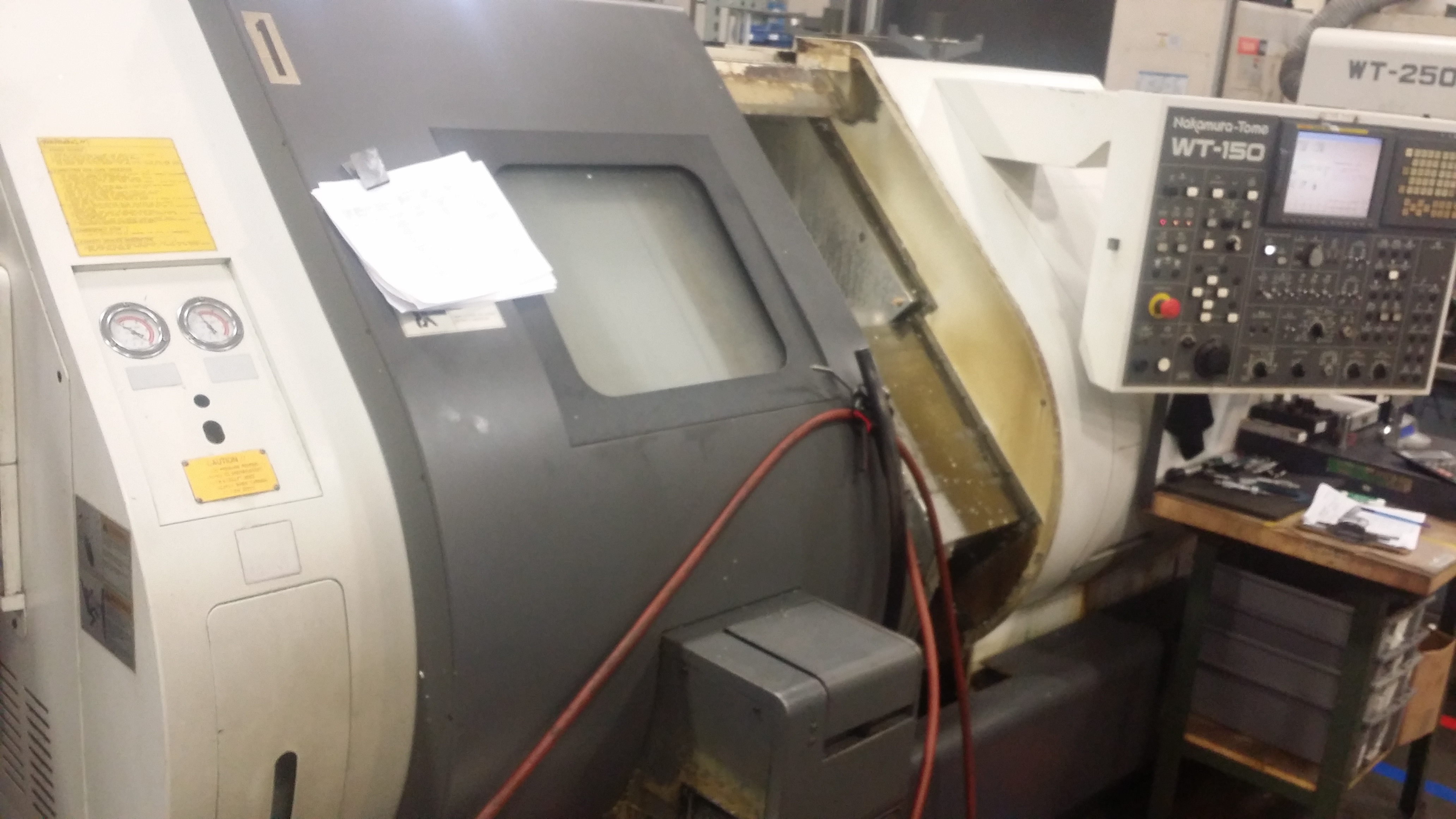

Nakamura WT150 2005

machine specifications

• Spindle Speed:

  12,000 RPM

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Number of Turrets:

  2 Drum Turrets

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Pallet Size (inches):

  25"

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Table Size - L:

  61"

• Max Turning Diameter:

  7.480"

• Standard Turning Diameter:

  6.692"

• DISTANCE BETWEEN CENTERS:

  MAX 29.52" MIN 7.874"

• Max Turning Length:

  19.803"

• Bar Capacity:

  2.007"

• SLIDE TRAVEL X1/X2:

  6.2007"/6.594"

• Slide Travel Z1/Z2:

  18.307" EACH

• Slide Travel Y:

  +/- 1.377"

• SLIDE TRAVEL B:

  21.653"

• Rapid Feed X1/X2:

  52.49' / Min.

• Rapid Feed Z1/Z2:

  131.2' / Min.

• RAPID FEED B AXIS:

  131.2' / Min.

• RAPID FEED Y AXIS:

  19.69' / Min.

• Spindle Nose:

  A2-5

• Hole Through Spindle:

  2.480"

• HOLE THROUGH DRAW TUBE:

  2.047"

• C-Axis LEAST INCREMENT INPUT:

  0.001 DEGREES

• LEAST COMMAND INCREMENT:

  0.001 DEGREES

• C-Axis RAPID INDEX SPEED:

  600 RPM

• C-Axis CUTTING FEED RATE:

  1 TO 4800 RPM

• C AXIS CLAMP:

  DISK CLAMP

• C AXIS ENGAGE TIME:

  1.5 SEC

• TYPE OF TURRET HEAD:

  DODECAGONAL DRUM TURRET X 2

• NUMBER OF INDEXING POSITIONS:

  24 X 2

• Tool Size:

  SQUARE SHANK 1"

• Tool Size:

  ROUND SHANK 1.259"

• ROTARY SYSTEM:

  INDIVIDUAL ROTATION

• SPINDLE SPEED RANGE:

  STEP LESS

• NUMBER OF DRIVEN TOOL STATIONS:

  12 X 2

• TOOL SHANK STRAIGHT HOLDER:

  .039" - .63"

• TOOL SHANK CROSS HOLDER:

  .039" - .63"

• LEFT SPINDLE:

  15/11 KW 113.4/83.1 N.M

• RIGHT SPINDLE:

  11/7.5 KW 83.1/56.7 N.M

• DRIVEN TOOLS:

  5.5/3.7 KW 24/16 N.M X 2
