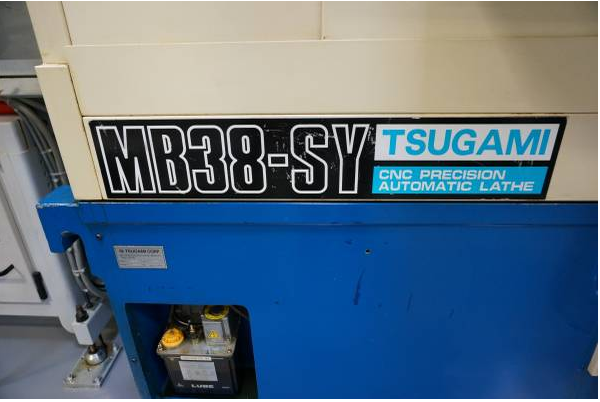

Tsugami MB38SY 2004

machine specifications

• Spindle Motor (HP):

  10/14.7 HP

• Spindle Taper (CAT/BT):

  HSK-463

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Spindle Speed:

  12,000 RPM

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Pallet Size (inches):

  25"

• Cutting Hours:

  8,810 hrs 18 min

• Power On Hours:

  74,228 hrs 12 min

• Wire Traveling Speed:

  22

• Spindle Indexing:

  .001 degrees

• Indexing Time:

  T1: 0.2 sec/pos T2: 0.3 sec/pos

• Max Machining Length:

  4.92"

• Max Drilling Diameter:

  0.63"

• Max Tapping Size:

  1/2"

• Stock Diameter:

  1.5"

• Chuck Type:

  Collet Chuck
