machine specification

• BAR STOCK CAPACITY
• 2.5"

• TURRET CAPACITY
• 12

• MAX SWING (INCHES)
• 20.67

• CHUCK SIZE (INCHES)
• 10"

• SPINDLE MOTOR (HP)
• 25 HP

• SPINDLE SPEED
• 4,000 RPM

• MAX MACHINING DIAMETER
• 11.81"

• DISTANCE BETWEEN SPINDLE AND TURRET FACE
• 4.48" - 27.23"

• SPINDLE BORE / BAR WORK CAPACITY
• 3" / 2.5"

• TAILSTOCK CENTER
• MT #5

• TAILSTOCK MOVEMENT STROKE (BODY/SLEEVE)
• 15.75"/5.91"

• AXIS STROKE X/Y/Z
• 7.125"/22.75"/4"

• MILLING SPINDLE MOTOR
• 20/15 HP

• MILLING SPINDLE SPEED
• 1,000 RPM

• SPINDLE MOTOR
• 50 HP

• SPINDLE SPEED RANGE
• 35 - 4,000 RPM

• RAPID TRAVERSE (X/Y/Z)
• 1,180/1,180/473 IPM

• AXIS STROKE X/Y/Z
• 7.125"/22.75"/4"

• MATERIALS RAN
• Cold roll & Mild Steel

machine equipped with

• 11 SETS OF SOFT JAWS (MACHINED TO VARIOUS SIZES)
• 5 BORING BAR SLEEVES (VARIOUS SIZES)
• 10 MILL/DRILL COLLETS
• 6 LIVE TOOLING HOLDERS
• 3 BORING BAR HOLDERS
• 3 TOOL HOLDERS
• 4 STAGE AIR DRYER
• AVAILABLE MANUALS

machine description

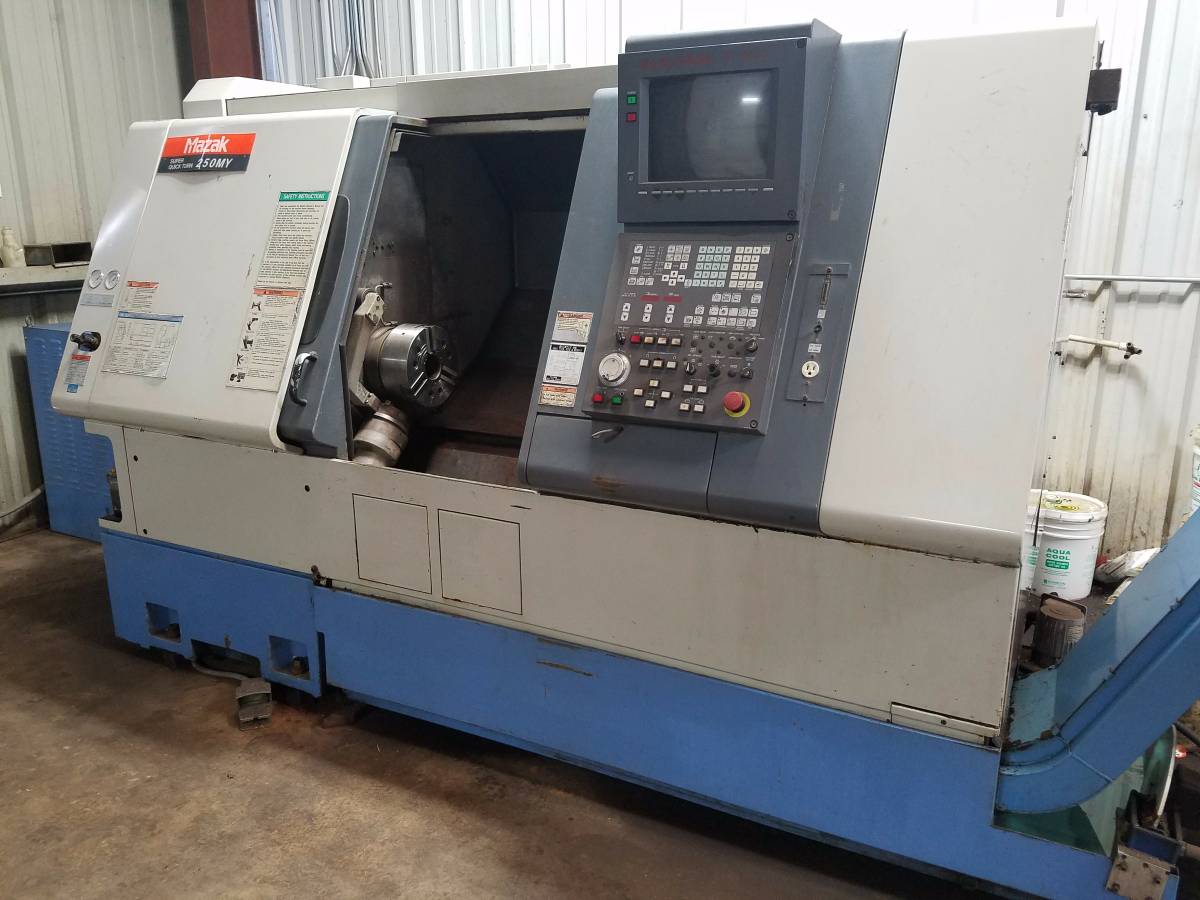

This used Mazak SQTMY 5 Axis Machine features a 10" chuck, a max swing of 21", and a 4000 RPM Spindle Speed. The machine also comes equipped with a 10" chuck, a 2.5" bar capacity, a chip conveyor, and a tailstock.
