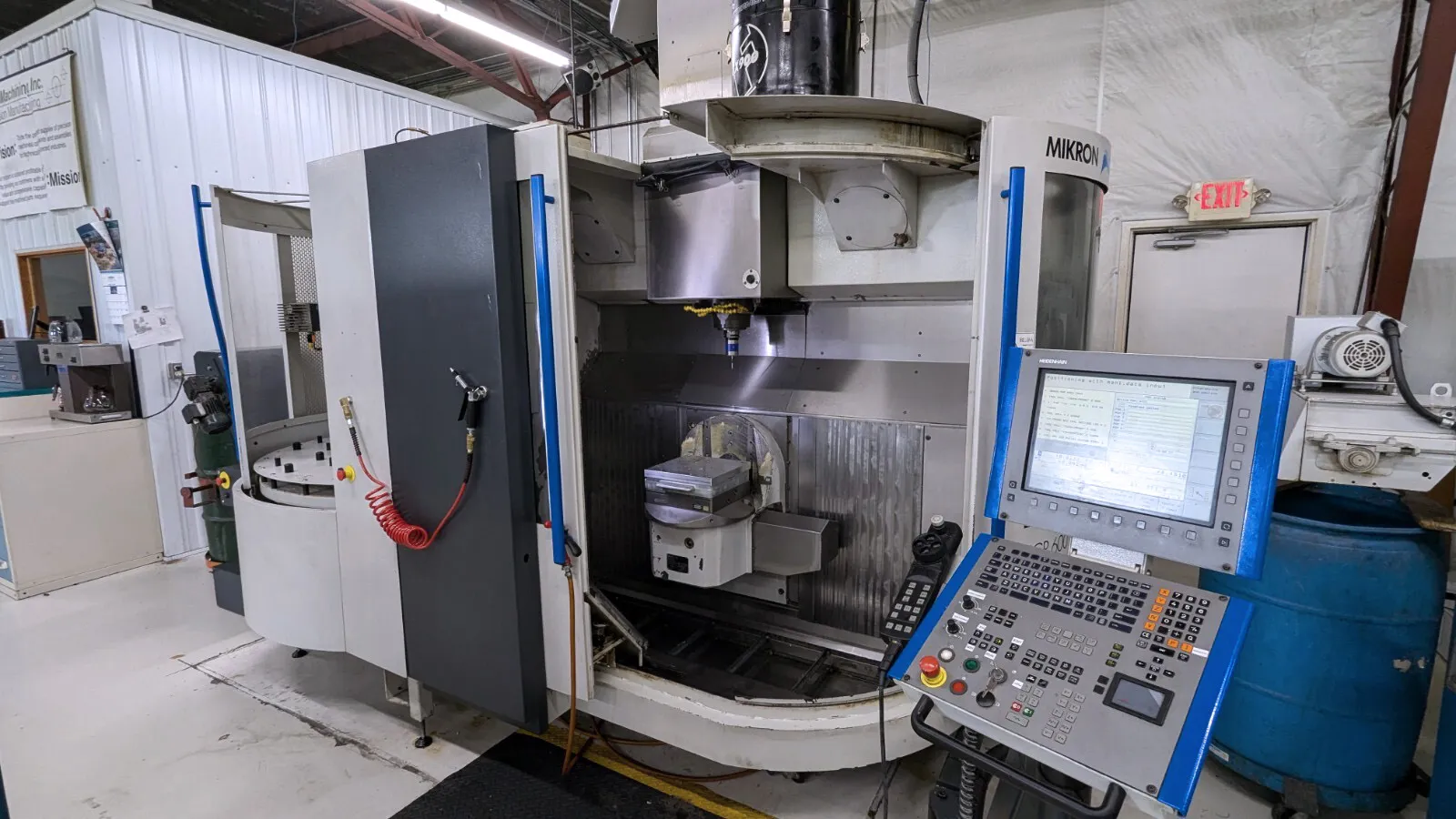

Mikron UCP 600 Vario 2008

machine specifications

• RPM:

  20,000

• Spindle:

  40HP HSK63A steptec

• ATC:

  30 tool ATC

• X-Axis Travel:

  24" (600 mm)

• Y-Axis Travel:

  17.7" (450 mm)

• Z-Axis Travel:

  17.7" (450 mm)

• B-AXIS Rotation:

  +30° / -115°

• C-Axis Rotation:

  360° Continuous

• Table Diameter:

  15.75" (400 mm)

• Maximum Workpiece Diameter:

  Approx. 24" (600 mm)

• Maximum Workpiece Height:

  Approx. 17.7" (450 mm)

• Maximum Table Load:

  440 lbs (200 kg)

• Rapid Traverse:

  1,600 ipm (40 m/min)

• Positioning Accuracy:

  ±0.0002" (with glass scales)

• Repeatability:

  ±0.0001"
