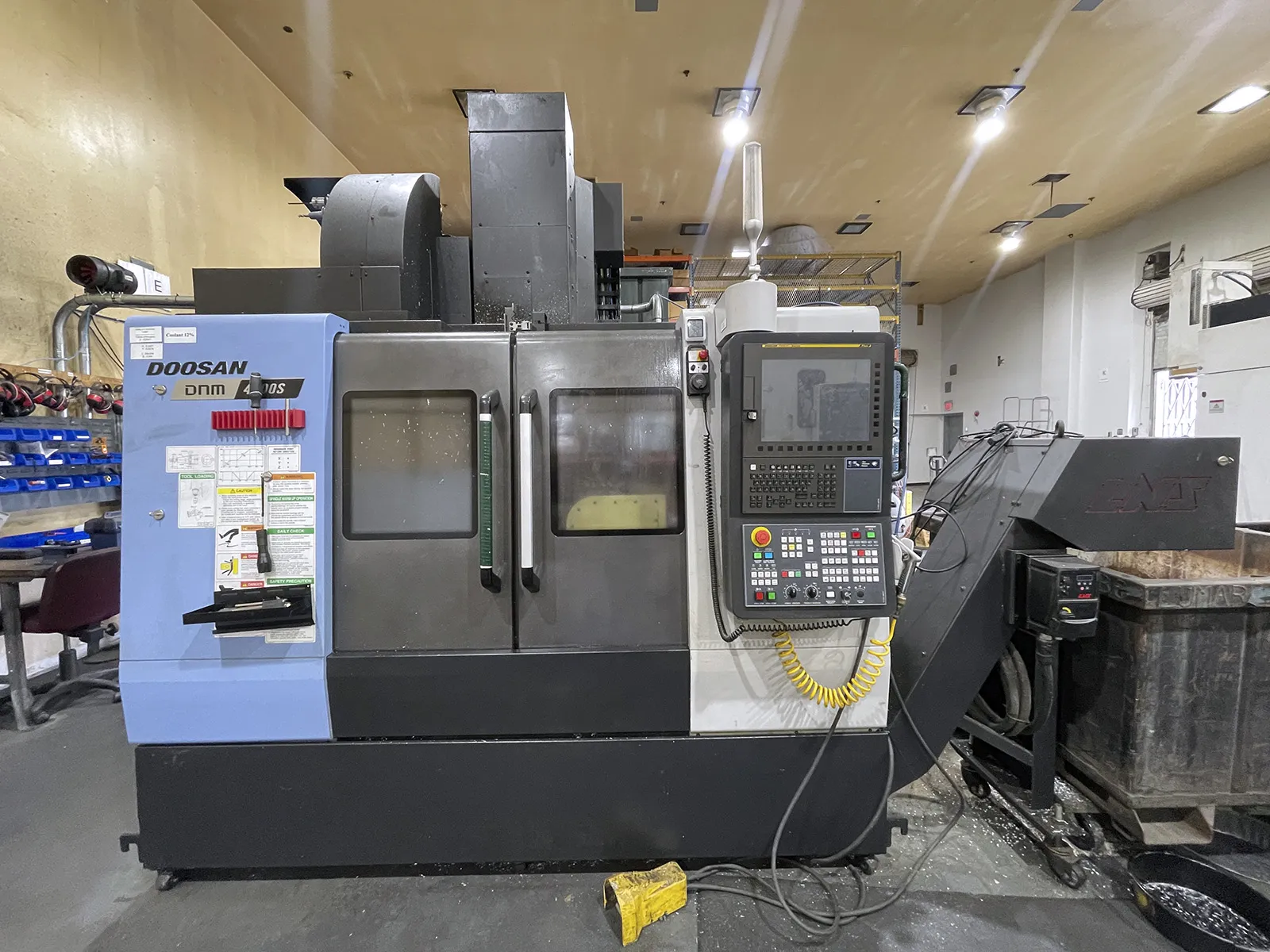

Doosan DNM 4500S 2021

machine specifications

• X Axis:

  35.43" (900 mm)

• Y Axis:

  17.72" (450 mm)

• Z axis:

  19.69" (500 mm)

• Spindle Motor:

  15 HP

• Table Size:

  41.34" × 17.72" (1,050 × 450 mm)

• Max Table Load:

  1,543 lbs (700 kg)

• T-Slot Width:

  18 mm

• Rapid Traverse (X/Y):

  1,417 IPM (36 m/min)

• Rapid Traverse (Z):

  1,181 IPM (30 m/min)

• Nikken Table Diameter:

  ~7.87" (200 mm)

• Tilt Range (A/B axis):

  10° to +110° (approx.)

• C-Axis:

  360° Continuous

• Max Load:

  ~220 lbs (100 kg)
