Name: Haas UMC-1000SS 2020
Brand: Haas
Availability: InStock

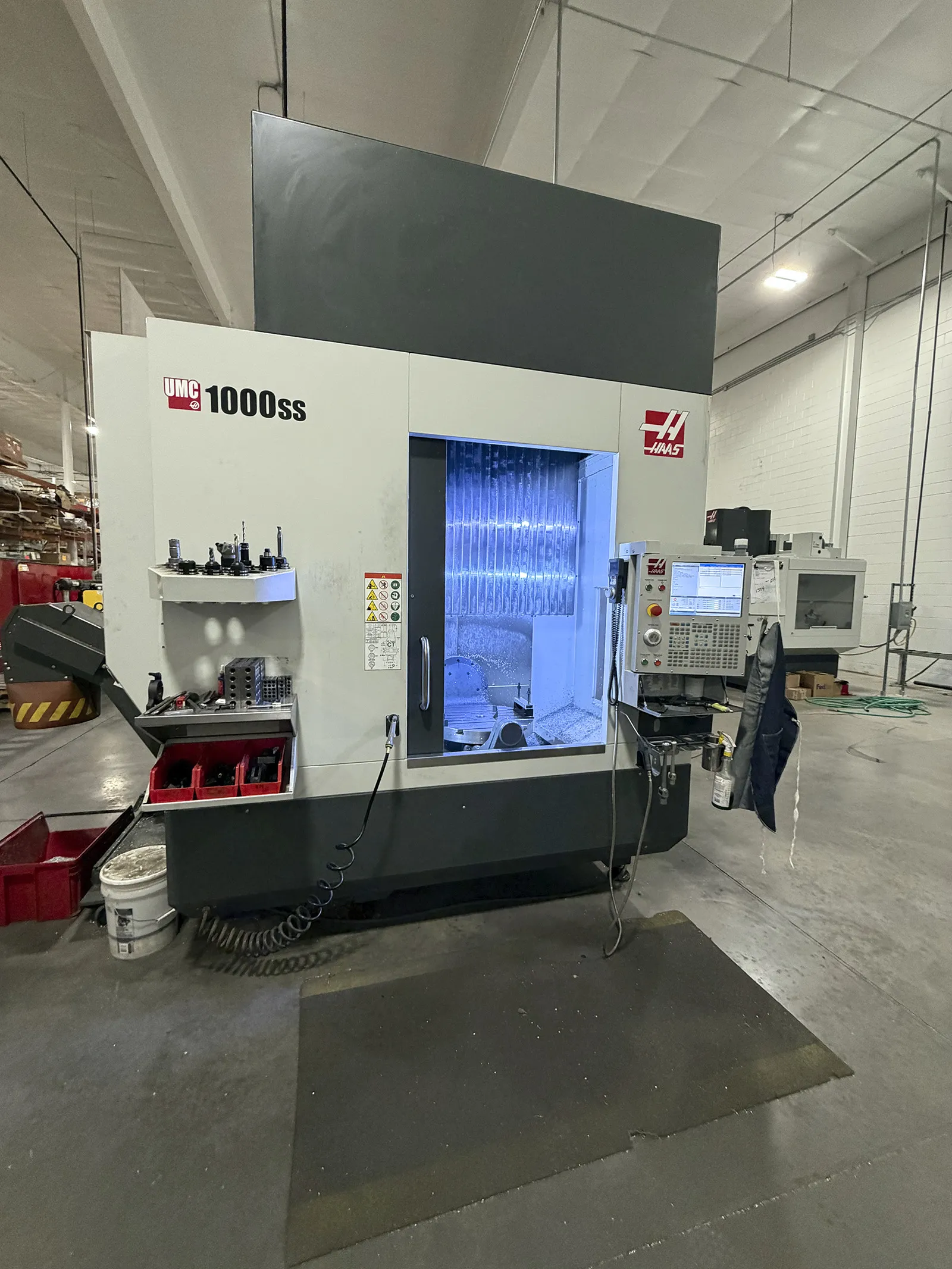

Haas UMC-1000SS 2020

Only 523 Runtime Hours!

request quote

Open price not currently available. Please Contact Us

MAKE: Haas
YEAR: 2020
TYPE: 5 Axis Machining Center

MODEL: UMC-1000SS
CONTROL: Haas
REF #: 3750074

machine specifications

X Axis:

40 in
Y Axis:

25 in
Z axis:

25 in
Spindle Nose to Platter (min/max):

4 in / 29 in
Max Rating:

30 hp
Max Speed:

12000 rpm
Max Torque:

90 ft-lbf @ 2000 rpm
Taper:

CT40
B-Axis Tilt:

120 ° to 35- °
Max Tilt Speed:

170 °/sec
Torque (Continuous):

2240 ft-lbf
Brake Torque:

2000 ft-lbf
C axis rotation:

360 °
C Axis - Max Tilt Speed:

179 °/sec
C Axis - Torque (Continuous):

1854 ft-lbf
C axis - Brake Torque:

900 ft-lbf
Max Part Swing:

34 in
Max Cutting Feedrate:

833 ipm
Rapids X/Y/Z:

1200 ipm
Max Thrust X/Y:

3300 lbf
Max Thrust Z:

4050 lbf
Read more

machine equipped with

High-Speed 50+1 Side-Mount Tool Changer
Belt-Type Chip Conveyor
95-Gallon Coolant Tank
Auxiliary Coolant Filter
Through Spindle Coolant
Programmable Coolant Nozzle
High Intensity Lighting
Wireless Intuitive Probing System (WIPS)
CNC Control Cabinet Cooler
Power Surge Protection
Early Power-Failure Detection Module
Second Home Position
ECO Mode
Advanced Tool Management
Media Display M-Code; M130
HaasConnect: Remote monitoring
Safe Run
HaasDrop
Standard High-Speed Machining
Dynamic Work Offsets and Tool Center Point Control
Rigid Tapping
1GB Program Memory
Read more

machine description

Maximize productivity with this Haas UMC-1000SS 5-axis machining center (2020), engineered for complex, multi-sided parts in a single setup. Ideal for aerospace, automotive, medical, and mold & die applications, it delivers high-speed, high-precision machining of intricate geometries, impellers, cylinder heads, and detailed components while reducing setups and improving overall efficiency.
