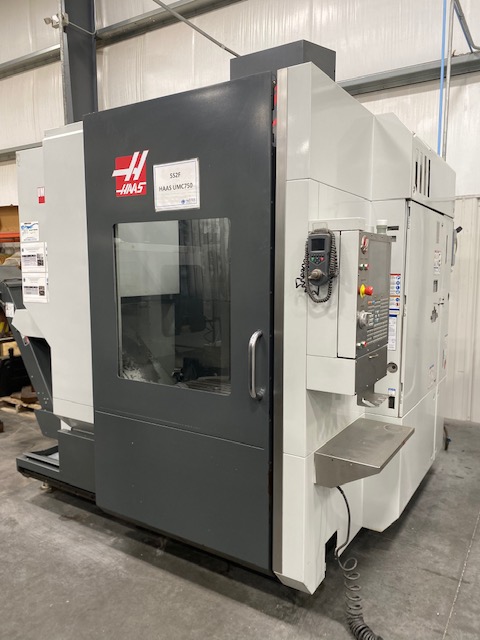

Haas UMC-750 2017

machine specifications

• Y-Axis Travel:

  20"

• Weight:

  18,000 LBS

• Dimensions:

  162" x 113" x 116"

• C-Axis Speed:

  50 ° sec

• C-Axis Travel:

  360 °

• B-Axis Speed:

  50 ° sec

• B-Axis Travel:

  120 ° to 35- °

• Max Thrust Z:

  3400 lbf

• Max Thrust X/Y:

  2750 lbf

• Max Cutting Rate:

  650 ipm

• Max Torque:

  90 ft-lbf

• Spindle Taper:

  40 CT

• Spindle Motor:

  30 HP

• Table Load:

  660 LBS

• Table Size:

  24.8" x 19.7"

• Rapid Rate (X/Y/Z):

  1,200 IPM

• Spindle Nose to Table (Min.- Max.):

  4" - 24"

• Z-Axis Travel:

  20"

• X-Axis Travel:

  30"

• B Axis Brake Torque :

  2000 ft-lbf

• B Axis Torque:

  2240 ft-lbf

• C Axis Max Torque:

  1854 ft-lbf

• C Axis Brake Torque:

  900 ft-lbf

• C Axis Max Part Swing :

  27"
