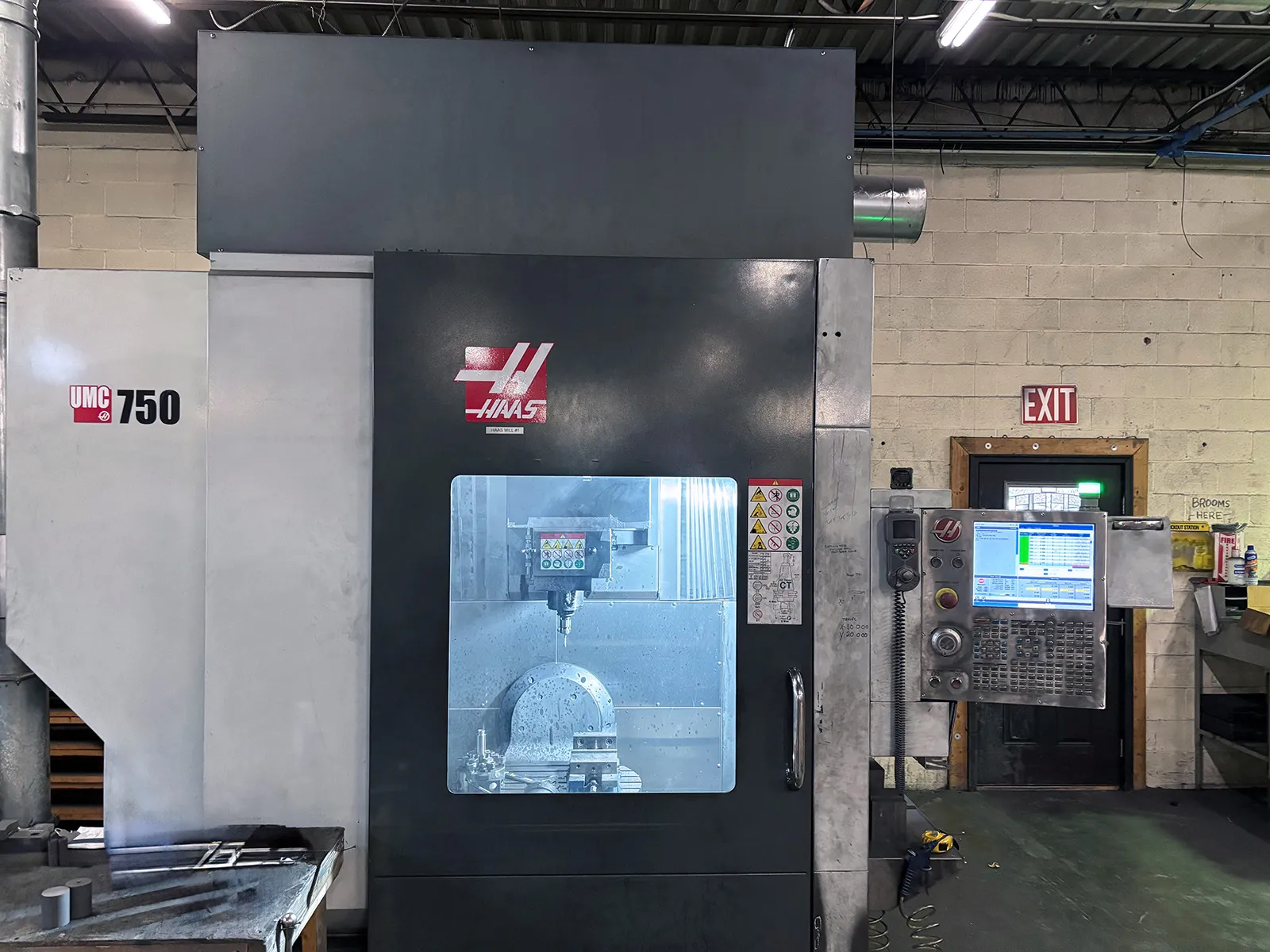

Haas UMC750 2016

machine specifications

• X Axis Travel:

  30"

• Y Axis Travel:

  20"

• Z Axis Travel:

  20"

• Rapid Rate X Axis:

  1,200 IPM

• Rapid Rate Y Axis:

  1,200 IPM

• Rapid Rate Z Axis:

  1,200 IPM

• Max Table Load:

  660 LBS

• Spindle Motor:

  30 HP

• Spindle Speed:

  8,000 RPM

• Spindle Taper:

  40

• Tool Changer:

  40 ATC

• Max Torque:

  90 ft-lbf

• Max Cutting:

  650 ipm

• Max Thrust X:

  2750 lbf

• Max thrust Y:

  2750 lbf

• Max Thrust Z:

  3400 lbf

• Travel 120 ° to 35- °:

• Travel 120 ° to 35- ° - Max Speed:

  50 ° sec

• Travel 120 ° to 35- ° - Max Torque:

  2240 ft-lbf

• Travel 120 ° to 35- ° - Brake Torque:

  2000 ft-lbf

• Travel 360 °:

• Travel 360 ° - Max Speed:

  50 ° sec

• Travel 360 ° - Max Torque:

  1854 ft-lbf

• Max Part Swing:

  27"

• Travel 360 ° - Brake Torque:

  900 ft-lbf

• Capacity:

  30+1

• Max Tool Length:

  12"

• Max Tool Weight:

  12 lb

• Tool-to-Tool:

  2.8 s

• Chip-to-Chip:

  3.6 s
