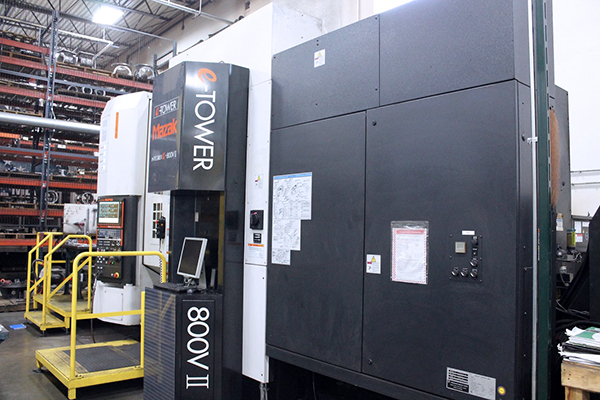

Name: Mazak Integrex e800V/5II 2007
Brand: Mazak
Availability: OutOfStock

Mazak Integrex e800V/5II 2007

MAKE: Mazak
YEAR: 2007
TYPE: 5 Axis Machining Center

MODEL: Integrex e800V/5II
CONTROL: Mazatrol Matrix
REF #:

Buy Similar / Same Machine

View available similar machines

machine specifications

Max Machining Diameter:

730 mm/ 28.7"

Max Workpiece Height:

1,000 mm/39.3"

X-Axis Travel:

630 mm/ 24.8"

Y-Axis Travel:

800 mm/ 31.4"

Z-Axis Travel:

900 mm /35.4"

Rapid Traverse Rate (X,Y,Z):

50 m/min

Milling Spindle Speed:

35 - 12,000 RPM

Main Spindle Motor:

18.5 kW

Max Torque:

724 Nm

Spindle Taper:

TOOL CAPACITY:

120 tool ATC

Max Tool Diameter:

95 mm / 3.7"

Max Tool Diameter w/ Adjacent Tools:

150 mm (pockets empty) /5.9"

Max Tool Length:

400 mm / 15.7"

Max Tool Weight:

12 kg

machine equipped with

Mazak Integrex e800V/5II 2007

Loading highlight...

MAKE: Mazak

YEAR: 2007

TYPE: 5 Axis Machining Center

MODEL: Integrex e800V/5II

CONTROL: Mazatrol Matrix

REF #:

Sell Similar Machine

Buy Similar / Same Machine

Activate Search Agent

machine specifications

Max Machining Diameter:

Max Workpiece Height:

X-Axis Travel:

Y-Axis Travel:

Z-Axis Travel:

Rapid Traverse Rate (X,Y,Z):

Milling Spindle Speed:

Main Spindle Motor:

Max Torque:

Spindle Taper:

TOOL CAPACITY:

Max Tool Diameter:

Max Tool Diameter w/ Adjacent Tools:

Max Tool Length:

Max Tool Weight:

machine equipped with

E-Tower

2-pallet changer

Safety cover for 2-pallet changer

Coolant System

Tool Eye (automatic)

AFC function

MAZAK Taping/boring Tornado in EIA/ISO

EIA/ISO function

Turn-aroundtime-feed rate G93

MAZACC-2D-Software

Additional workpiece-coordiantes-systems: 300 pieces

Polar (G122)

EIA/ISO-boring cycles

LAN-Interface

USB-Interface

Active Vibration Control

Intelligent Thermal Shield

Intelligent Safety Shield

MAZAK Voice Adviser

Virtual process

Front door interlock

Machine work light

Manuals
