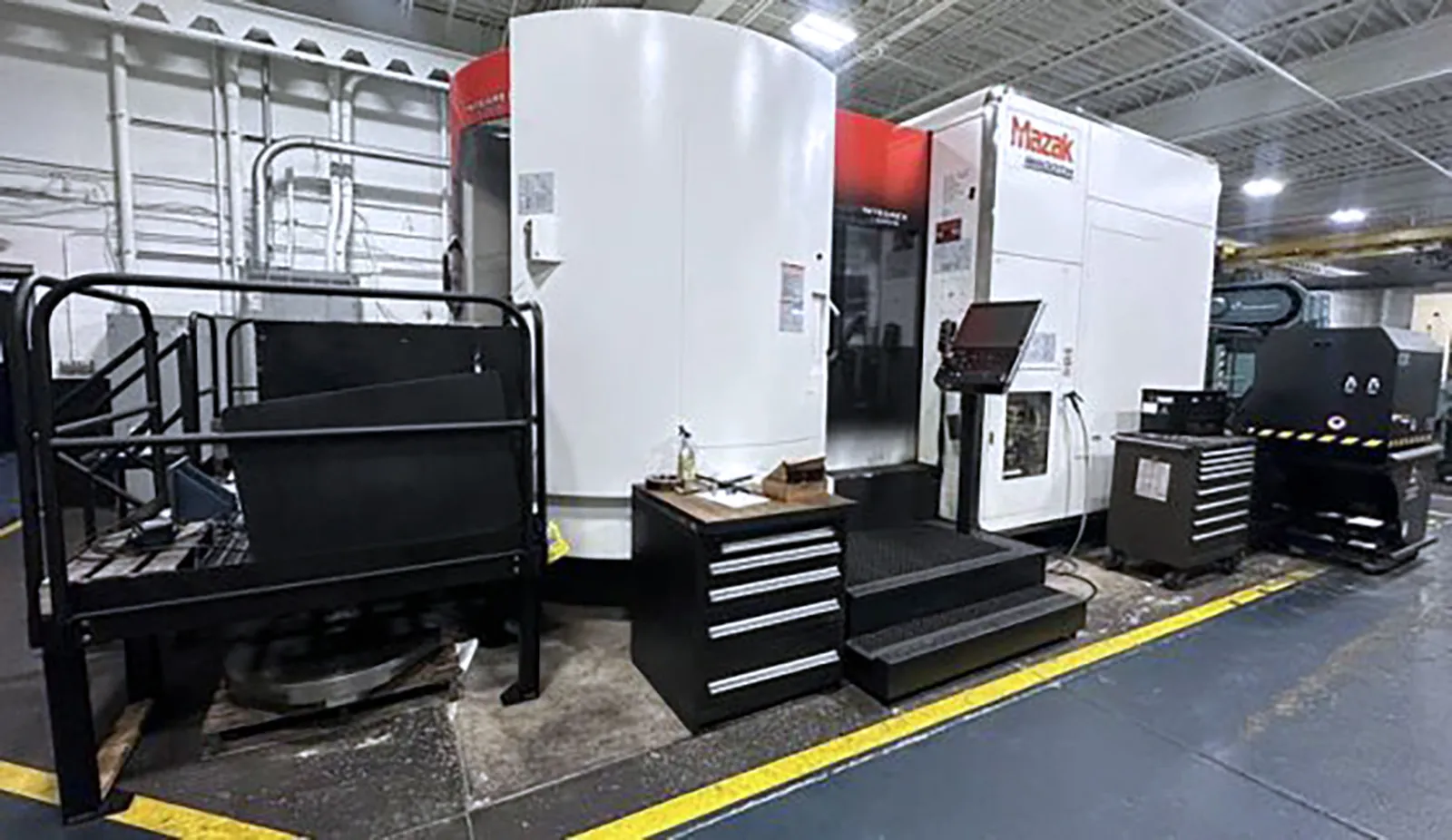

Mazak Integrex I-630V/6 2023

machine specifications

• Workpiece Capacity:

• Max. Workpiece size:

  41.34 in diameter × 39.37 in height

• Max. load (evenly distributed):

  3,307 lbs

• Spindle:

• Max. Spindle Speed:

  10,000 RPM

• Max. torque (40% ED):

  260 ft-lbs

• Max. torque (continuous):

  183 ft-lbs

• Spindle motor (40% ED):

  50 HP

• Spindle motor (continuous):

  40 HP

• TOOL CAPACITY:

• CHAIN MAGAZINE:

  120 TOOL CAT CHAIN MAGAZINE

• Max. Tool Diameter:

  4.92 in

• Max. tool diameter (without adjacent tool):

  9.84 in

• Max. tool length (from gauge line):

  19.69 in

• Max. tool weight:

  66 lbs

• Travels:

• X-Axis Travel:

  56.10 in

• Y-Axis Travel:

  41.34 in

• Z-Axis Travel:

  41.34 in

• Rotary Axis:

• B-axis range:

  -30° to +120°

• Rapid Traverse:

• Y-axis rapid:

  2,047 in/min

• Z-Axis Rapid:

  2,047 in/min

• LATHE SPINDLE(TABLE) SPEED:

  550 RPM

• KEEP BIG-PLUS DIMENSION SPINDLE:

  (CAT TOOLS ONLY)

• B-Axis:

  0.0001 DEGREE CONTOURING

• Milling Spindle Motor:

  37KW (50HP)

• Milling Spindle Speed:

  10,000 RPM

• ATC:

  43 TOOL CAT CHAIN MAGAZINE

• LATHE SPINDLE (TABLE) MOTOR:

  37KW (50HP) 1

• Table:

  0.0001 DEGREE INCREMENT CONTOURING 1

• MANUAL ROTATION OF 2 PALLET CHANGER LOADING STATION:
