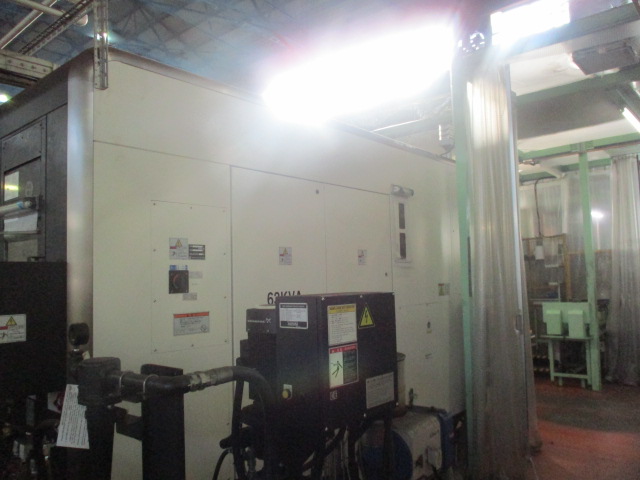

Mazak Variaxis i-600 2015

machine specifications

• Y-Axis Travel:

  910 mm / 35.8

• Spindle Motor:

  22 / 15 kw (30 / 20 HP) (40% ED / Cont. rating)

• Tool Change Time (Chip to Chip):

  3.4 sec

• Tool Storage Capacity:

  40 Tools

• Indexing Time:

  0.0001 deg (A-Axis)

• Simultaneously Controlled Axes:

  5

• Cutting Feedrate (X/Y/Z):

  56 m/min

• Rapid Traverse Rate Z-Axis:

  2205 IPM

• Rapid Traverse Rate X & Y Axes:

  2362 IPM

• Number of Pallets:

  2 APC

• Spindle Torque:

  252 N.m

• Spindle Taper:

  HSK 63A

• Spindle Speed:

  12,000 rpm

• Table Load Capacity:

  500 kg / 1102 lbs

• Max Workpiece Size:

  700 mm x 450 mm / 27.5" x 17.7"

• Table Size:

  600 mm x 500 mm / 23.2" x 19.68"

• Distance from Table Top to Spindle Nose:

  70 - 580 mm / 2.7" - 22.8"

• C-Axis Travel:

  360 deg

• A-Axis Travel:

  -120 deg +30 deg

• Z-Axis Travel:

  510 mm / 20"

• X-Axis Travel:

  510 mm / 20"

• Rapid Traverse Rate (A & C Axis):

  18000 deg/min

• Min. Indexing Increment (A-Axis & C-Axis):

  0.0001 deg
