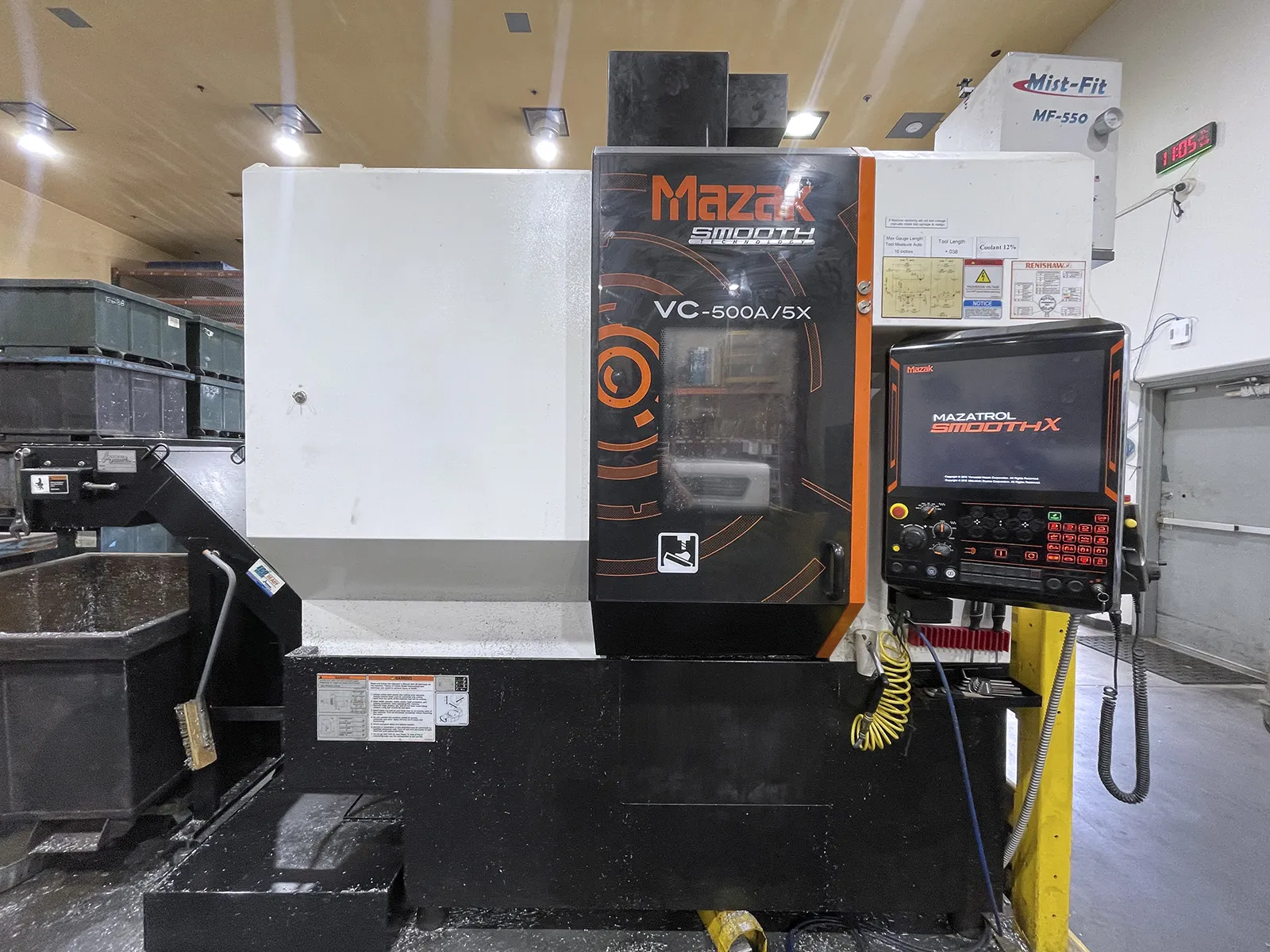

Mazak VC 500A 5X 2017

machine specifications

• X, Y, Z travel:

  19.7" / 17.7" / 17.7"

• A-Axis Range:

  +30° / −110°

• C-Axis Range:

  360° (continuous)

• Table Diameter:

  19.7" (500mm)

• Max Table Load:

  660 lbs (300 kg)

• Spindle Taper:

• Spindle speed rpm:

• Spindle Motor:

  25 hp (18.5 kW)

• ATC Capacity:

  30 tools (standard)

• Max Tool Diameter:

  3.94" (100mm)

• Max Tool Length:

  11.8" (300mm)

• Max Tool Weight:

  13.2 lbs (6 kg)

• Rapid Traverse (X/Y/Z):

  1,969 IPM (50 m/min)

• Rapid Traverse (A/C):

  75 RPM

• Positioning Accuracy:

  ±0.0001"
